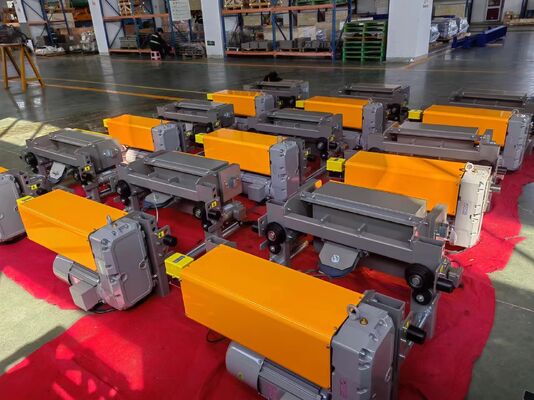

European Single Beam Electric Low Headroom Wire Rope Hoist Bridge Crane
European electric hoists are popular lifting equipment designed for efficient material handling in industrial environments. These compact and lightweight hoists are ideal for factories, warehouses, and manufacturing facilities, serving as reliable hoisting mechanisms when paired with overhead cranes and gantry cranes.
Product Overview
The hoist operates along a main beam track system, powered by an electric motor that drives the lifting mechanism. Key components include a high-performance reducer, drum set, lifting hook, and advanced electrical control system. The reducer optimizes motor speed while increasing torque, enabling the hoist to handle heavy lifting applications with precision.
Trolley Drive Unit
Features a trinity design combining high-performance motor, reduction gearbox, and brake system. This compact configuration delivers excellent performance with low energy consumption and minimal noise levels.
- Variable frequency control for smooth operation and reduced impact
- Asbestos-free brake disc with service life up to one million cycles
- No-wear design for maintenance-free operation and extended service life
- Eco-friendly design with low energy consumption
High-Performance Wire Rope
Imported wire rope with tensile strength up to 2160 N/mm², featuring galvanized surface treatment for superior corrosion resistance. The rope's excellent flexibility ensures optimal wear resistance and extended service life.
Electrical Control Cabinet
- Rational design for convenient maintenance and reduced operating costs
- Professional-grade electrical components for safe and reliable operation
- Multiple safety protection devices for enhanced equipment security
- IP55 protection grade for reliable performance in industrial environments
- Clear identification for easy troubleshooting and maintenance
Key Specifications
| ITEM |
VALUE |
| Applicable Industries |
Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Construction works, Energy & Mining |
| After Warranty Service |
Video technical support, Online support, Spare parts, Field maintenance and repair service |
| Place of Origin |
China |
| Power Source |
Electric |
| Sling Type |
Wire Rope/chain/winch/european |
| Warranty |
1 Year |
| Machinery Test Report |
Provided |
| Video outgoing-inspection |
Provided |
| Warranty of core components |
1 Year |
| Core Components |
Motor, Bearing, Gear, Gearbox |
Product Advantages
- Compact structure, light weight, low wheel pressure and high overall cost performance
- Save operating costs with low-carbon and environmentally friendly operation
- Selected high-quality accessories for safe, reliable, and durable performance
- Precise positioning and efficient operation for enhanced production efficiency
- Safe and reliable with optional operation monitoring and maintenance-free design
- Modular design with multiple options to meet various working conditions
Technical Specifications
| Load (t) |
Class |
Lifting Height (m) |
Lifting Speed (m/s) |
Rope Reeving |
Traveling Speed (m/s) |
Wheel Load |
Weight (kg) |
| 1.6 |
M6 |
6, 9, 12 |
1.6/10 |
2/1 |
2~20 |
6.1, 6.2, 6.3 |
300, 335, 370 |
| 2.5 |
M6 |
6, 9, 12 |
0.8/5.0 |
4/1 |
2~20 |
9.1, 9.2, 9.3 |
315, 350, 385 |
| 3.2 |
M5 |
6, 9, 12 |
0.8/5.0 |
4/1 |
2~20 |
11.5, 11.6, 11.7 |
335, 370, 405 |
| 6.3 |
M5 |
6, 9, 12 |
0.8/5.0 |
4/1 |
2~20 |
22, 22.1, 22.2 |
400, 450, 500 |
| 8 |
M6 |
6, 9, 12 |
0.8/5.0 |
4/1 |
2~20 |
28, 28.1, 28.2 |
580, 610, 640 |
| 10 |
M5 |
6, 9, 12 |
0.8/5.0 |
4/1 |
2~20 |
34.7, 34.8, 34.9 |
580, 610, 640 |
| 10 |
M6 |
6, 9, 12 |
0.66/4.0 |
4/1 |
2~20 |
34.7, 34.8, 34.9 |
650, 690, 730 |
| 12.5 |
M5 |
6, 9, 12 |
0.66/4.0 |
4/1 |
2~20 |
43.3, 43.4, 43.5 |
660, 700, 740 |
| 3.2 |
M5 |
6, 9, 12 |
0.8/5.0 |
4/1 |
2~20 |
11.9 |
510, 525, 540 |
| 6.3 |
M5 |
6, 9, 12 |
0.8/5.0 |
4/1 |
2~20 |
20.9 |
632, 652, 672 |
| 10 |
M5 |
6, 9, 12 |
0.8/5.0 |
4/1 |
2~20 |
30.0 |
871, 896, 921 |
| 12.5 |
M5 |
6, 9, 12 |
0.66/4.0 |
4/1 |
2~20 |
40.5 |
890, 915, 940 |
| 16 |
M5 |
6, 9, 12 |
0.66/4.0 |
4/1 |
2~20 |
59.4, 59.7, 60.0 |
1314, 1348, 1381 |
| 20 |
M5 |
6, 9, 12 |
0.5/3.4 |
4/1 |
2~20 |
59.5 |
1718, 1766, 1814 |
| 32 |
M5 |
6, 9, 12 |
0.8/3.3 |
6/1 |
2~20 |
95, 104 |
2826, 2920, 3091, 3199 |
Main Components
Company Overview
Additional Product Line
Company Certifications
Frequently Asked Questions
What types of cranes do you offer?
As a manufacturer with over 15 years' experience, we provide a comprehensive range of cranes, including gantry cranes, overhead cranes, electric hoists, jib cranes, and customized lifting solutions tailored to specific industry needs, such as for steel, precast concrete, and container handling.
How do I know which crane is suitable for my project?
Our team of experts is here to help! By understanding your lifting capacity requirements, operational environment, and usage frequency, we can recommend the ideal crane solution for your project. Contact us for a free consultation.
How to choose the right crane?
The following factors need to be considered when choosing a crane: Load capacity, Lifting height, Working environment, Frequency of operation.
What maintenance services do you offer?
We offer comprehensive maintenance plans, including preventive maintenance, inspection, repair and spare parts replacement, to keep your crane running efficiently and safely. Our service team is available for scheduled and emergency support.
Can you accept OEM?
Yes, of course. We accept any logo and can customize material, color, size, packing, brand, delivery and other specifications.
What are your delivery and installation timelines?
Delivery and installation timelines vary based on the type and customization of the crane. Generally, standard cranes can be delivered within 6-8 weeks, while customized solutions may require additional time. We aim to provide accurate timelines upfront to ensure smooth project planning.
Do you offer installation services?
Yes, we provide comprehensive training programs for crane operators, including safety training, maintenance guidelines, and operational best practices to ensure your team is fully prepared to operate the crane safely and efficiently.
