| Product Name: | European Model Lifting Electric Wire Rope Crane Hoist | Type: | Double Girder/single Girder |
|---|---|---|---|
| Motor: | ABM Motor | Contactor: | Schneider Brand |
| Application: | Double Girder Overhead Crane | Lifting Capacity: | 3.2t - 80t |
| Lifting Height: | 6m/9m/12m/15m/18m | Protection Class: | IP55 |
European Model Lifting Electric Wire Rope Crane Hoist M5 Traveling
Brief overview
Compared with the traditional Foot Mounted Hoist, the structure of European type hoist is more reasonable and the technology is more advanced. So this type of hoists is more and more widely used and will be the development tendency. In order to stand out in the group of electric wire rope hoist suppliers, we constantly improve the technology to produce high level hoist to be aligned with the world.
Advantages
1.Modular design, can be flexibly combined into different lifting tonnage lifting speed and work hierarchy
2.European standard hoist trolley, It employs motor of hoisting mechanism and reducer imported from Germany.
3.The integrated and compact design of hoisting motor, reducer, reel and limit switch saves space for the user.
4.Standardization, user-friendly design in improving operating performance while greatly reducing maintenance costs
5.Smooth design helical gear surface hardening and grinding process, drive more efficient
Technical parameters
| Capacity ton | Lifting height m | Lifting speed m/min | Lifting motor kw | Traveling speed m/min | Traveling motor kw | Lifting System FEM/ISO | Traveling System FEM/ISO |
Trolley Rail Gauge mm | ||
| 3.2t | 6/9/12/15/18 | 5/0.8 | 3.2/0.42 | 5/20 | 0.25x2 | 2M | M5 | 2M | M5 | 1000-1700 |
| 5t | 6/9/12/15/18 | 5/0.8 | 6.1/1 | 5/20 | 0.37x2 | 2M | M5 | 2M | M5 | 1000-1700 |
| 6.3t | 6/9/12/15/18 | 5/0.8 | 6.1/1 | 5/20 | 0.37x2 | 2M | M5 | 2M | M5 | 1000-1700 |
| 8t | 6/9/12/15/18 | 5/0.8 | 9.5/1.5 | 5/20 | 0.37x2 | 2M | M5 | 2M | M5 | 1000-2000 |
| 10t | 6/9/12/15/18 | 5/0.8 | 9.5/1.5 | 5/20 | 0.37x2 | 2M | M5 | 2M | M5 | 1000-2000 |
| 12.5t | 6/9/12/15/18 | 5/0.8 | 12.5/2 | 5/20 | 0.55x2 | 1AM | M4 | 2M | M5 | 1000-2000 |
| 16t | 6/9/12/15/18 | 4/0.6 | 16/2.6 | 5/20 | 0.55x2 | 2M | M5 | 2M | M5 | 1400-2400 |
| 20t | 6/9/12/15/18 | 4/0.6 | 16/2.6 | 5/20 | 0.55x2 | 1Am | M4 | 2M | M5 | 1400-2400 |
| 25t | 6/9/12/15/18 | 3.3/0.8 | 20/5 | 5/20 | 0.75x2 | 3M | M6 | 2M | M5 | 1700-3100 |
| 32t | 6/9/12/15/18 | 3.3/0.8 | 20/5 | 5/20 | 1.1x2 | 2M | M5 | 2M | M5 | 1700-3100 |
| 40t | 6/9/12/15/18 | 0-4 | 38 | 5/20 | 1.5x2 | 1Am | M4 | 2M | M5 | 1700-3100 |
| 50t | 6/9/12/15/18 | 0-3 | 38 | 5/20 | 1.5x2 | 2M | M5 | 2M | M5 | 1700-3100 |
| 50t | 6/9/12/15/18 | 0-3 | 38 | 5/20 | 1.5x2 | 2M | M5 | 2M | M5 | 2000-4200 |

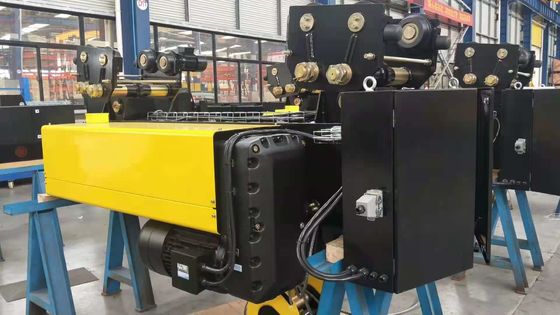

Product show
