Single Girder Electric Wire Rope Hoist with Double Speed Compact Structure and Low Headroom Design

MOQ: 1 pcs
Price: USD negotiable per unit
Standard Packaging: plywood case
Delivery Period: 10 -15 working days
Payment Method: L/C,T/T,Western Union
Supply Capacity: 500 units per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JCYC
Certification
CE&ISO
Model Number
SHSL
Maximum Capacity:
Single Girder Electric Wire Rope Hoist
Standard Lifting Height:
6/9/12/15/18M
Lifting Speed:
0.5/5m/min
Work Duty:
M5
Travelling Speed:
5/20m/min
Highlight:

electric lifting hoist

,

stainless steel wire rope hoist

Product Description
Single Girder Electric Wire Rope Hoist Double Speed Compact Structure Low Headroom
SH-Type Under-Electric Wire Rope Hoist is a modern product developed by combining and applying standard German technologies. It features a compact rectangular frame structure with a drum made of seamless steel pipe. The planetary gearbox, electric motor, and control box are arranged in a straight-line configuration. The hoist includes overload protection, overheating protection, and phase relay protection. Its modular design enables seamless integration with frequency inverters, automatic weighing systems, and automatic detection systems.
Competitive Advantages
  • Low noise operation with safe and reliable traveling
  • Available in single speed, double speed, or variable speed configurations
  • Smooth starting and stopping performance
  • Light wheel pressure design
  • Convenient maintenance access
  • Excellent corrosion and fatigue resistance
  • Integrated overload protection device
Applications
SH-Electric Hoist is suitable for various industries including heavy duty manufacturing, light industry operations, concrete plants, coal mining, cement production, and hydro power facilities.
Enhanced Security and Reliability Features
  • Brake and overload protection ensure safety under all conditions with no load slippage
  • IP54 rated hoist frame and brake provide optimal corrosion resistance in harsh environments
  • Up and down limit switches ensure safe operation at top and bottom hook positions
  • Low-voltage protection ensures reliable operation
  • Efficient high lifting speed with smooth low lifting speed for precise positioning
Technical Specifications
Capacity (t) Lifting Height (m) Lifting Speed (m/min) Lifting Motor (kw) Travelling Speed (m/min) Travelling Motor (kw) Lifting System (FEM/ISO) Travelling System (FEM/ISO) I-Beam Width (mm)
26/9/12/15/185/0.83.2/0.455/200.373M/M62M/M5150-300
3.26/9/12/15/185/0.83.2/0.455/200.372M/M52M/M5150-300
56/9/12/15/185/0.86.1/15/200.372M/M52M/M5200-350
6.36/9/12/15/185/0.86.1/15/200.371Am/M42M/M5200-350
86/9/12/15/185/0.89.5/1.55/200.753M/M62M/M5200-410
106/9/12/15/185/0.89.5/1.55/200.752M/M52M/M5200-410
12.56/9/12/15/184/0.612.5/25/200.751Am/M42M/M5200-410
166/9/12/15/184/0.616/2.65/200.75*22M/M52M/M5300-450
206/9/12/15/184/0.616/2.65/200.75*21Am/M42M/M5300-450
820/24/28/32/368/1.312.5/25/200.752M/M52M/M5200-410
1020/24/28/32/368/1.316/2.65/200.752M/M52M/M5200-410
12.520/24/28/32/366.3/116/2.65/200.751Am/M42M/M5200-410
Product Detail

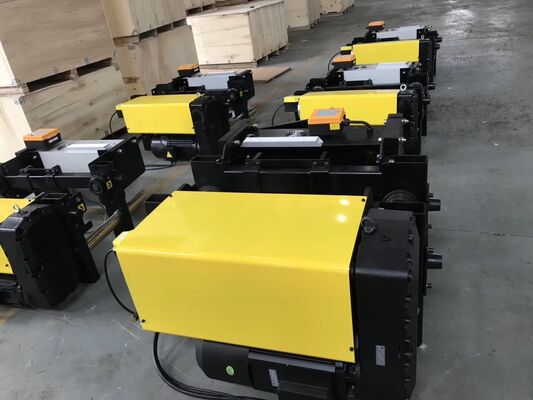

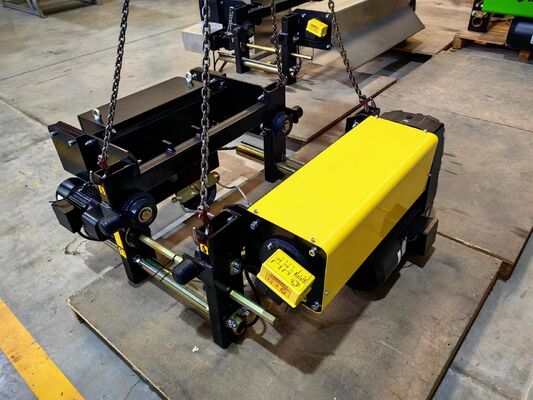

Single Girder Electric Wire Rope Hoist with Double Speed Compact Structure and Low Headroom Design 0

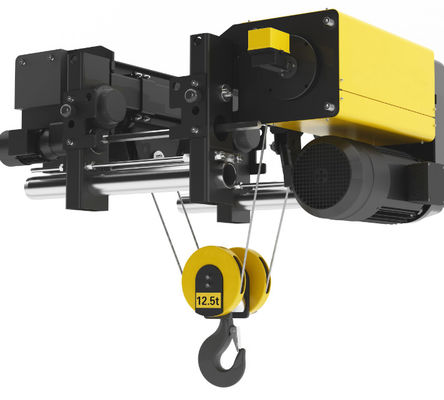

SH-Type Electric Wire Rope Hoist Detailed View
Exhibition

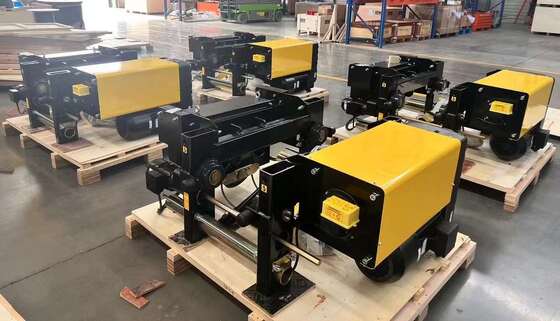

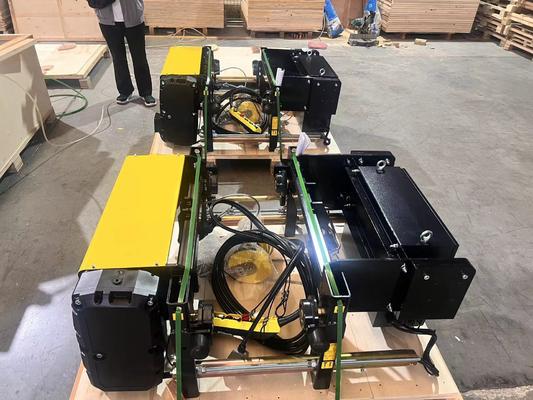

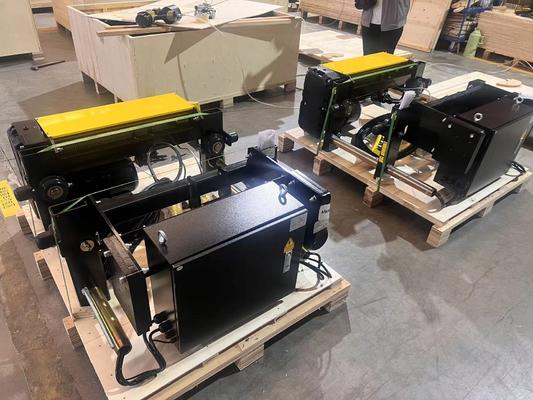

Single Girder Electric Wire Rope Hoist with Double Speed Compact Structure and Low Headroom Design 1
SH-Type Electric Wire Rope Hoist Exhibition Display
