Product Details:
Payment & Shipping Terms:
|
| Name: | CD1 Hoist Electric Wire Rope Hoist 1ton Lifting Height 6m With 380V | Capacity: | 1Ton |
|---|---|---|---|
| Lifting Speed: | 8(0.8)m/min | Girder: | Single Girder / Double Girder |
| Rail Type: | I-Type, H-Type Rail | Travel Speed: | 20/30 M/min |
| High Light: | 1t Lifting Electric Wire Rope Hoist,Electric Wire Rope Hoist 8m/Min,Harbours Wire Rope Hoist |
||
CD1 Hoist Electric Wire Rope Hoist 1ton Lifting Height 6m with 380V
Brief overview
The electric wire rope hoist CD1/MD1 model have features of compact structure, light weight, small size and easy operation. It can be
used not only on the overhead rails, but also be used in conjunction with many types of electric or manual cranes such as the
single-grider crane, the double-grider crane, the cantilever crane and the gantry cranes etc. The eletric hoist model MD1 with double
lifting speed which should be used in case where the hoist model CD1 can not meet the requirements for fine abjustments during
recision operations.
Applications
1, extensively used in factories, workshops, warehouses and many other occasions to hoist materials directly,
2, installed on the straight or curve I-steel beam of Single-girder Cranes to lift goods.
3, It can also be used together with Electric Hoist Double-beam, gantry crane and slewing cranes to hoist different items and so on.
4, It has so many appllication usages just for its advantages, such as: tight structure, convenient operation, light weight, wide common use and so on.
Main characteristics
* Model CD1, MD1 electric wire rope hoist is a small sized lifting equipment, which can be mounted on single beam, bridge, gantry and arm crane.
Advantages
• CE approved.
• Lightweight robust construction.
• Low effort to lift maximum load.
• Fully forged hooks.
• High grade alloy load chain.
• Durable baked enamel paint protection.
• Overload protection device available upon request.
• Excellent after-sale serve.

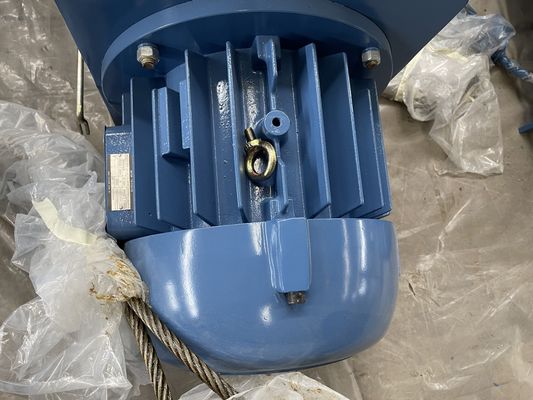

> Motor: Hoist Motor is a taper type rotor motor with braking; it is one of the best quality motors, which has bigg er torque, so it can be adapted to moving frequently, the Maximum torque is 2.4-3 times than the rated torque.
> Gear Box: Hoist Gear Box has specially treated gears for high wear resistance. Each Geared Shaft assembly is supported on ball or roller bearings, to ensure smooth, low-friction operation.
> Wire Rope: Hoisting ropes comply with the exporting standards. The leading rope taken by the drum does not slip sideways when slack. The factor of safety, on the nominal breaking strength of the rope is six.
> Rope Drum: Grooved hoist Drum, seamless pipe of adequate length to be wounded in one layer and to provid eproper
support for the rope to minimize abrasive wear is provided. Drum Shaft resolves on Ball Bearings for ensuring smooth running.
> Electric apparatus controlling system: Model CD1 and MD1 hoist is composed of the contactor box, controlling switch, cut-off limiter, the working voltage of controlling switch is 380V, 36V or 24V(safety voltage).
> Rope Guide: Rope Guide is in two halves, ensuring easy accessibility. It encircles the drum completely so that the rope may not uncoil even when the Hoist is in unloaded condition. The rope guides of our company is thicken and dilated, so that it is not easy to be damaged.
> Hook:The Hook Block is tested to 150 % of full load before assembly.
Technical configuration
| Model | Lifting Capacity (t) | Lifting Height (m) | Lifting Speed (m/min) | Running Speed (m/min) | Wire Rope Type | Dia.of Wire Rope (mm) | I Beam Track Type | Working Duty | Lifting Motor | ||
| Power(kw) | R.P.M ( r/min) | Power Supply | |||||||||
| CD1-0.25 | 0.25 | 3-9 | 8 | 20 | 6*19 | 3.6 | 16-22b | M3 | 0.4 | 1380 | 220-440V 50/60HZ 3Phase |
| CD1-0.5 | 0.5 | 6-12 | 8 | 20 | 6*37+1 | 4.8 | 16-28b | M3 | 0.8 | 1380 | |
| CD1-1 | 1 | 6-30 | 8 | 20 | 6*37+1 | 7.4 | 16-28b | M3 | 1.5 | 1380 | |
| CD1-2 | 2 | 6-30 | 8 | 20 | 6*37+1 | 11 | 20a-32c | M3 | 3 | 1380 | |
| CD1-3 | 3 | 6-30 | 8 | 20 | 6*37+1 | 13 | 20a-32c | M3 | 4.5 | 1380 | |
| CD1-5 | 5 | 6-30 | 8 | 20 | 6*37+1 | 15 | 25a-63c | M3 | 7.5 | 1380 | |
| CD1-10 | 10 | 6-30 | 7 | 20 | 6*37+1 | 15 | 25a-63c | M3 | 13 | 1400 | |
| CD1-16 | 16 | 6-30 | 3.5 | 20 | 6*37+1 | 15 | 45a-63c | M2 | 13 | 1400 | |
| CD1-20 | 20 | 6-30 | 3.5 | 20 | 6*37+1 | 20 | 50a-63c | M2 | 13 | 1400 | |
Notes
A. The standard lifting height is 6, 9, 12, 18, 24, 30 and 36 meters.

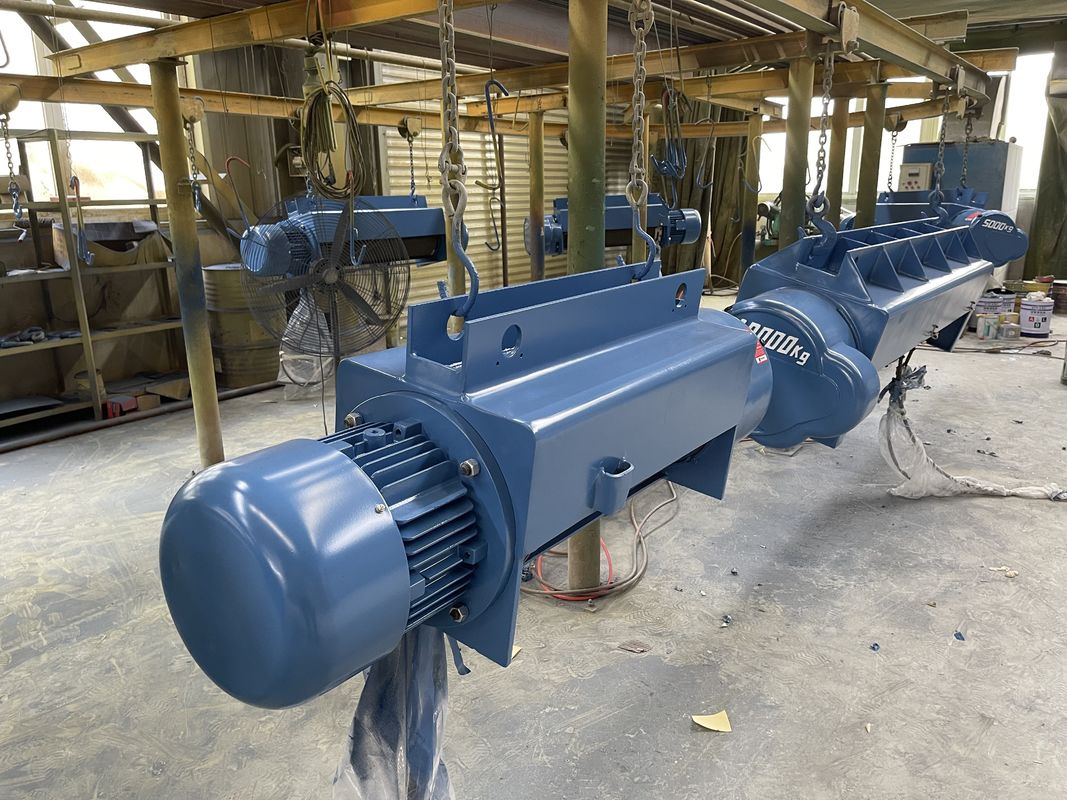

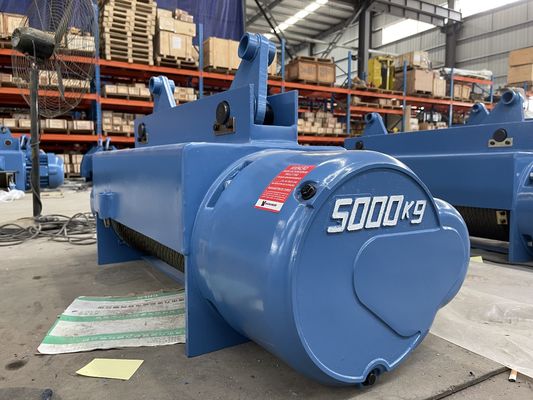

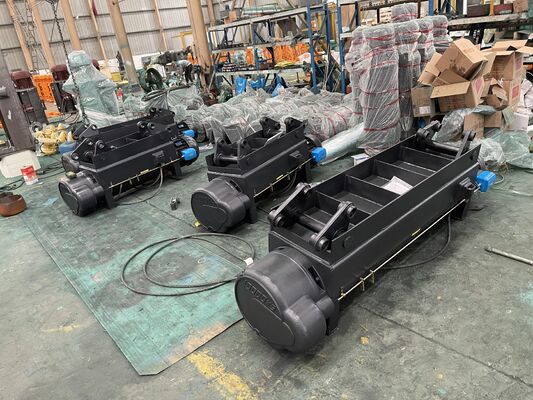

Product show
