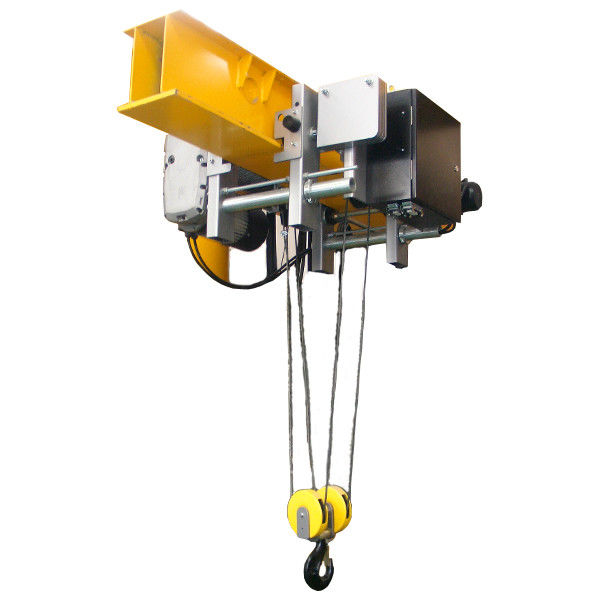

Integrated IP55 80t Low Headroom Electric Hoist Double Girder

Integrated IP55 80t Low Headroom Electric Hoist Double Girder
Integrated IP55 80t Low Headroom Electric Hoist Double Girder Integrated IP55 80t Low Headroom Electric Hoist Double Girder Integrated IP55 80t Low Headroom Electric Hoist Double Girder

Large Image :  Integrated IP55 80t Low Headroom Electric Hoist Double Girder

Product Details:
Place of Origin: China
Brand Name: JCYC/OEM
Certification: CE & ISO
Model Number: JCYC-SHSL-A/B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export plywood cases or at your request
Delivery Time: 15 to 20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month
Detailed Product Description
Product Name: European Electric Wire Rope Hoist Type: Double Girder/single Girder
Motor: European ABM Motor Contactor: Schneider Brand
Application: Double Girder Overhead Crane Lifting Capacity: 3.2t - 80t
Lifting Height: 6m/9m/12m/15m/18m Protection Class: IP55
High Light:

80t Low Headroom Electric Hoist

,

IP55 Low Headroom Electric Hoist

,

Integrated Low Headroom Electric Hoist

Safety Device Low Headroom Inspection 1 2 3 5 ton European Electric Wire Rope Hoist





Brief overview



Compared with the traditional Foot Mounted Hoist, the structure of European type hoist is more reasonable and the technology is more advanced. So this type of hoists is more and more widely used and will be the development tendency. In order to stand out in the group of electric wire rope hoist suppliers, we constantly improve the technology to produce high level hoist to be aligned with the world.



Advantages



1. Modular design, can be flexibly combined into different lifting tonnage lifting speed and work hierarchy

2. European standard hoist trolley, It employs motor of hoisting mechanism and reducer imported from Germany.

3. The integrated and compact design of hoisting motor, reducer, reel and limit switch saves space for the user.

4. Standardization, user-friendly design in improving operating performance while greatly reducing maintenance costs

5.Smooth design helical gear surface hardening and grinding process, drive more efficient



Technical parameters



Capacity ton Lifting height m Lifting speed m/min Lifting motor kw Traveling speed m/min Traveling motor kw Lifting System FEM/ISO Traveling System
FEM/ISO
Trolley Rail Gauge mm
3.2t 6/9/12/15/18 5/0.8 3.2/0.42 5/20 0.25x2 2M M5 2M M5 1000-1700
5t 6/9/12/15/18 5/0.8 6.1/1 5/20 0.37x2 2M M5 2M M5 1000-1700
6.3t 6/9/12/15/18 5/0.8 6.1/1 5/20 0.37x2 2M M5 2M M5 1000-1700
8t 6/9/12/15/18 5/0.8 9.5/1.5 5/20 0.37x2 2M M5 2M M5 1000-2000
10t 6/9/12/15/18 5/0.8 9.5/1.5 5/20 0.37x2 2M M5 2M M5 1000-2000
12.5t 6/9/12/15/18 5/0.8 12.5/2 5/20 0.55x2 1AM M4 2M M5 1000-2000
16t 6/9/12/15/18 4/0.6 16/2.6 5/20 0.55x2 2M M5 2M M5 1400-2400
20t 6/9/12/15/18 4/0.6 16/2.6 5/20 0.55x2 1Am M4 2M M5 1400-2400
25t 6/9/12/15/18 3.3/0.8 20/5 5/20 0.75x2 3M M6 2M M5 1700-3100
32t 6/9/12/15/18 3.3/0.8 20/5 5/20 1.1x2 2M M5 2M M5 1700-3100
40t 6/9/12/15/18 0-4 38 5/20 1.5x2 1Am M4 2M M5 1700-3100
50t 6/9/12/15/18 0-3 38 5/20 1.5x2 2M M5 2M M5 1700-3100
50t 6/9/12/15/18 0-3 38 5/20 1.5x2 2M M5 2M M5 2000-4200

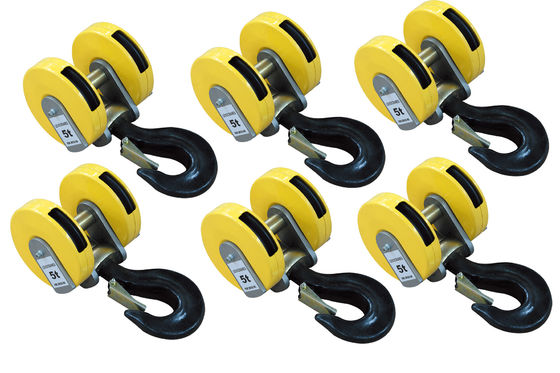

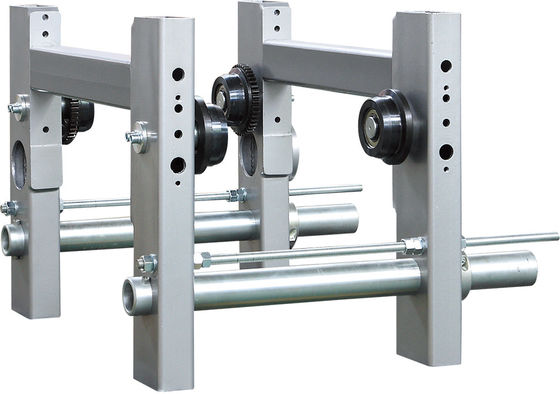

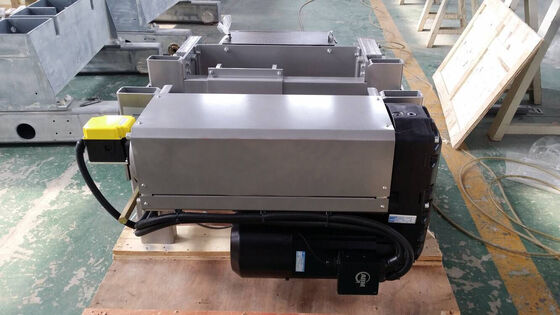

Product show

Integrated IP55 80t Low Headroom Electric Hoist Double Girder 0

Integrated IP55 80t Low Headroom Electric Hoist Double Girder 1Integrated IP55 80t Low Headroom Electric Hoist Double Girder 2Integrated IP55 80t Low Headroom Electric Hoist Double Girder 3
