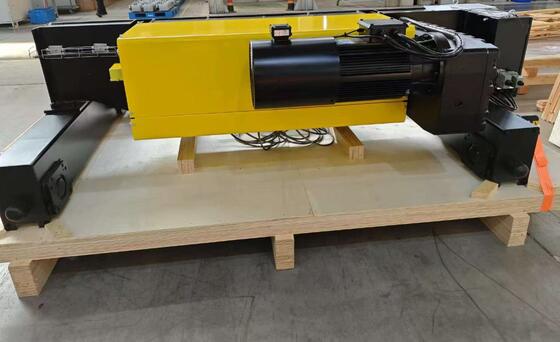

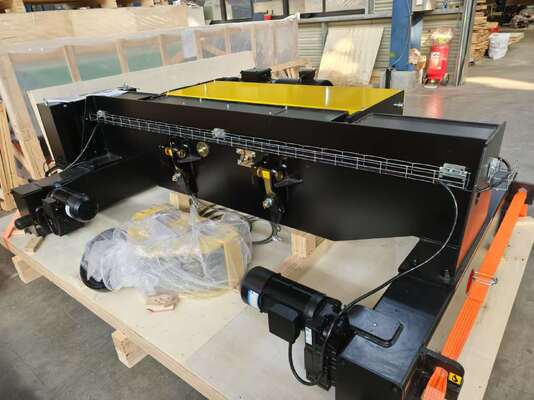

Low Headroom 5 Ton 10 Ton 15 Ton 20 Ton Remote Control European Electric Wire Rope Hoist Workshop Using

MOQ: 1Set
Price: USD5000-USD13000
Standard Packaging: Plywood box
Delivery Period: 4 weeks
Payment Method: L/C,T/T,Western Union
Supply Capacity: 10sets per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
JCYC
Certification
ISO9001,CE
Model Number
SHSL
Product Name:
Low Headroom 5 Ton 10 Ton 15 Ton 20 Ton Remote Control European Electric Wire Rope Hoist
Lifting Capacity:
5-20T
Lifting Height:
9-30m
Lifting Speed:
Inventer Control+Pendant Control
Type:
Double Girder
Running Speed:
0-20m/min
ISO:
M5 M7
Highlight:

low headroom electric wire rope hoist

,

remote control European wire rope hoist

,

workshop electric wire rope hoist

Product Description
Low Headroom Remote Control European Electric Wire Rope Hoist
This low headroom European electric wire rope hoist is designed for workshop applications with capacities ranging from 5 to 20 tons. The innovative structural design breaks through traditional heavy models, achieving lightweight construction while maintaining load-bearing stability.
Product Design Features
Main Beam and End Beam Construction
Features box-shaped thin-walled welded structures using Q355B material, with web thickness reduced by 15%-30% compared to traditional cranes. Through finite element analysis, stress distribution is optimized to reduce overall weight by 20%-40% while ensuring torsional and bending resistance. End beams use standardized profile splicing with high-strength bolt connections for easier transportation, assembly, and maintenance.
Hoisting Mechanism
Utilizes integrated European-style wire rope hoists with compact structure (30%-50% smaller than traditional winch mechanisms). The lightweight trolley frame features low wheel pressure design, reducing wheel pressure by 20%-30% and lowering load requirements for factory infrastructure.
Key Specifications
Applicable Industries Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Construction works, Energy & Mining
After Warranty Service Video technical support, Online support, Spare parts, Field maintenance and repair service
Place of Origin China
Power Source Electric
Sling Type Wire Rope/chain/winch/european
Warranty 1 Year
Core Components Motor, Bearing, Gear, Gearbox
Product Advantages
  • Compact structure, light weight, low wheel pressure and high overall cost performance
  • Save operating costs and be low-carbon and environmentally friendly
  • Selected high-quality accessories, safe and reliable, durable
  • Precise positioning, efficient operation, and enhanced production efficiency
  • Safe and reliable, operation monitoring (optional), maintenance-free
  • Modular design with multiple options to meet various working conditions
Technical Specifications
Capacity (t) Working Class Lifting Height (m) Lifting Speed (m/min) Running Velocity (m/min) Rope Reeving
10 M5 6 5/0.8 2-20 4/1
16 M5 9 4/0.67 2-20 4/1
32 M5 8 2.7/0.45 2-20 6/1
50 M5 6 0.53/3.2 2/20 12/2
Main Components
Low Headroom 5 Ton 10 Ton 15 Ton 20 Ton Remote Control European Electric Wire Rope Hoist Workshop Using 0 Low Headroom 5 Ton 10 Ton 15 Ton 20 Ton Remote Control European Electric Wire Rope Hoist Workshop Using 1
Company Overview
Low Headroom 5 Ton 10 Ton 15 Ton 20 Ton Remote Control European Electric Wire Rope Hoist Workshop Using 2
Related Products
Low Headroom 5 Ton 10 Ton 15 Ton 20 Ton Remote Control European Electric Wire Rope Hoist Workshop Using 3 Low Headroom 5 Ton 10 Ton 15 Ton 20 Ton Remote Control European Electric Wire Rope Hoist Workshop Using 4 Low Headroom 5 Ton 10 Ton 15 Ton 20 Ton Remote Control European Electric Wire Rope Hoist Workshop Using 5 Low Headroom 5 Ton 10 Ton 15 Ton 20 Ton Remote Control European Electric Wire Rope Hoist Workshop Using 6
Company Certifications
Low Headroom 5 Ton 10 Ton 15 Ton 20 Ton Remote Control European Electric Wire Rope Hoist Workshop Using 7
Frequently Asked Questions
What types of cranes do you offer?
As a manufacturer with over 15 years' experience, we provide a range of cranes including gantry cranes, overhead cranes, electric hoists, jib cranes, and customized lifting solutions tailored to specific industry needs.
How do I know which crane is suitable for my project?
Our team of experts is here to help! By understanding your lifting capacity requirements, operational environment, and usage frequency, we can recommend the ideal crane solution for your project. Contact us for a free consultation.
How to choose the right crane?
The following factors need to be considered when choosing a crane: Load capacity, Lifting height, Working environment, Frequency of operation.
What maintenance services do you offer?
We offer comprehensive maintenance plans including preventive maintenance, inspection, repair and spare parts replacement. Our service team is available for scheduled and emergency support.
Can you accept OEM?
Yes, of course. Any logo is acceptable. Material, Color, Size, Packing, Brand, Delivery etc.
What are your delivery and installation timelines?
Delivery and installation timelines vary based on the type and customization of the crane. Generally, standard cranes can be delivered within 6-8 weeks, while customized solutions may require additional time.
Do you offer installation services?
Yes, we provide comprehensive training programs for crane operators including safety training, maintenance guidelines, and operational best practices.
