Electric Wire Rope Hoist with 1t-30t Capacity Standard 6/9/12/18m Lift Height and 0.8/8 m/min Lift Speed

Electric Wire Rope Hoist with 1t-30t Capacity Standard 6/9/12/18m Lift Height and 0.8/8 m/min Lift Speed
Electric Wire Rope Hoist with 1t-30t Capacity Standard 6/9/12/18m Lift Height and 0.8/8 m/min Lift Speed
video play

Large Image :  Electric Wire Rope Hoist with 1t-30t Capacity Standard 6/9/12/18m Lift Height and 0.8/8 m/min Lift Speed

Product Details:
Place of Origin: China
Brand Name: JCYC
Certification: CE ISO9001 manufacturing licence
Model Number: CD1/MD1
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: $500-$10000
Packaging Details: Plywood Case
Delivery Time: 15 working day
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Name: Electric Wire Rope Hoist Capacity: 1t-30t
Lift Height: Standard 6/9/12/18m Or At Request Usage: Construction Lifting
Lift Speed: 0.8/8 M/min Travel Speed: 20 M/min
Voltage: 380V/50HZ
Highlight:

Construction Lifting Electric Wire Rope Hoist

,

micro electric rope hoist

,

wire rope hoist crane

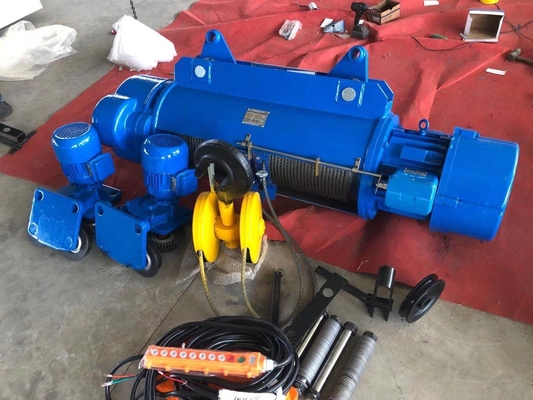

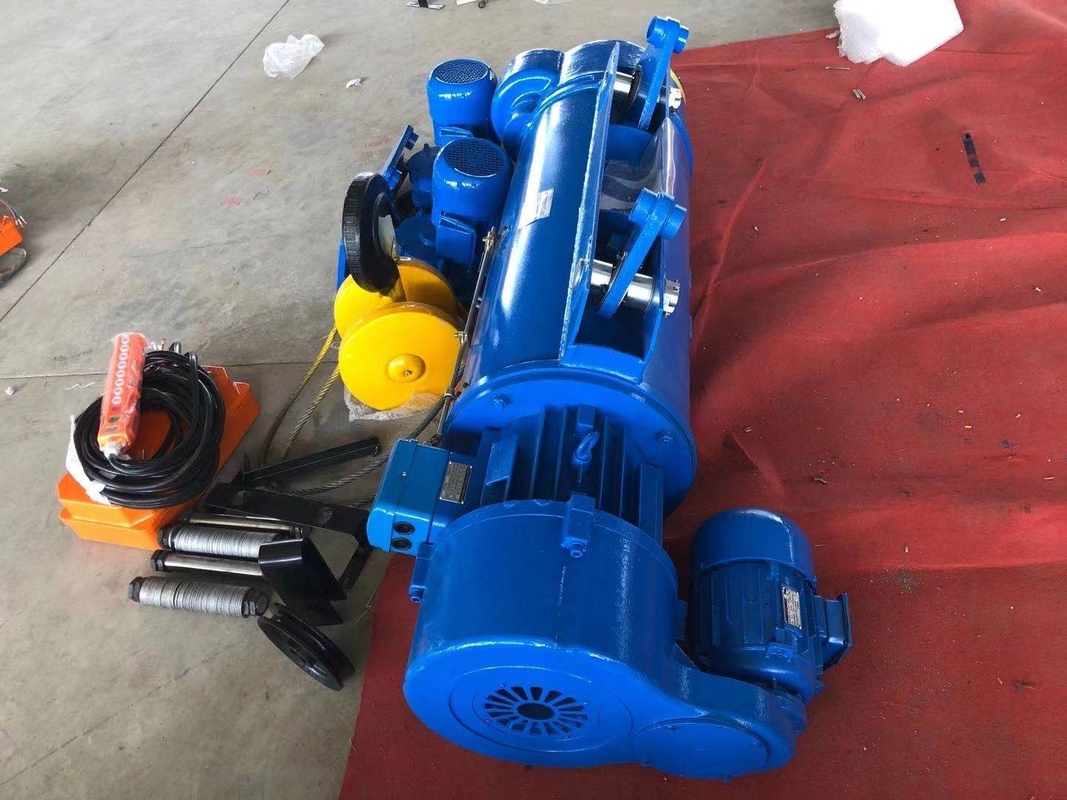

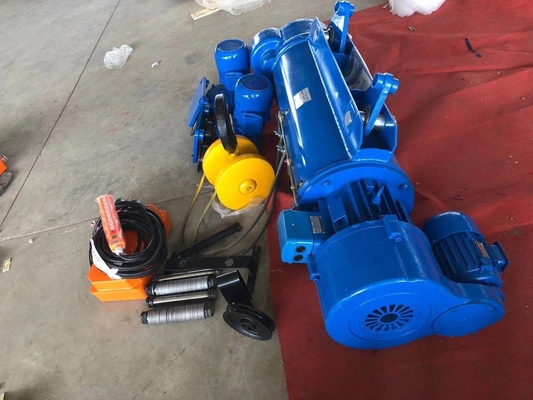

Construction Lifting Micro Electric Wire Rope Hoist Crane 10Ton 60HZ 3 Phase
Our CD1/MD1 Type electric wire rope hoist offers capacities ranging from 0.25t to 32t, featuring high working efficiency, fast lifting speeds, durability, and easy maintenance. This industrial-grade hoist is suitable for various applications including construction, railways, docks, warehouses, and mining operations.
Technical Specifications
CD1 Series Specifications
Model Capacity (t) Lifting Speed (m/min) Running Speed (m/min) Wire Rope Type Rope Diameter (mm) Power (kw) R.P.M (r/min) Power Supply
CD1-0.25 0.25 8 20 6*19 3.6 0.4 1380 220-440V 50/60HZ 3 Phase
CD1-0.5 0.5 8 20 6*37+1 4.8 0.8 1380
CD1-1 1 8 20 6*37+1 7.4 1.5 1380
CD1-2 2 8 20 6*37+1 11 3 1380
CD1-3 3 8 20 6*37+1 13 4.5 1380
CD1-5 5 8 20 6*37+1 15 7.5 1380
CD1-10 10 7 20 6*37+1 15 13 1380
CD1-16 16 3.5 20 6*37+1 15 13 1380
CD1-20 20 3.5 20 6*37+1 20 13 1380
MD1 Series Specifications
Model Capacity (t) Lifting Speed (m/min) Running Speed (m/min) Wire Rope Type Rope Diameter (mm) Power (kw) R.P.M (r/min) Power Supply
MD1-0.25 0.25 8/0.8 20 6*19 3.6 0.4 1380 220-440V 50/60HZ 3 Phase
MD1-0.5 0.5 8/0.8 20 6*37+1 4.8 0.2/0.8 1380
MD1-1 1 8/0.8 20 6*37+1 7.4 0.2/1.5 1380
MD1-2 2 8/0.8 20 6*37+1 11 0.4/3 1380
MD1-3 3 8/0.8 20 6*37+1 13 0.4/4.5 1380
MD1-5 5 8/0.8 20 6*37+1 15 0.8/7.5 1380
MD1-10 10 7/0.7 20 6*37+1 15 1.5/13 1380
MD1-16 16 3.5/0.35 20 6*37+1 15 1.5/13 1380
MD1-20 20 3.5/0.35 20 6*37+1 20 1.5/13 1380
Key Features
  • Can be modified for use as a winch
  • Available with single or double lifting speeds, with multi-speed options possible using frequency inverters
  • Compatible with H-type or I-type rails for low-headroom applications
  • Recommended rope reeving options: 2/1, 4/2 or 4/1
  • Standard rail gauges: 1200mm, 1500mm, 1800mm, 2100mm, and 2300mm (custom options available)
  • Standard traveling speed of 20m/min (30m/min or 45m/min available upon request)
  • CD1 models feature single speed for standard applications
  • MD1 models offer dual speeds (normal and low) for precision operations like machine tool maintenance
Product Images

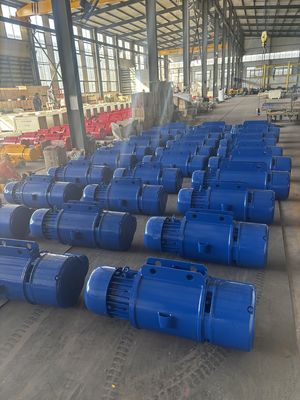

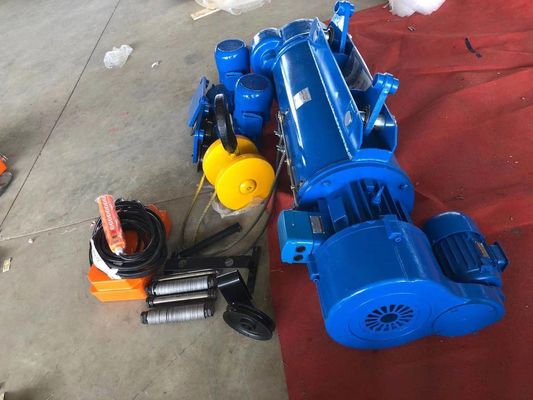

Electric Wire Rope Hoist with 1t-30t Capacity Standard 6/9/12/18m Lift Height and 0.8/8 m/min Lift Speed 0 Electric Wire Rope Hoist with 1t-30t Capacity Standard 6/9/12/18m Lift Height and 0.8/8 m/min Lift Speed 1 Electric Wire Rope Hoist with 1t-30t Capacity Standard 6/9/12/18m Lift Height and 0.8/8 m/min Lift Speed 2 Electric Wire Rope Hoist with 1t-30t Capacity Standard 6/9/12/18m Lift Height and 0.8/8 m/min Lift Speed 3 Electric Wire Rope Hoist with 1t-30t Capacity Standard 6/9/12/18m Lift Height and 0.8/8 m/min Lift Speed 4 Electric Wire Rope Hoist with 1t-30t Capacity Standard 6/9/12/18m Lift Height and 0.8/8 m/min Lift Speed 5
