Product Details:
Payment & Shipping Terms:
|
| Product Name: | Double Girder Electric Wire Rope Hoist Single Speed 5t 9m With Remote Control | Capacity: | 5T |
|---|---|---|---|
| Lifting Height: | 9M | Application: | Construction |
| Lifting Speed: | 8m/min | Customised: | Yes |

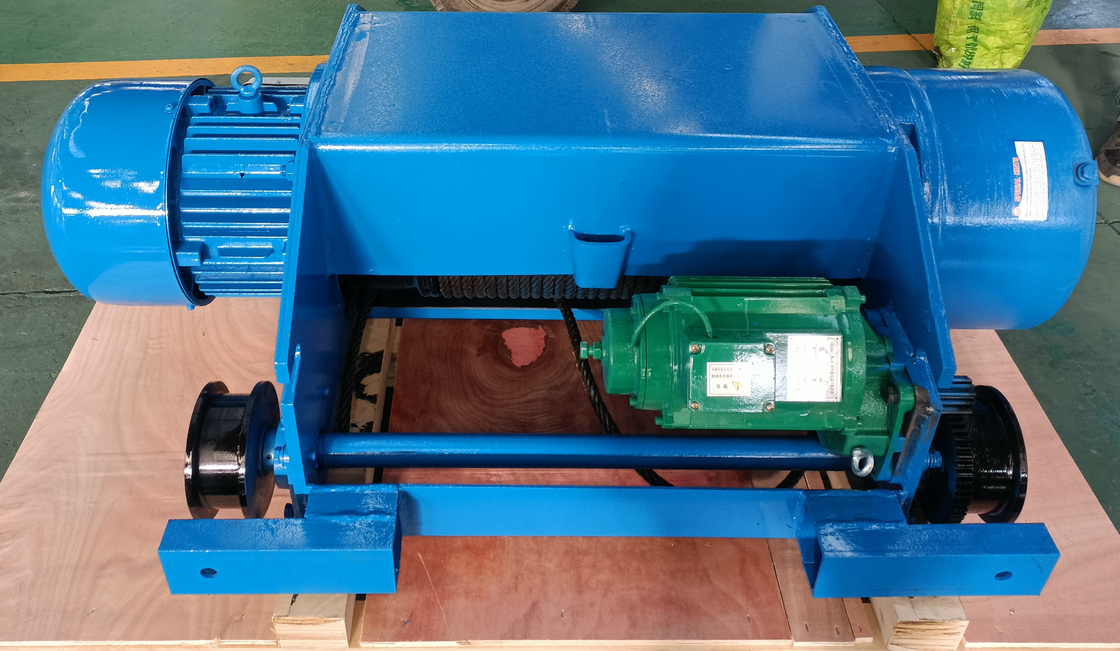

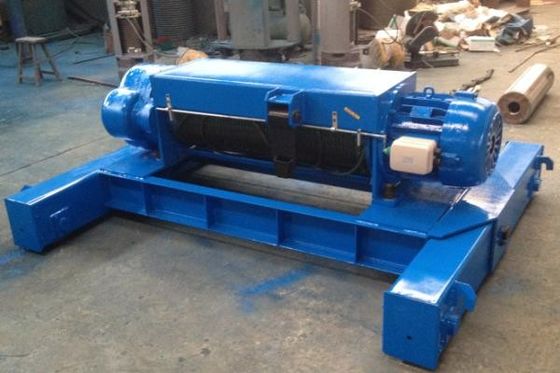

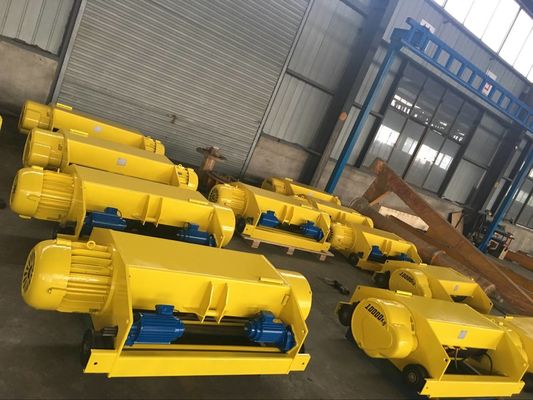

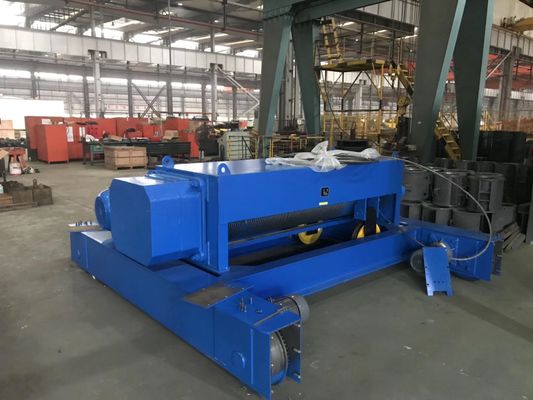

Double Girder Electric Wire Rope Hoist Single Speed 5t 9m With Remote Control
Double Girder Electric Wire Rope Hoist Single Speed 5t 9m With Remote Control can be used as a double-girder crane and travel on a double-track crane, and the gauge can be customized arbitrarily. The ends on both sides are equipped with walking wheels and are erected on double tracks, which can travel forward, backward, left and right.
Application places:
1. Widely application: factories, workshops, warehouses and many other occasions to hoist materials directly.
2. Easily install: installed on the straight or curve I-steel beam of Single-girder Cranes to lift goods.
3. Various matching usage: it can also be used together with Electric Hoist Double-beam, gantry crane and slewing cranes to hoist different items and so on.
High configuration:
Motor: Motors are equipped which has safety limiter in both up and down directions. And the motor is Conic rotor brake motor, in order to adapt to the frequent direct start in the intermittent work.
Reducers: Its reducers with hard gear surface and adopt 3 level helical gears to slow down the speed, so it will have long life and high mechanical efficiency.
Main electric parts: adopts top quality and famous brand: Siemens brand.
Gear Box: Hoist Gear Box has specially treated gears for high wear resistance. Each Geared Shaft assembly is supported on ball or roller bearings, to ensure smooth, low-friction operation.
Rope Guide: Rope Guide is in two halves, ensuring easy accessibility. It encircles the Drum completely so that the rope may not uncoil even when the Hoist is in unloaded condition. The rope guides of our company is thickened and dilated, so that it is not easy to be damaged.
Hook: The hook is closed type with high safety; it wrought with special high quality steel.
Rope drum: It made of cast iron and seamless steel tube, its shell is welded with steel plate. The drum device is the central part of hoist.
| Model | Lifting Capacity (t) | Lifting Height (m) | Lifting Speed (m/min) | Running Speed (m/min) | Wire Rope Type | Dia.of Wire Rope (mm) | I Beam Track Type | Working Duty | Lifting Motor | Running Motor | ||||
| Power(kw) | R.P.M ( r/min) | Power Supply | Power(kw) | R.P.M ( r/min) | Power Supply | |||||||||
| CD1-0.25 | 0.25 | 3-9 | 8 | 20 | 6*19 | 3.6 | 16-22b | M3 | 0.4 | 1380 | 220-440V 50/60HZ 3Phase | 0.06 | 1400 | 220-440V 50/60HZ 3Phase |
| CD1-0.5 | 0.5 | 6-12 | 8 | 20 | 6*37+1 | 4.8 | 16-28b | M3 | 0.8 | 1380 | 0.2 | 1380 | ||
| CD1-1 | 1 | 6-30 | 8 | 20 | 6*37+1 | 7.4 | 16-28b | M3 | 1.5 | 1380 | 0.2 | 1380 | ||
| CD1-2 | 2 | 6-30 | 8 | 20 | 6*37+1 | 11 | 20a-32c | M3 | 3 | 1380 | 0.4 | 1380 | ||
| CD1-3 | 3 | 6-30 | 8 | 20 | 6*37+1 | 13 | 20a-32c | M3 | 4.5 | 1380 | 0.4 | 1380 | ||
| CD1-5 | 5 | 6-30 | 8 | 20 | 6*37+1 | 15 | 25a-63c | M3 | 7.5 | 1380 | 0.8 | 1380 | ||
| CD1-10 | 10 | 6-30 | 7 | 20 | 6*37+1 | 15 | 25a-63c | M3 | 13 | 1400 | 0.8*2 | 1380 | ||
| CD1-16 | 16 | 6-30 | 3.5 | 20 | 6*37+1 | 15 | 45a-63c | M2 | 13 | 1400 | 0.8*2 | 1380 | ||
| CD1-20 | 20 | 6-30 | 3.5 | 20 | 6*37+1 | 20 | 50a-63c | M2 | 13 | 1400 | 0.8*2 | 1380 | ||
| Model | Lifting Capacity (t) | Lifting Height (m) | Lifting Speed (m/min) | Running Speed (m/min) | Wire Rope Type | Dia.of Wire Rope (mm) | I Beam Track Type | Working Duty | Lifting Motor | Running Motor | ||||
| Power(kw) | R.P.M ( r/min) | Power Supply | Power(kw) | R.P.M ( r/min) | Power Supply | |||||||||
| MD1-0.25 | 0.25 | 3-9 | 8/0.8 | 20 | 6*19 | 3.6 | 16-22b | M3 | 0.4 | 1380 | 220-440V 50/60HZ 3Phase | 0.06 | 1400 | 220-440V 50/60HZ 3Phase |
| MD1-0.5 | 0.5 | 6-12 | 8/0.8 | 20 | 6*37+1 | 4.8 | 16-28b | M3 | 0.2/0.8 | 1380 | 0.2 | 1380 | ||
| MD1-1 | 1 | 6-30 | 8/0.8 | 20 | 6*37+1 | 7.4 | 16-28b | M3 | 0.2/1.5 | 1380 | 0.2 | 1380 | ||
| MD1-2 | 2 | 6-30 | 8/0.8 | 20 | 6*37+1 | 11 | 20a-32c | M3 | 0.4/3.0 | 1380 | 0.4 | 1380 | ||
| MD1-3 | 3 | 6-30 | 8/0.8 | 20 | 6*37+1 | 13 | 20a-32c | M3 | 0.4/4.5 | 1380 | 0.4 | 1380 | ||
| MD1-5 | 5 | 6-30 | 8/0.8 | 20 | 6*37+1 | 15 | 25a-63c | M3 | 0.8/7.5 | 1380 | 0.8 | 1380 | ||
| MD1-10 | 10 | 6-30 | 7/0.7 | 20 | 6*37+1 | 15 | 25a-63c | M3 | 1.5/13 | 1400 | 0.8*2 | 1380 | ||
| MD1-16 | 16 | 6-30 | 3.5/0.35 | 20 | 6*37+1 | 15 | 45a-63c | M2 | 1.5/13 | 1400 | 0.8*2 | 1380 | ||
| MD1-20 | 20 | 6-30 | 3.5/0.35 | 20 | 6*37+1 | 20 | 50a-63c | M2 | 1.5/13 | 1400 | 0.8*2 | 1380 | ||
