Mechanical Double Beam 5t Overhead Travelling Crane

Mechanical Double Beam 5t Overhead Travelling Crane
Mechanical Double Beam 5t Overhead Travelling Crane Mechanical Double Beam 5t Overhead Travelling Crane

Large Image :  Mechanical Double Beam 5t Overhead Travelling Crane

Product Details:
Place of Origin: CHINA
Brand Name: JCYC / OEM
Certification: CE & ISO
Model Number: Single & Double Girder Bridge Crane
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Ngotiable
Packaging Details: Standard export packing
Delivery Time: 25 working day
Payment Terms: Western Union, L/C, T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 800 pcs per month
Detailed Product Description
Span: 7.5 Meters - 36 Meters Color: As Per Request
Capacity: 5 Tons - 150 Tons Material: Steel
Girder: Double & Single Type: Dual-beam Bridge Crane
High Light:

Double Beam Overhead Travelling Crane

,

5t Overhead Travelling Crane

,

Dual Beam Bridge Crane

5 tons to 150 tons Single & Double Girder Bridge Crane , Double Beam Bridge Crane for Workshop





1. Product Profile:



Double Girder / Beam Overhead Bridge Crane, Dual-beam bridge crane



The double beam crane is usually composed of three parts: mechanical, electrical and metal structures. The external image is a single span flat plate bridge which supported on two parallel overhead tracks.



The double beam bridge crane is an important tool and equipment to realize mechanization and automation of production process in modern industrial production and lifting transportation. Therefore, it has been widely used in indoor and outdoor departments and places such as industrial and mining enterprises, iron and steel chemical industry, railway traffic, port wharf, logistics turnover and so on.

.



2. Advantages:



2.1. The double beam crane is usually composed of three parts: mechanical, electrical and metal structures.



2.2. The external image is a single span flat plate bridge which supported on two parallel overhead tracks.



2.3. Divided into three kinds of operating rooms: open type, closed type and heat preservation.



2.4. Operating room platform entrance section has side face, end face, top surface three kinds.



2.5. Divided into two kinds: indoor and outdoor type. The highest, minimum temperature and type of power supply of working environment should be indicated when ordering.



2.6. Added overload limiter, large screen display and various protection devices, further increasing using security.



2.7. Generally used in air operation. It is different from other ground crane. Its air operation is a separate small operation room under the crane, while other ground crane operator is the operator with remote control.



2.8. "H" means height added for cart buffer.



3. Features:



3.1. Light weight, heavy load and strong wind resistance.



3.2. Unique steel pin connection, not only firm and reliable, but also save time.



3.3. Flexible rod leg, its turn can be dismantled into single piece, convenient transportation.



3.4. Minimum installation capacity, solved power consumption difficulty in field construction.



3.5. Effective and optimization design ensures safety, stability and intensity.



3.6. Low gravity, small wheel pressure and space saving.



3.7. Flexible driving, extensive adaption, excellent frequency conversion control, stable operation, low maintenance and easy replacement.



3.8. High strength, good rigidity, light weight and excellent material ensure stability and convenient operation.



3.9. All parts are highly cost effective and standardized, with high accuracy, reliable quality and stable performance, also easy to install and freely combine.



3.10. Excellent performance, easy and smooth operations meet various usages.



4.Parameter:



Capacity

(t)

5~10t, 16/3.2~50/10t, 75/20~100/20t, 100/32t, 125/30~250/50t, 300/40t, 350/75t, 400/80t, 600/150t

Lifting Height

(mm)

6~22

Span

(m)

10.5~31.5m, 13~31m
Operating Mechanism Trolley Rail Distance 1400/1700/2000/2400/2700/3100
Running Speed(m/min) 0~20
Job Level M5
Wheel Diameter(mm) ∮160 ∮220

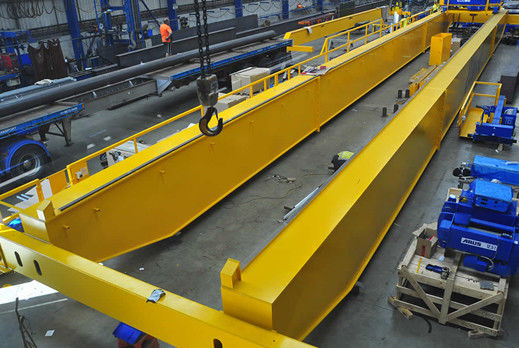

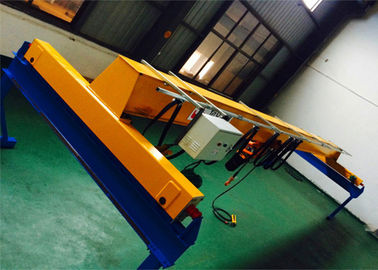

5. Photo:



Mechanical Double Beam 5t Overhead Travelling Crane 0
