10t Travelling Double Girder Overhead Crane A6 Duty With 35m Span

10t Travelling Double Girder Overhead Crane A6 Duty With 35m Span
10t Travelling Double Girder Overhead Crane A6 Duty With 35m Span

Large Image :  10t Travelling Double Girder Overhead Crane A6 Duty With 35m Span

Product Details:
Place of Origin: CHINA
Brand Name: JCYC / OEM
Certification: CE ISO9001
Model Number: Single Girder Bridge Crane
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Ngotiable
Packaging Details: Standard export packing
Delivery Time: 20 working day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 800 sets per month
Detailed Product Description
Product Name: European Electric Single Beam Overhead Bridge Cranes Span: 3-35m
Working Duty: A5, A6 Capacity: 1 Ton To 50 Ton
Lifting Height: 1-35m Design Standard: FEM, DIN
Color: At Request
High Light:

10t Travelling Double Girder Overhead Crane

,

35m Span Double Girder Overhead Crane

,

Double Girder Overhead Crane A6 Duty

Single Double Beam10t Overhead Travelling Crane European Type





1. Product Feature:



European single beam overhead crane is a light duty overhead crane designed as European crane standards, eg: FEM, DIN. It has the advantage of smaller dimension, lighter self weight, higher lifting height and so on. Lifting capacity from 1 ton to 20 ton. European type single girder overhead crane has the minimum limiting distance from hook to the wall, lower headroom and more effective working space, etc. It will save more money on the initial construction investment, long term heating fee, air conditioning and other maintenance fee.



2. Technical Information(example):



Single Girder Overhead Crane(10ton)

Span(m) 7.5 10.5 13.5 16.5 19.5 22.5 25.5
Working duty A5
Lifting height(m) 6, 9, 12
Lifting speed(m/min) 0.8/5
Trolley weight(kg) 640
Total weight(kg) 2696 3200 4091 5307 6466 7694 9309
Max Wheel Load(KN) 51.85 54.44 57.7 60.83 64 67.26 71.36
Track P30
Main dimension(mm) 7.5 10.5 13.5 16.5 19.5 22.5 25.5
Rail top to main top(H) 908 908 1008 1208 1308 1358 1482
Rail top to hook centre(h) 465 465 465 365 365 365 345
Hook left limitation(C1) 675 675 675 675 675 675 695
Hook right limitation(C2) 1020
Track center to end beam lateral(A) 100
Wheel base(W) 2000 2000 2000 2500 3000 3000 3500
Crane width(B) 2674 2674 2674 3174 3674 3674 4174

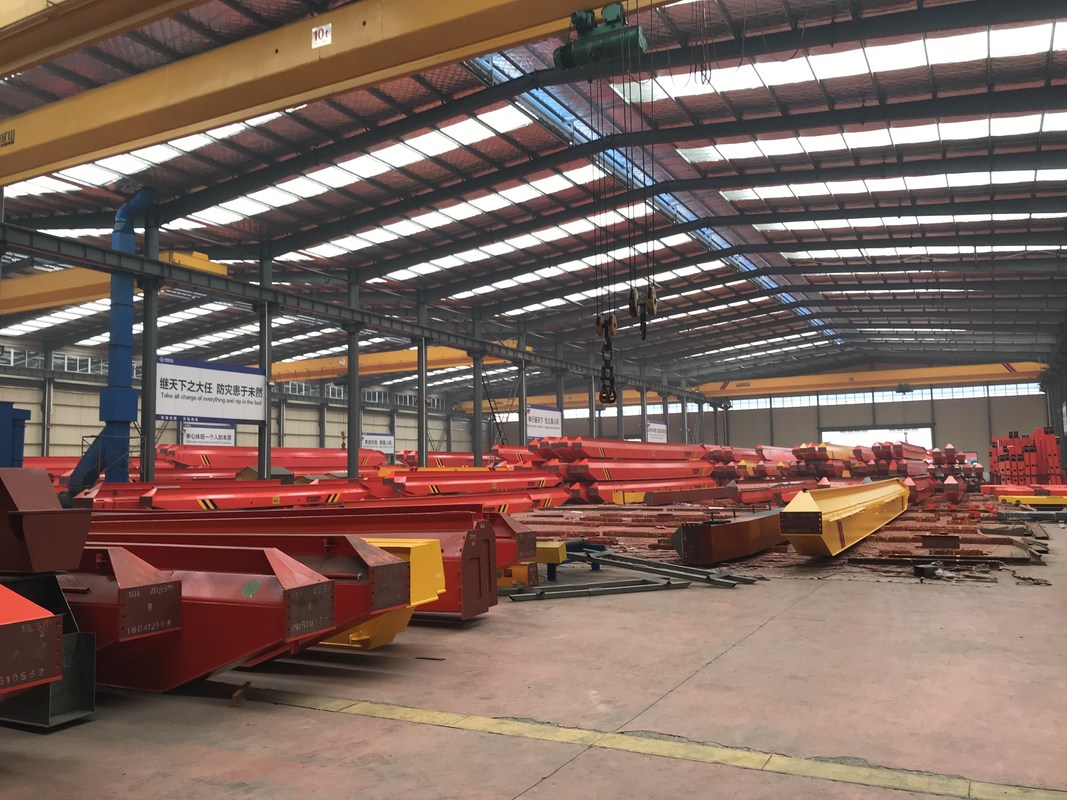

3. Product show:



10t Travelling Double Girder Overhead Crane A6 Duty With 35m Span 0

10t Travelling Double Girder Overhead Crane A6 Duty With 35m Span 1



4. Questions before quotation:



1. capacity?

2. The span of main girder?

3. The lifting height(ground to the main girder)?

4. Single speed or double speed for lifting?

5. Pendant control or remote control or cabin?

6. Power supply?(volt./3p/hz)

7. Traveling length?

7. Any other special requirements?

That will be much helpful if you can supply drawing to us.
