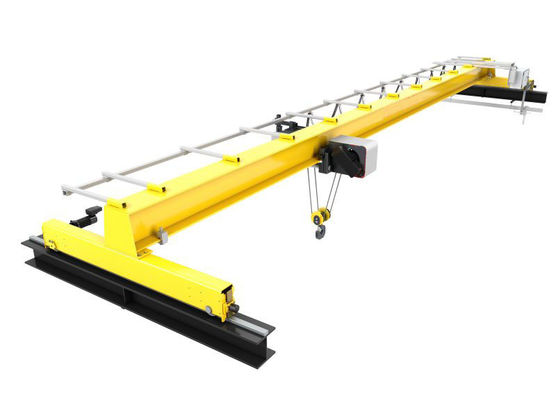

10t 20ton Travelling Single Girder Overhead Crane A6 Duty With 10-25m Span
  • name
  • name
  • name
  • name

10t 20ton Travelling Single Girder Overhead Crane A6 Duty With 10-25m Span

MOQ: 1
Price: $1998-$8000/pc
Standard Packaging: WOODEN CASE AND OTHERS
Delivery Period: 7-15 workdays
Payment Method: T/T,,Western Union,L/C
Supply Capacity: 1000pcs/year
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JCYC
Certification
CE, ISO
Model Number
LB
Product Name:
Single Girder Overhead Crane
Crane Feature:
Tight Dimension, Low Building Headroom, Light Dead Weight
Work Duty:
A5 A6
Girder Type:
Single Girder
Working Temperature:
-20~40℃
Power Supply:
380/415/440V
Span:
7.5-25.5m
Max Capacity:
100ton
Highlight:

A6 Duty Single Girder Overhead Crane

,

Travelling Single Girder Overhead Crane

Product Description
10t-20ton Travelling Single Girder Overhead Crane A6 Duty
Electric Single-Girder Overhead Cranes

Electric single-girder overhead cranes can be equipped with various wire rope hoists and chain hoists to meet diverse operational requirements, significantly enhancing productivity. The advanced structural optimization of the main beam provides exceptional stability with minimal dead weight, delivering precise positioning and reliable braking performance. Ideal for light load applications and shorter span requirements.

Key Advantages & Safety Features
  • Lightweight and compact design: Simple structure with low self-weight, reducing building load requirements
  • Cost-effective: Lower manufacturing, installation, and maintenance costs compared to double girder cranes
  • Easy installation and maintenance: Modular design enables quick installation and convenient servicing
  • Smooth and stable operation: Equipped with high-quality electric hoists for precise lifting and traveling
  • Flexible configuration: Customizable for different spans, lifting heights, and capacity requirements
  • Energy efficient: Reduced power consumption through optimized structural and drive design
  • Wide application range: Suitable for factories, warehouses, logistics centers, and light industrial environments
  • Safety and reliability: Integrated safety devices including overload protection, limit switches, and emergency stop systems
Technical Specifications
10t 20ton Travelling Single Girder Overhead Crane A6 Duty With 10-25m Span 0 10t 20ton Travelling Single Girder Overhead Crane A6 Duty With 10-25m Span 1
Capacity (kg) Work Duty (FEM) Work Duty (ISO/GB) Lifting Height (m) Lifting Speed (m/min) Trolley Speed (m/min) H Size (mm) C Size (mm)
1000 4m M7 6/9/12/18 0.8/5.0 5~20 245 385
1250 3m M6 6/9/12/18 0.8/5.0 5~20 245 385
1600 3m M6 6/9/12/18 0.8/5.0 5~20 245 385
2000 2m M5 6/9/12/18 0.8/5.0 5~20 245 385
2500 3m M6 6/9/12/18 0.8/5.0 5~20 245 385
3200 2m M5 6/9/12/18 0.8/5.0 5~20 245 385
5000 2m M5 6/9/12/18 0.8/5.0 5~20 266 495
6300 1Am M4 6/9/12/18 0.8/5.0 5~20 266 495
8000 1Am M4 6/9/12/18 1.3/8.0 5~20 296 792
10000 1Am M4 6/9/12/18 1.0/6.3 5~20 296 792
12500 1Am M4 6/9/12/18 0.8/5.0 5~20 296 792
10t 20ton Travelling Single Girder Overhead Crane A6 Duty With 10-25m Span 2 10t 20ton Travelling Single Girder Overhead Crane A6 Duty With 10-25m Span 3 10t 20ton Travelling Single Girder Overhead Crane A6 Duty With 10-25m Span 4
Manufacturer Profile
10t 20ton Travelling Single Girder Overhead Crane A6 Duty With 10-25m Span 5
Industry Exhibitions & Global Presence
10t 20ton Travelling Single Girder Overhead Crane A6 Duty With 10-25m Span 6 10t 20ton Travelling Single Girder Overhead Crane A6 Duty With 10-25m Span 7
Tags:

industrial overhead crane,

overhead beam crane,

overhead bridge crane
