Construction Electric wire rope Winch Heavy Duty 5ton 10ton lifting applications
Products

Electric Wire Rope Hoist

Electric Chain Hoist

Double Girder Hoist

Foot Mounted Hoist

Explosion Proof Chain Hoist

Electric Winch

Overhead Crane

End Carriage

Overhead Crane Kits

Jib Crane

Lifting Tools

G80 Lifting Chain
Contact Us
Contact Now
Construction Electric wire rope Winch Heavy Duty 5ton 10ton lifting applications
  • name
  • name
  • name
  • name

Construction Electric wire rope Winch Heavy Duty 5ton 10ton lifting applications

MOQ: 2 pcs
Price: Negotiable
Standard Packaging: Wooden
Delivery Period: 15 working days
Payment Method: L/C,T/T,Western Union
Supply Capacity: 100 pcs / week
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
JCYC
Certification
CE
Model Number
KCD
Product Name:
Construction Electric Wire Rope Winch
Sling Type:
Wire Rope
Certifications:
CE, ISO
Lifting System:
Electric Motor
Cablematerial:
Steel
Maximum Lifting Height:
100m As Your Requires
Warranty:
12 Months
Motor:
6.5HP/4.8KW
Max Lifting Height:
10-500M
Capacity:
1ton-20ton
Highlight:

Electric winch for construction lifting

,

Heavy duty electric wire rope winch

,

5ton 10ton electric winch

Product Description
Construction Electric Wire Rope Winch - Heavy Duty 5ton & 10ton Lifting Applications

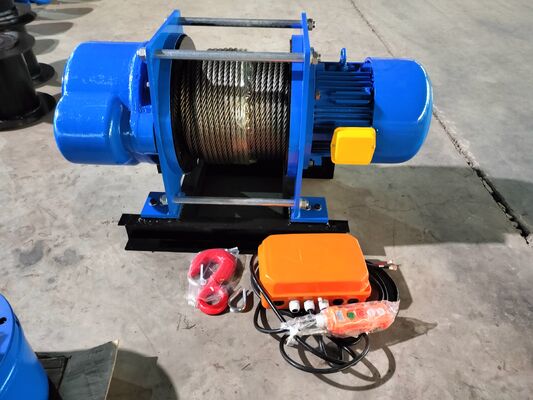

5ton Construction Electric Wire Rope Winch
The electric winch transmission mechanism is designed for heavy-duty lifting applications, providing reliable performance in industrial settings.
Product Structure Introduction
The electric winch transmission mechanism is engineered for heavy-duty lifting applications. It primarily consists of:
  • Brake motor
  • Wire rope drum
  • Reduction gearbox
  • Side support frames
  • Base structure
The two side support frames are securely mounted on the base, with the brake motor and reduction gearbox installed on the outer sides of the frames. The wire rope drum is positioned between the support frames. The output shaft of the gearbox is directly connected to the drum, while the motor output shaft is coupled to the gearbox input shaft through a flexible coupling, ensuring efficient and reliable power transmission.
This compact and integrated design provides high transmission efficiency, safe and reliable operation, easy maintenance, and low maintenance costs, making it suitable for a wide range of industrial lifting applications.
Technical Specifications
Parameter Unit 0.25T 0.5T 1T 2T 3T 5T 10T 16T 20T
Lifting weight Ton 0.25 0.5 1 2 3 5 10 16 20
Lifting height Meter 100m
Lifting speed M/Min 8/16 8/16 8/16 8/16 8/16 8/16 8/16 8/16 8/16
Wire rope diameter mm 3.6 4.8 7.4 11 13 15.5 15.5 17.5 21.5
Wire diameter mm 0.22 0.22 0.5 0.6 0.7 0.7 0.7 0.7
Structure form 6*9 D-6*37+1 D-6*37+1 D-6*37+1 D-6*37+1 D-6*37+1 D-8*37+1 D-6*37+1 D-6*37+1
Lifting motor model ZD:12-4 ZD121-4 ZDS1-0.2/1.5 ZD122-4 ZDS₁0.2/1.5 ZD131-4 ZDS₁0.4/3 ZD131-4 ZDS10.4/4.5 ZD141-4 ZDS₁0.8/7.5 ZD151-4 ZDS11.5/13 ZD151-4 ZDS11.5/13 ZD152-4
Capacity kw 0.4 0.80.2/0.8 1.50.21/1.5 30.4/3 4.50.4/4.5 7.50.8/7.5 131.5/13 131.5/13 18.5
Speed R/Min 1380 1380 1380 1380 1380 1380 1380 1380 1380
Number of phase 3 3 3 3 3 3 3 3 3
Voltage V 380 380 380 380 380 380 380 380 380
Current An 1.25 2.40.72/2.4 4.30.72/4.3 7.61.25/7.6 1124/11 182.4/7.11 304.3/30 304.3/30 41.7
Frequency Turn/Second 50 50 50 50 50 50 50 50 50
Product Images
Electric winch internal mechanism and components
Electric winch assembly diagram
Wire rope winch operational view
Electric winch mounting configuration
Technical diagram of JK electric winch components and specifications
Industry Exhibition
JK Electric Winch display at international trade exhibition
JK Electric Winch showcased at international trade exhibition
Wire rope hoists and industrial equipment showcased at industry exhibition
Wire rope hoists and industrial equipment at industry exhibition
Tags:

electric davit winch,

electric pulling winch,

electric pulling winch

Recommended Products
10 Ton 380V High Speed Electric Winch with 30m/min Lifting Speed for Construction

10 Ton 380V High Speed Electric Winch with 30m/min Lifting Speed for Construction

Contact Now
KCD Electric Winch Heavy Duty Lifting And Pulling Performance For Construction Sites

KCD Electric Winch Heavy Duty Lifting And Pulling Performance For Construction Sites

Contact Now
5TON Electric Compact Industrial Wire Rope Winch 380V Three Phase

5TON Electric Compact Industrial Wire Rope Winch 380V Three Phase

Contact Now
5 ton capacity 380V power supply electric winch with 15m/min slow speed for marine and construction use

5 ton capacity 380V power supply electric winch with 15m/min slow speed for marine and construction use

Contact Now
380V Electric Wire Rope Winch 1000m Lifting Height Mine Lifting Hoist Winch For Pulling

380V Electric Wire Rope Winch 1000m Lifting Height Mine Lifting Hoist Winch For Pulling

Contact Now
12m/Min Pulling Electric Wire Rope Winch Vehicle Recovery Winch In Mining

12m/Min Pulling Electric Wire Rope Winch Vehicle Recovery Winch In Mining

Contact Now
Mining Wire Rope Hoisting Windlass Anchor Winch

Mining Wire Rope Hoisting Windlass Anchor Winch

Contact Now
