Product Details:
Payment & Shipping Terms:
|
| Product Name: | Lifting Hoist Winch | Lifting Weight: | 0.25t To 35t |
|---|---|---|---|
| Maximum Lifting Height: | 0-1000m Or At Request | Application: | Cranes,Boat,Mining,Marine,Construction Etc. |
| Cable Rated Speed: | 6-40 M/min Or At Request | Voltage: | 220V ~ 690V 3P 50HZ/60HZ |
| Color: | As Per Request | ||
| High Light: | Lifting Hoist Winch,1000m Lifting Height Wire Rope Winch,mine winch crane |
||

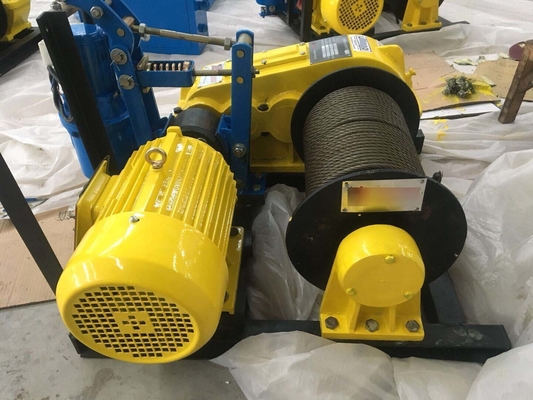

380V 220V Electric Wire Rope Winch 1000m Lifting Height For Pulling
Overview for mine winch crane
Winch is a kind of general-purposed lifting equipment, with safety, convenient in operation, reliable, durable, low in noise and so on character,
to be used widely in construction site, plant, mine, marine, port and wharf etc. It's a necessary equipment for horizontal or slope pulling.
Slow speed used for crane and installation industry feature
| Model | Cable rated pull (kg) |
Cable rated speed (m/min) |
Wire rope (ɸmm) |
Reduction box | Drum(mm) | ||
| Type | Transmission ratio |
Dia(ɸ) | Length | ||||
| JM2 | 2000 | 12 | 15.53 | JZQ350 | 23.34 | 260 | 480 |
| JM3 | 3000 | 10 | 17 | JZQ350 | 31.50 | 310 | 510 |
| JM5 | 5000 | 11 | 21.50 | JZQ400 | 23.34 | 400 | 730 |
| JM8 | 8000 | 10 | 26 | JZQ500 | 31.50 | 500 | 900 |
| JM10 | 10000 | 9 | 30 | JZQ650 | 40.17 | 550 | 1000 |
| JM12 | 12000 | 9 | 32 | JZQ650 | 40.17 | 650 | 1000 |
| JM16 | 16000 | 6.6 | 36.5 | JZQ750 | 31.50 | 750 | 1830 |
| JM20 | 20000 | 7.7 | 39 | JZQ750 | 31.50 | 750 | 1830 |
| JM25 | 25000 | 8.5 | 42 | JZQ750 | 31.50 | 850 | 1925 |
| JM30 | 30000 | 8.5 | 48 | JZQ850 | 23.34 | 960 | 1960 |
JK fast speed electric winch
If you need to lift and pull heavy loads with a higher efficiency, a high speed winch may be a better choice. Line speed of the winch ranges from 20m/min to 35m/min. This type of winch equipment helps you do the job quickly and safely. It can also be specifically designed to fit on cranes and derricks, replacing an electric hoist as the main hoisting mechanism.
| Model | Cable rated pull(kg) | Cable rated speed(m/min) | Wire rope dia. (Φmm) | Wire rope length(m) | Drum(mm) Dia(Φ) | Motor power(kw) |
| JK0.5 | 500 | 20/30 | Φ7.7 | 50/120 | Φ140*300 | 2.2 |
| JK1 | 1000 | 20/30 | Φ9.3 | 70/120 | Φ165*415 | 5.5/7.5 |
| JK1.5 | 1500 | 20/30 | Φ12.5 | 80/180 | Φ219*450 | 11/15 |
| JK2 | 2000 | 20/30 | Φ12.5 | 80/180 | Φ219*480 | 11/15 |
| JK3 | 3000 | 20/30 | Φ15.5 | 100/200 | Φ219*525 | 15/18.5 |
| JK5 | 5000 | 20/30 | Φ21.5 | 100/200 | Φ325*620 | 22/30 |
| JK8 | 8000 | 20 | Φ26 | 300 | Φ500*900 | 30 |
| JK10 | 10000 | 19 | Φ30 | 450 | Φ550*1000 | 45 |
Electric winch generally includes the following units:
1. motor.
2. Reduction gear box.
3. winch drum.
4. Brake.
5. electric control system.
6. optional rope guider.
Questions before make quotation:
1. Purpose and application of the winch, lifting or pulling?
2. Capacity?
3. Rope volume?
4. Requirement for rope speed?
5. Power supply?
7. Any other specific request such as double speed, additional equipment?
The more detail, the more accurate quotation.

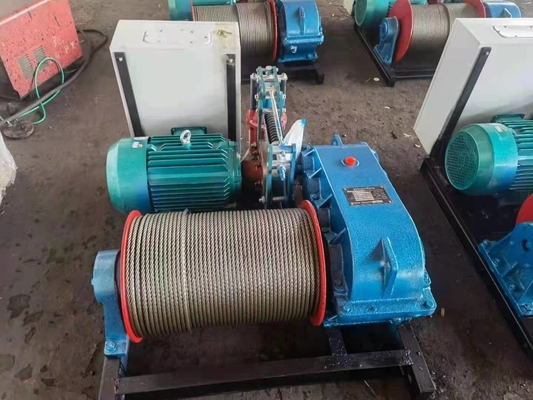

Factory show
