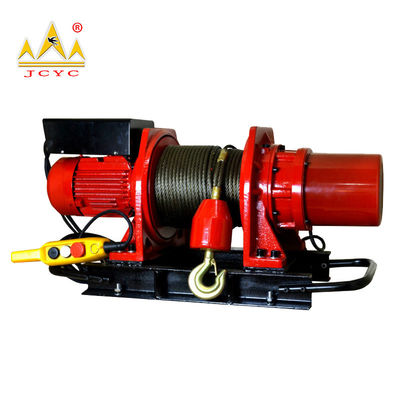

3ton Electric Wire Rope Winch KDJ Electric Windlass for Industrial Lifting Solutions
  • name
  • name
  • name
  • name

3ton Electric Wire Rope Winch KDJ Electric Windlass for Industrial Lifting Solutions

MOQ: 2 pcs
Price: Negotiable
Standard Packaging: Carton
Delivery Period: 15 working days
Payment Method: L/C,T/T,Western Union
Supply Capacity: 50 pcs/week
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
JCYC
Certification
CE
Model Number
KDJ
Product:
Electric Compact Industrial Wire Rope Winch
Max. Cap.:
10TON
Power Source:
Electric
Cable Rated Speed:
7-12 M/min
Driven Operation Type:
Remote Control
Rope Capacity:
Can Customized
Colour:
Customized
Operating Temperature:
-25-40℃
Max Lifting Height:
100M
Motor:
7.5*6hp
Product Description
3ton Electric Wire Rope Winch

Discover the pinnacle of industrial lifting with our KDJ Electric Winch 4.5KW. This electric wire rope winch is designed with an integrated gearbox for unparalleled flexibility and precision. Available in a variety of load capacities, it is the perfect solution for all your heavy-duty needs.

Product Features

● Reliable Electromagnetic Brake

The KDJ Mini Electric Winch is equipped with a DC electromagnetic brake and high-quality brake linings for dependable braking performance and extended service life. In the event of a power failure, the brake engages automatically to securely hold the load, ensuring safe and reliable operation.

● High-Performance Hoisting Motor

The winch is powered by an E-Class insulated motor featuring high starting torque and low rotational inertia, making it suitable for frequent operation and continuous industrial use.

● Integrated Mounting Frame

The KDJ Mini Electric Winch features a one-piece stamped steel mounting frame manufactured from high-quality steel plate. The robust integrated design allows flexible installation on suspension brackets, elevators, and steel beams.

 3ton Electric Wire Rope Winch KDJ Electric Windlass for Industrial Lifting Solutions 03ton Electric Wire Rope Winch KDJ Electric Windlass for Industrial Lifting Solutions 1


Model Load rated
(kg)		   speed
  (m/min)		 Motor
(hp×p)		 Voltage
   (v)		 Frequency
(Hz)		 Lifting Helght
     (m)		 Steel cable
(中mm×m)		 N.W.
(kg)		 duty  cycle.
KDJ-200E 200     10-15
   12-18		   0.8X4 1-phase
120v,220v,		 5060  29  6×30 36
KDJ-250E 250    10-15
   12-18		   1.0X4 5060  29  6X30 40     25%ED(150
  times/h max.
KDJ-300E 300    10-15
  12-18		   1.5X4 230v,240V 5060  29  7X30 49  starting frequency)
KDJ-300E1 300    10-15   1.5X4
50  29  7X30 48
KDJ-500E1 500    12-18   3.0X4 3-phase
   380v		 50  58  9X60 136
KDJ-750E1 750    12-18   4.0X4 415v 50  58  9X60 149
KDJ-1000E1 1000    12-18   5.5X4 50  58  11×60 156
Model Load rated
(kg)		   speed
  (m/min)		 Motor
(hp×p)		 Voltage
   (V)		 Frequency
(Hz)		   Lifting Helght
      (m)		 Steel cable
(中mmxm)		 N.W.
(kg)		 percentage
duty cycle.
KDJ-2200E1 2200  7-12.5 7.5X4
50  97    16X100 450     25%ED(150
  times/h max.
KDJ-3200E1 3200  6.3-8.8 7.5X6 3-phase 50  97    18X100 500  starting frequency)
KDJ-5000E1 5000  8.0-12 15X4 380v 50  192    22.4×200 1500
KDJ-10000E1 10000  7-11 30×4 415v 50  235    32×250 3000



3ton Electric Wire Rope Winch KDJ Electric Windlass for Industrial Lifting Solutions 2

3ton Electric Wire Rope Winch KDJ Electric Windlass for Industrial Lifting Solutions 3

3ton Electric Wire Rope Winch KDJ Electric Windlass for Industrial Lifting Solutions 4

3ton Electric Wire Rope Winch KDJ Electric Windlass for Industrial Lifting Solutions 5



  Technical diagram of JK electric winch components and specifications
Industry Exhibition
JK Electric Winch display at international trade exhibition Wire rope hoists and industrial equipment showcased at industry exhibition
