3t Material Lifting Electric Chain Hoist with 360-Degree Hook Rotation and Light Aluminum Alloy Shell

MOQ: 1 piece
Price: $300-$10000
Standard Packaging: Plywood Case
Delivery Period: 20-30 working day
Payment Method: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Capacity: 1000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
JCYC/OEM
Certification
CE ISO9001 manufacturing licence
Model Number
SY-A
Product Name:
Electric Chain Hoist With Electric Trolley
Capacity:
0.3 Ton To 50 Ton
Lifting Height:
3/6/9/12/18m Or At Request
Power Supply:
220V-440V 3Phase 50/60Hz
Color:
At Request
OEM:
Yes
Highlight:

3t Material Lifting Electric Chain Hoist

,

18m Lifting Electric Chain Hoist

,

ISO9001 Lifting Electric Chain Hoist

Product Description

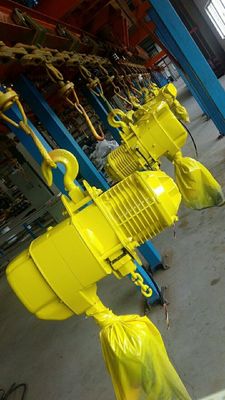

3t Material Lifting Electric Chain Hoist High Strength With Trolley

Our electric G80 chain hoist offers durable, compact, and quiet operation for smooth lifting and moving of heavy loads up to 3 tons. Designed for easy handling and maintenance, these hoists reduce labor costs while minimizing power consumption and operation time for material handling applications.

3t Material Lifting Electric Chain Hoist with 360-Degree Hook Rotation and Light Aluminum Alloy Shell 0

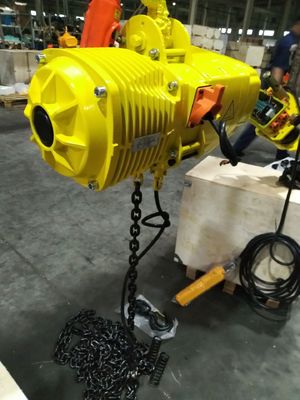

Structural Features

The hoist features a high-strength tensile shell or die-cast aluminum case with precision thin-wall manufacturing for compact size, lightweight, and exceptional strength. Our separate speed-adjusting system includes a sealed 2-stage coaxial transmission gear mechanism with long-service oil bath lubrication.

The powder metallurgy clutch provides overload protection, while the DC magnetic field brake disc ensures stable, rapid braking with minimal noise. Custom capacity, lifting height, and configurations are available upon request.

3t Material Lifting Electric Chain Hoist with 360-Degree Hook Rotation and Light Aluminum Alloy Shell 1
Key Components
  • Shell: Lightweight aluminum alloy construction with specially designed cooling fins for 40% faster heat dissipation, suitable for harsh environments like chemical plants.
  • Support Frame: Dual steel plate construction for maximum sturdiness.
  • Side Magnetic Braking: Latest design magnetic force generator enables instant braking when power is cut off.
  • Transformer: 24V/36V/48V/10V transformer prevents accidents from electric leakage.
  • Limit Switch: Automatically stops motor to prevent chain overtravel.
  • Chain: Imported FEC G80 heat-treatable aluminum alloy chain resistant to rain, seawater, and chemicals.
  • Hook: Hot-forged construction with 360° rotation and safety flap.
  • Electromagnetic Contactor: Safe operation under high frequency.
  • Phase Protection: Prevents operation with incorrect power supply wiring.
  • Control Switch: Waterproof push button for durability.
Technical Specifications
Model Lifting Capacity (t) Lifting Height (m) Lifting Speed (m/min) Running Speed (m/min) Lifting Motor Power (kw) Lifting Motor RPM Power Supply Running Motor Power (kw) Running Motor RPM I-Beam (mm)
SY-A0.5-1 0.5 3-9 6.8 12.2 0.75 1440 220-440V 50/60HZ 3Phase 0.12 1440 58-130
SY-A1-1 1 3-9 6.6 10/20 1.5 1440 220-440V 50/60HZ 3Phase 0.4 1440 80-160
SY-A1-2 1 3-9 3.4 10/20 0.75 1440 220-440V 50/60HZ 3Phase 0.4 1440 80-160
SY-A2-1 2 3-9 6.6 10/20 3.0 1440 220-440V 50/60HZ 3Phase 0.4 1440 82-178
SY-A2-2 2 3-9 3.3 10/20 1.5 1440 220-440V 50/60HZ 3Phase 0.4 1440 82-178
SY-A3-1 3 3-9 5.4 10/20 3.0 1440 220-440V 50/60HZ 3Phase 0.4 1440 100-180
SY-A3-2 3 3-9 4.4 11/21 3.0 1440 220-440V 50/60HZ 3Phase 0.4 1440 100-178
SY-A3-3 3 3-9 2.4 11/21 1.5 1440 220-440V 50/60HZ 3Phase 0.4 1440 110-178
SY-A5-2 5 3-9 2.7 10/20 3.0 1440 220-440V 50/60HZ 3Phase 0.75 1440 110-180
SY-A7.5-3 7.5 3-9 1.8 10/20 3*2 1440 220-440V 50/60HZ 3Phase 0.75 1440 120-180

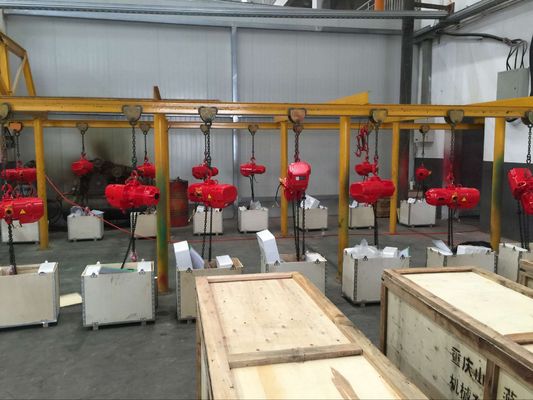

Manufacturing Facility
3t Material Lifting Electric Chain Hoist with 360-Degree Hook Rotation and Light Aluminum Alloy Shell 2
3t Material Lifting Electric Chain Hoist with 360-Degree Hook Rotation and Light Aluminum Alloy Shell 3
