500kg Stage Chain Hoist 30M Lifting Height IP54 With 8-channel Control Box

MOQ: 2 pcs
Price: Negotiable
Standard Packaging: Wooden or flight case
Delivery Period: 5 working days
Payment Method: T/T
Supply Capacity: 50 pcs / week
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JCYC
Certification
CE
Model Number
HHD
Product Name:
500kg Stage Chain Hoist
Warranty:
2 Year
Power Supply:
3P 220V 50/60Hz
Motor Power:
400W
Standard:
CE
Noiselevel:
< 60 DB
Weight:
40 Kg
Liftingcapacity:
0.5 Ton To 2 Tons
Lift Chain:
G80
Usage:
Construction Hoist
Working Degree:
-25 - 40 Degree
Ins Class:
F
Lifting Chain:
G80
Key Words:
Electric Chain Hoist
Lifting Speed:
3.5m/min
Product Description
500kg Stage Chain Hoist 30M Lifting Height IP54 With 8-channel Control Box
Professional Stage Chain Hoist

This heavy-duty stage chain hoist is designed for professional entertainment and industrial applications, featuring robust construction and advanced safety systems.

Product Features
  • Built-in overload clutch - Automatically idles the motor when load exceeds rated capacity, protecting both hoist body and load chain from damage
  • Disc brake motor design - Immediate brake engagement during power failure or system malfunction ensures safe, reliable operation with extended service life
  • High-strength nylon chain guide - Effectively protects chain from wear and damage, ensuring smooth movement and preventing chain jamming
  • Compact and lightweight design - Split connector compatible with synchronous controller for synchronized operation of single or multiple hoists

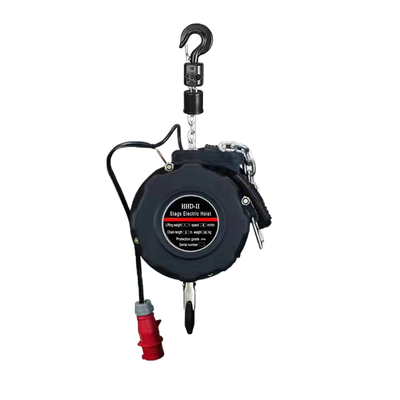

500kg Stage Chain Hoist product illustration showing compact design and chain configuration
Technical Specifications
Rated Load Capacity 500 kg
Product Dimensions 306 × 235 × 235 mm
Net Weight 30 kg
Material Alloy Steel
Chain Length Optional
Chain Color Galvanized White (Black Optional)
Load Chain Specification 8 × 24 mm
Chain Safety Factor 8 Times Breaking Load
Chain Weight 1.33 kg/m
Number of Chain Falls 1 Fall
Chain Bag Included
Brake System Single Brake
Protection Class IP54
Motor Model YHPE750-4
Standard Power Supply Three-phase 380V / 50Hz
Optional Voltage 110V-440V (Customized)
Duty Cycle 40% ED (JC)
Motor Insulation Class Class F
Motor Power 750 W
Motor Speed 1380 rpm
Overload Protection Mechanical Overload Protection Device
Limit Switch Electronic Limit Switch
Lifting Speed 4 m/min
Noise Level ≤60 dB
Packing Size (Wooden Case) 540 × 390 × 285 mm
Packing Size with Flight Case 610 × 450 × 560 mm
Warranty 2 Years
500kg Stage Chain Hoist 30M Lifting Height IP54 With 8-channel Control Box
500kg Stage Chain Hoist 30M Lifting Height IP54 With 8-channel Control Box
500kg Stage Chain Hoist 30M Lifting Height IP54 With 8-channel Control Box
500kg Stage Chain Hoist 30M Lifting Height IP54 With 8-channel Control Box
500kg Stage Chain Hoist 30M Lifting Height IP54 With 8-channel Control Box

Company Profile
Manufacturer company profile and overview
Exhibition
Stage chain hoist exhibition display at industry trade show Professional exhibition booth showcasing industrial hoisting equipment
