Electric Trolley For Electric Hoist 0.5t 1t 2t 3t 5t Single Speed Double Speed
  • name
  • name
  • name
  • name
  • name

Electric Trolley For Electric Hoist 0.5t 1t 2t 3t 5t Single Speed Double Speed

MOQ: 1 set
Price: negotiable
Standard Packaging: Carton cases and Plywood cases
Delivery Period: 15 to 20 working days
Payment Method: L/C,T/T,Western Union
Supply Capacity: 200 sets per week
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JCYC
Certification
CE & ISO
Model Number
SY-ET
Product Name:
Electric Trolley For Electric Hoist 0.5t 1t 2t 3t 5t Single Speed Double Speed
Capacity:
0.5t 1t 2t 3t 5t 10t
Motor:
0.12 To 0.75kw
Speed 50Hz:
11 Or 21 M/min
Minimum Radius Of Tum:
0.8 And 1.0
Application:
Electric Chain Hoist
Highlight:

stainless steel chain hoist

,

high speed chain hoist

Product Description

Easy Installation Trolley for Electric Hoist Crane Motor Trolley

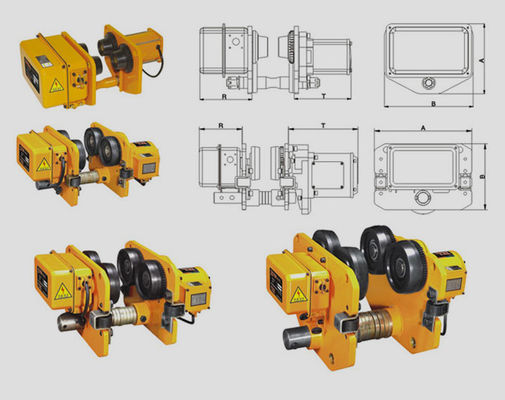

Technique parameters

Electric Trolley For Electric Hoist 0.5t 1t 2t 3t 5t Single Speed Double Speed 0
Model Capacity
(T)		 Unit(mm) Speed
50HZ
(m/min)		 Motor(kw) Minimum
radius of
turn		 I-Beam
A B R T
SY-ET-0.5 0.5 198 248 142 159 12.2 0.12 0.8 52-153
SY-ET-01 1 315 212 142 231 11-21 0.4 0.8 52-153
SY-ET-02 2 325 220 142 231 11-21 0.4 0.8 82-178
SY-ET-03 3 340 250 142 231 11-21 0.4 1 100-178
SY-ET-05 5 400 291 142 231 11-21 0.75 1.8 100-178
SY-ET-7.5 7.5 400 291 142 231 11-21 0.75 1.8 100-178
SY-ET-10 10 500 370 142 231 11-21 0.75 2.5 150-220

Product Description

Durable. Reliable. Powerful. The trolleys are designed to be cross compatible with hoists built by most major manufacturers. With larger trolley wheels than similar models, LiftHand Trolleys can withstand severe use at or near rated capacities. Easily adjustable to ride on a range of beam widths, and powered by motors, the trolley can move hoists and materials throughout a facility with the simple push of a button. And since all of LiftHand's motorized trolleys are available equipped with variable drives, you can add increased brake and gearbox life, as well as reduced power consumption, to the long list of features.

Features

  • Capacity Range: 1/4 to 20 Ton models in stock, with higher capacities available upon request.
  • Easily Adjustable to fit a wide range of beam widths simply by adjusting the number of collars.
  • Anti-tilt and anti-drop devices are standard.
  • Forged steel wheels hardened to a minimum of 425 Brinell are made to fit any beam shape.
  • Custom travel speeds available.
  • Double row sealed bearings manage radial and axial loads with a minimum L10 bearing life of 3,000 hours.
  • Easy to install with minimal headroom requirements.
  • Minimum maintenance with easy to replace parts.

Package

Electric Trolley For Electric Hoist 0.5t 1t 2t 3t 5t Single Speed Double Speed 1

Electric Trolley For Electric Hoist 0.5t 1t 2t 3t 5t Single Speed Double Speed 2

Electric Trolley For Electric Hoist 0.5t 1t 2t 3t 5t Single Speed Double Speed 3

Exhibition

Electric Trolley For Electric Hoist 0.5t 1t 2t 3t 5t Single Speed Double Speed 4

Tags:

stainless steel chain hoist,

high speed chain hoist,

mini chain hoist
