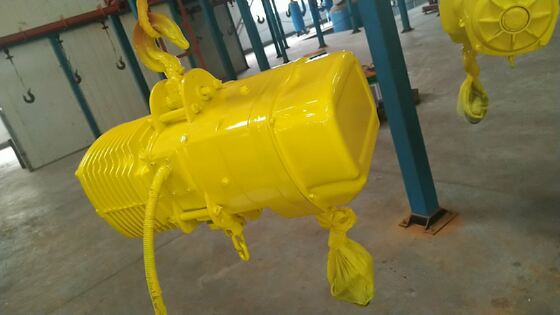

32t Capacity 12M Lifting Height Electric Wire Rope Hoist With Frequency Conversion 380V/440V 50hz/60hz

Large Image : 32t Capacity 12M Lifting Height Electric Wire Rope Hoist With Frequency Conversion 380V/440V 50hz/60hz

Product Details:

Place of Origin:	China
Brand Name:	JCYC
Certification:	CE ISO9001 manufacturing licence
Model Number:	CD1

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$300-$10000
Packaging Details:	Plywood Case
Delivery Time:	30 working day
Payment Terms:	D/A,L/C,D/P,T/T,Western Union,MoneyGram
Supply Ability:	500pcs per month

Contact Now

Detailed Product Description

Name:	Electric Wire Rope Hoist	Capacity:	1t-32t
Lifting Height:	6/9/12/15/18	Rail Type:	I-Type, H-Type Rail
Travelling Speed:	20 M/min	Color:	As Per Request
Voltage:	380V/440V 50hz/60hz
Highlight:	12M Wire Rope Crane Hoist , 32t Wire Rope Crane Hoist , Harbours Electric Wire Rope Hoist

Single Girder 32t 12M Wire Rope Crane Hoist With Frequency Conversion

1T 3T 5T 6/9/12M Single Girder Electric Wire Rope Hoist With frequency conversion

Brief Introduction

The electric wire rope hoist CD1/MD1 model features compact, lightweight design and smooth operation. Suitable for overhead rails and compatible with various crane types including single-girder, double-girder, cantilever, and gantry cranes. The MD1 model with dual lifting speeds is ideal for precision operations requiring fine adjustments.

Main Characteristics

Model CD1, MD1 electric wire rope hoist is a compact lifting equipment mountable on single beam, bridge, gantry and arm cranes
Can be adapted for use as a winch with slight modifications
Widely used in factories, mines, harbors, warehouses, and storage areas to enhance efficiency
CD1 model operates at normal speed for standard applications
MD1 model offers dual speeds (normal and low) for precision tasks like machine maintenance

Technical Configuration

Model	Lifting Capacity (t)	Lifting Height (m)	Lifting Speed (m/min)	Running Speed (m/min)	Wire Rope Type	Dia.of Wire Rope (mm)	I Beam Track Type	Working Duty	Lifting Motor Power(kw)	Running Motor Power(kw)
CD1-0.25	0.25	3-9	8	20	6*19	3.6	16-22b	M3	0.4	0.06
CD1-0.5	0.5	6-12	8	20	6*37+1	4.8	16-28b	M3	0.8	0.2
CD1-1	1	6-30	8	20	6*37+1	7.4	16-28b	M3	1.5	0.2
CD1-2	2	6-30	8	20	6*37+1	11	20a-32c	M3	3	0.4
CD1-3	3	6-30	8	20	6*37+1	13	20a-32c	M3	4.5	0.4
CD1-5	5	6-30	8	20	6*37+1	15	25a-63c	M3	7.5	0.8
CD1-10	10	6-30	7	20	6*37+1	15	25a-63c	M3	13	0.8*2
CD1-16	16	6-30	3.5	20	6*37+1	15	45a-63c	M2	13	0.8*2
CD1-20	20	6-30	3.5	20	6*37+1	20	50a-63c	M2	13	0.8*2

Notes

The standard lifting height is 6, 9, 12, 18, 24, 30 and 36 meters
The lifting speed can be single speed or double speed, even multi-speed with frequency inverters
The suitable rail for the low-headroom hoist is H-type rail, and I-type rail is also available
The recommended rope reeving of this kind of hoist is 2/1, 4/2 or 4/1
The normal traveling speed is 20m/min, and 12.5, 16, 25, 30, 45m/min by request
The normal rail gauge of the double-girder is 1200, 1500, 1800, 2100 and 2300mm

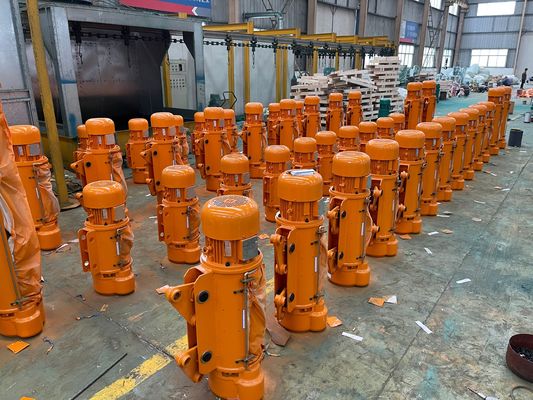

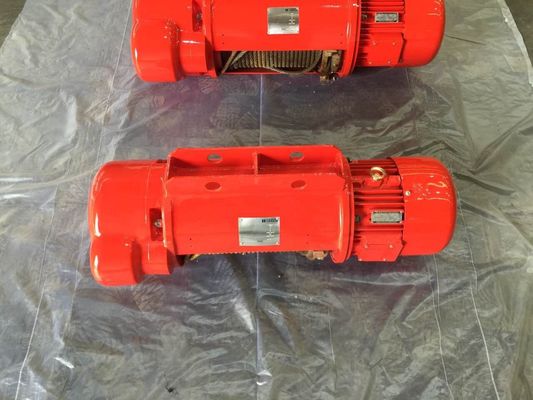

Product Gallery
