380V H Type Rail 25t Electric Cable Hoist 20m/Min Travel

MOQ: 1 piece
Price: $5000-$50000
Standard Packaging: Plywood Case
Delivery Period: 30 working day
Supply Capacity: 1000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JCYC
Certification
CE ISO9001 manufacturing licence
Model Number
CD1/MD1
Name:
Factory Outlet Electric Cable Hoist With Dual Speed
Capacity:
1t-25t
Lifting Speed:
8(0.8)m/min
Girder:
Single Girder / Double Girder
Rail Type:
I-Type, H-Type Rail
Travel Speed:
20 M/min
Highlight:

25t Electric Cable Hoist

,

20m/Min Travel Electric Cable Hoist

,

8m/min Lifting Electric Cable Hoist

Product Description
380V H Type Rail 25t Electric Cable Hoist 20m/Min Travel
Factory Outlet Electric Cable Hoist With Dual Speed
The CD1/MD1 model electric wire rope hoist features compact structure, lightweight design, small size, and easy operation. It can be used on overhead rails and in conjunction with various electric or manual cranes including single-girder, double-girder, cantilever, and gantry cranes.
The MD1 electric hoist model offers dual lifting speeds for precision operations requiring fine adjustments, while the CD1 model provides standard speed for normal applications.
Main Characteristics
  • CD1/MD1 electric wire rope hoist is a compact lifting equipment that can be mounted on single beam, bridge, gantry, and arm cranes
  • With slight modifications, it can function as a winch
  • Widely used in factories, mines, harbors, warehouses, cargo storage areas, and shops to improve working efficiency and conditions
  • CD1 electric hoist operates at normal speed for standard applications
  • MD1 electric hoist provides both normal and low speeds for precise loading, unloading, sand box mounting, and machine tool maintenance
Key Advantages
  • Motor: Taper type rotor motor with braking system, featuring high torque (2.4-3 times rated torque) for frequent movement operations
  • Gear Box: Specially treated gears for high wear resistance, supported on ball or roller bearings for smooth, low-friction operation
  • Wire Rope: Export-standard hoisting ropes with safety factor of six on nominal breaking strength, designed to prevent sideways slippage
  • Rope Drum: Grooved seamless pipe drum with adequate length for single-layer winding, supported by ball bearings for smooth operation
  • Control System: Composed of contactor box, controlling switch, and cut-off limiter with working voltages of 380V, 36V, or 24V safety voltage
  • Rope Guide: Two-half design for easy accessibility, completely encircling the drum to prevent rope uncoiling, featuring thickened construction for durability
  • Hook: Hook block tested to 150% of full load capacity before assembly
Technical Specifications
Model Lifting Capacity (t) Lifting Height (m) Lifting Speed (m/min) Running Speed (m/min) Wire Rope Type Dia. of Wire Rope (mm) I Beam Track Type Working Duty Lifting Motor Power (kw) Lifting Motor R.P.M Running Motor Power (kw) Running Motor R.P.M
CD1-0.25 0.25 3-9 8 20 6*19 3.6 16-22b M3 0.4 1380 0.06 1400
CD1-0.5 0.5 6-12 8 20 6*37+1 4.8 16-28b M3 0.8 1380 0.2 1380
CD1-1 1 6-30 8 20 6*37+1 7.4 16-28b M3 1.5 1380 0.2 1380
CD1-2 2 6-30 8 20 6*37+1 11 20a-32c M3 3 1380 0.4 1380
CD1-3 3 6-30 8 20 6*37+1 13 20a-32c M3 4.5 1380 0.4 1380
CD1-5 5 6-30 8 20 6*37+1 15 25a-63c M3 7.5 1380 0.8 1380
CD1-10 10 6-30 7 20 6*37+1 15 25a-63c M3 13 1400 0.8*2 1380
CD1-16 16 6-30 3.5 20 6*37+1 15 45a-63c M2 13 1400 0.8*2 1380
CD1-20 20 6-30 3.5 20 6*37+1 20 50a-63c M2 13 1400 0.8*2 1380
Additional Notes
  1. Standard lifting heights available: 6, 9, 12, 18, 24, 30, and 36 meters
  2. Lifting speed options include single speed, double speed, or multi-speed with frequency inverters
  3. Suitable rails: H-type rail for low-headroom hoists, I-type rail also available
  4. Recommended rope reeving configurations: 2/1, 4/2, or 4/1
  5. Standard traveling speed is 20m/min, with options for 12.5, 16, 25, 30, and 45m/min available upon request
  6. Standard double-girder rail gauges: 1200, 1500, 1800, 2100, and 2300mm
Product Images

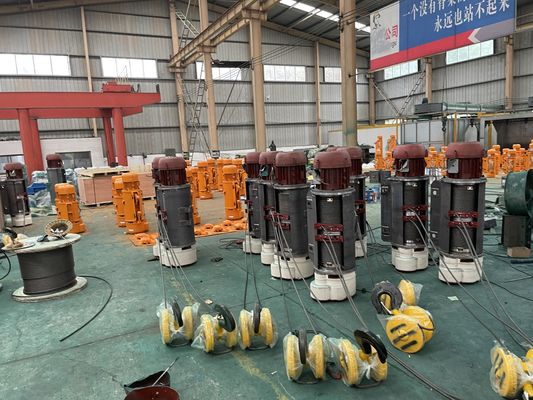

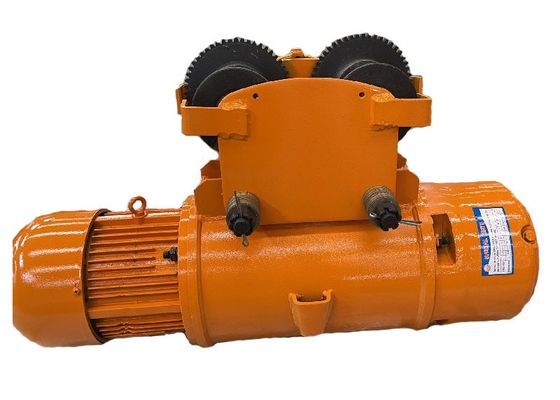

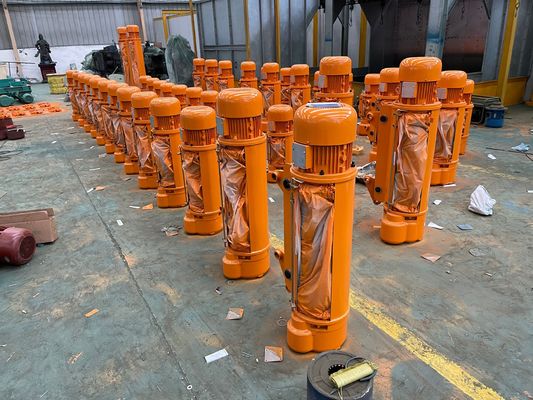

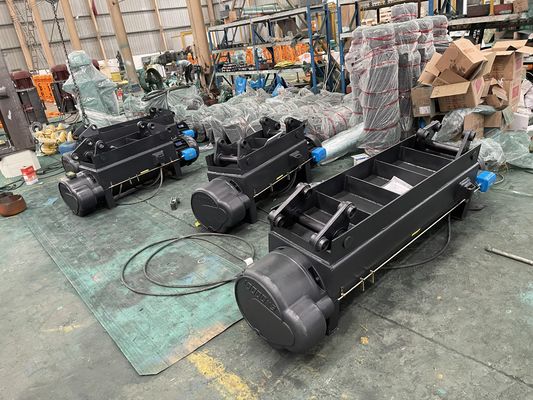

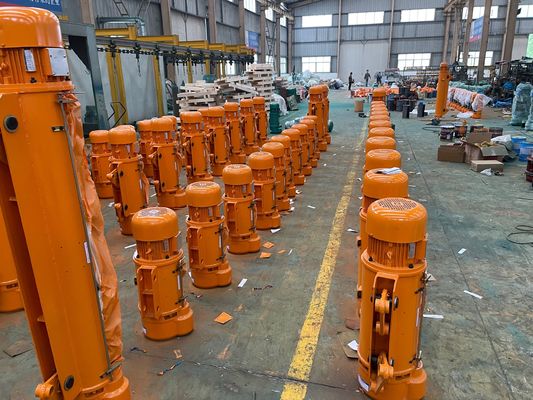

380V H Type Rail 25t Electric Cable Hoist 20m/Min Travel 0 380V H Type Rail 25t Electric Cable Hoist 20m/Min Travel 1 380V H Type Rail 25t Electric Cable Hoist 20m/Min Travel 2
