Capacity 50t 18m Lifting Chain Hoist For Warehouses Garages

Products

Capacity 50t 18m Lifting Chain Hoist For Warehouses Garages

MOQ:	1 piece
Price:	$500-$10000
Standard Packaging:	Plywood Case
Delivery Period:	20-30 working day
Payment Method:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Capacity:	1000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

JCYC/OEM

Certification

CE ISO9001 manufacturing licence

Model Number

Product Name:

0.3-50t Manufacturer Supply Lifting Winch Electric Chain Hoist

Capacity:

0.3 Ton To 50 Ton

Lifting Height:

3/6/9/12/18m Or At Request

Power Supply:

220V-690V 3Phase 50/60Hz

Color:

Yellow/orange Or At Request

Highlight:

50t Lifting Chain Hoist

OEM Warehouse Lifting Chain Hoist

18m Lifting Chain Hoist

Product Description

0.3-50t Manufacturer Supply Lifting Winch Electric Chain Hoist

Brief Introduction:

Electric chain hoist has a small,compact,light weight and cool design,use single/triple phase power supply,quickly and easily operates,easy to install,security,reliability and widely using. Ideal lifting tools for DIY, warehouses, garages, farms, hunting, engine repair shops, machine shops, restaurants, AD boards hold, show and home improvement etc, also perfect for loading and unloading heavy items from trucks and trailers.

Structure Features

The body chooses to use high strength tensile shell or die casting aluminum case, extrusion molding process thin-walled precision manufacturing, small size, low weight, high strength.
Seperate speed-adjusting system, seal the level 2 coaxial transmission speed gear mechanism with long-service oil bath lubrication system.
The electric hoist powder metallurgy clutch is used for overload protection device. The brake disc adopts dc magnetic field, braking torque, stable and rapid, the noise is small.

Hooks
Drop forged steel suspension & load hooks are heat treated and fracture resistant. In case of dangerous overloading or abuse, the hook does not fracture but will slowly yield.
Power
Operating voltage 220-440V, 50/60Hz, 1-3 phase.
Low voltage control 36V is standard.
Motor
High efficient energy-saving motor, asbestos free brake system. 2-speed motor available.
Chain
Alloy steel chain super strong surface hardened for optimum strength and wear resistance.
Chain Bucket
Solid chain bucket as standard part for safer operation
Limit Switch
Limit switch devices fitted at both top & bottom ends, switch off power automatically to prevent load chain from running out.
Phase Error Relay
Phase error relay, a specially designed current-post, prevents motor from running at incorrect wire connection.
Pushbutton Swith
Pushbutton swith is rain-proof plastic for severe impact and corrosive atmosphere resistance and mechanically interlocked.
Safety Latches
Top and bottom hooks are fitted with safety latches as standard.
Light Wight
Light weight, compact and solid body case.
Push Button Control
Fits operator's hand operation. Impact and chemical atmosphere resistant.

Product technical parameters:

Model	Lifting Capacity(t)	Lifting Height(m)	Lifting Speed(m/min)	Running Speed(m/min)	Lifting Motor			Running Motor			I-Beam(mm)
Model	Lifting Capacity(t)	Lifting Height(m)	Lifting Speed(m/min)	Running Speed(m/min)	Power(kw)	R.P.M(r/min)	Power Supply	Power(kw)	R.P.M(r/min)	Power Supply	I-Beam(mm)
SY-A0.5-1	0.5	3-9	6.8	12.2	0.75	1440	220-440V 50/60HZ 3Phase	0.12	1440	220-440V 50/60HZ 3Phase	58-130
SY-A1-1	1	3-9	6.6	10/20	1.5	1440		0.4	1440		80-160
SY-A1-2	1	3-9	3.4	10/20	0.75	1440		0.4	1440		80-160
SY-A2-1	2	3-9	6.6	10/20	3.0	1440		0.4	1440		82-178
SY-A2-2	2	3-9	3.3	10/20	1.5	1440		0.4	1440		82-178
SY-A3-1	3	3-9	5.4	10/20	3.0	1440		0.4	1440		100-180
SY-A3-2	3	3-9	4.4	11/21	3.0	1440		0.4	1440		100-178
SY-A3-3	3	3-9	2.4	11/21	1.5	1440		0.4	1440		110-178
SY-A5-2	5	3-9	2.7	10/20	3.0	1440		0.75	1440		110-180
SY-A7.5-3	7.5	3-9	1.8	10/20	3*2	1440		0.75	1440		120-180
SY-A10-4	10	3-9	2.7	10/20	3*2	1440		0.75	1440		150-202
SY-A15-6	15	3-9	1.9	10/20	3*2	1440		0.75*2	1440		150-220
SY-A20-8	20	3-9	1.4	10/20	3*2	1440		0.75*2	1440		150-220
SY-A25-8	25	3-9	1.1	10/20	3*2	1440		0.75*2	1440		150-220
SY-A30-10	30	3-9	0.9	10/20	3*2	1440		0.75*2	1440		150-220
SY-A35-16	35	3-9	0.7	10/20	3*2	1440		0.75*2	1440		150-220

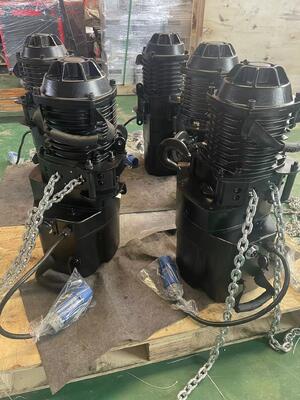

Capacity 50t 18m Lifting Chain Hoist For Warehouses Garages 0

Factory show:

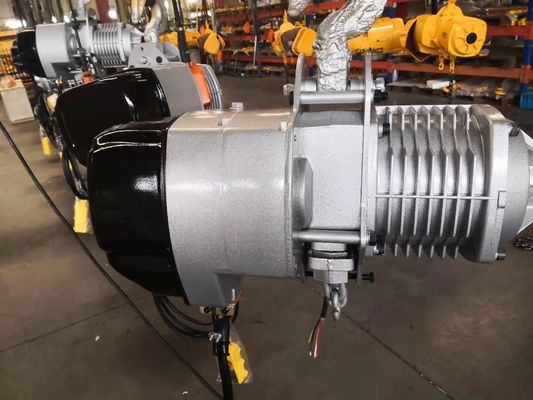

Capacity 50t 18m Lifting Chain Hoist For Warehouses Garages 1

Capacity 50t 18m Lifting Chain Hoist For Warehouses Garages 2
