380V 50HZ Motorized Trolley Lifting Chain Hoist Fixed Type

MOQ: 1 unit
Price: $3000-$10000
Standard Packaging: Plywood case
Delivery Period: 10 -15 working days
Payment Method: L/C,T/T,Western Union,D/A,D/P,
Supply Capacity: 500 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JCYC
Certification
CE&ISO
Model Number
SY-A
Product Name:
Electric Chain Hoist
Capacity::
1 Ton-30ton
Lifting Height:
3m/6m/9m/12m
Voltage:
220v-440v,50HZ/60HZ
Application:
Construction
Warranty Period:
1 Year
Highlight:

380V Motorized Trolley Lifting Chain Hoist

,

30t Construction Lifting Chain Hoist

,

12m Lifting Electric Chain Hoist

Product Description

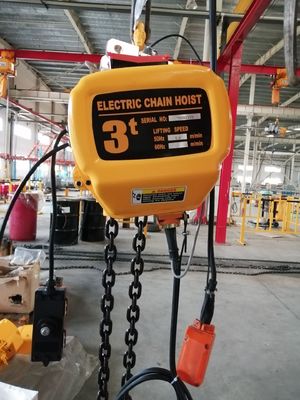

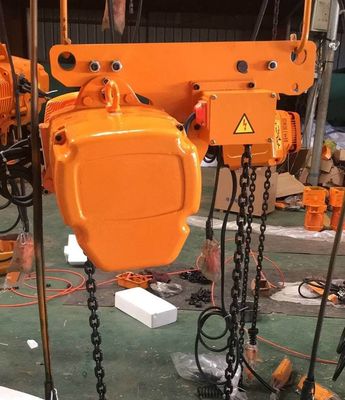

380V 50HZ Lifting Motorized Trolley Electric Chain Hoist Fixed Type

Product Brief Introduction:

High Efficient 1 Ton Japan Electric Chain Hoist With Motorized Trolley has light aluminumalloyshell, light but hard. This 1 ton hoist's cooling fin is specially designed to ensure quick heat dissipation with the rate up to 40%.

This Hoist has magnetic braking device, it generate magnetic force to support the braking .

Our Hoist has the Japan FEC80 heat-treated steel alloy chain.

Waterproof push button is applied. It's light and durable.

Usage: Lifting, fixing, binding, traction, etc. Well accepted in various industrial fields.

Features and advantages:

  • The main parts of electric chain hoist adopt high quality steel product to ensure durability.
  • Special specifications and marks can be made according to customers' requirements.
  • Various lifting capacity, meet different needs.
  • The main body of electric chain hoist can be hanging in the I-beam to move straight or curve, or installed in the fixed bracket for lifting heavy objects.

Product technical parameters:

Model Lifting Capacity(t) Lifting Height(m) Lifting Speed(m/min) Running Speed(m/min) Lifting Motor
Power(kw) R.P.M(r/min) Power Supply
SY-A0.5-1 0.5 3-9 6.8 12.2 0.75 1440 220-440V
50/60HZ
3Phase
SY-A1-1 1 3-9 6.6 10/20 1.5 1440
SY-A1-2 1 3-9 3.4 10/20 0.75 1440
SY-A2-1 2 3-9 6.6 10/20 3.0 1440
SY-A2-2 2 3-9 3.3 10/20 1.5 1440
SY-A3-1 3 3-9 5.4 10/20 3.0 1440
SY-A3-2 3 3-9 4.4 11/21 3.0 1440
SY-A3-3 3 3-9 2.4 11/21 1.5 1440
SY-A5-2 5 3-9 2.7 10/20 3.0 1440
SY-A7.5-3 7.5 3-9 1.8 10/20 3*2 1440
SY-A10-4 10 3-9 2.7 10/20 3*2 1440
SY-A15-6 15 3-9 1.9 10/20 3*2 1440
SY-A20-8 20 3-9 1.4 10/20 3*2 1440
SY-A25-8 25 3-9 1.1 10/20 3*2 1440
SY-A30-10 30 3-9 0.9 10/20 3*2 1440
SY-A35-16 35 3-9 0.7 10/20 3*2 1440

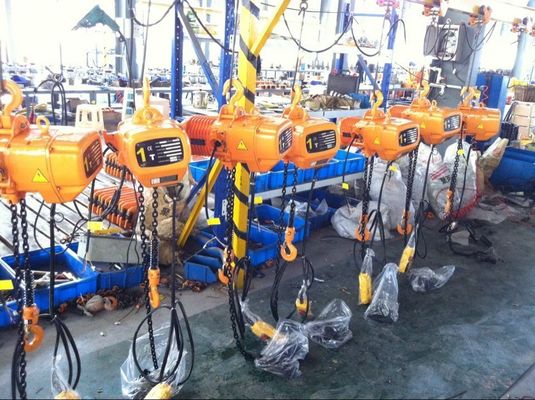

Factory show:

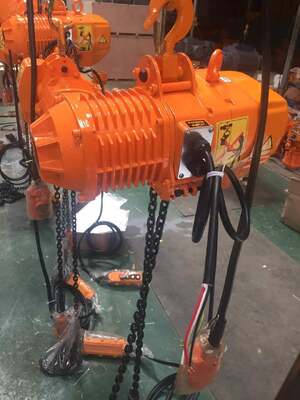

380V 50HZ Motorized Trolley Lifting Chain Hoist Fixed Type
380V 50HZ Motorized Trolley Lifting Chain Hoist Fixed Type
