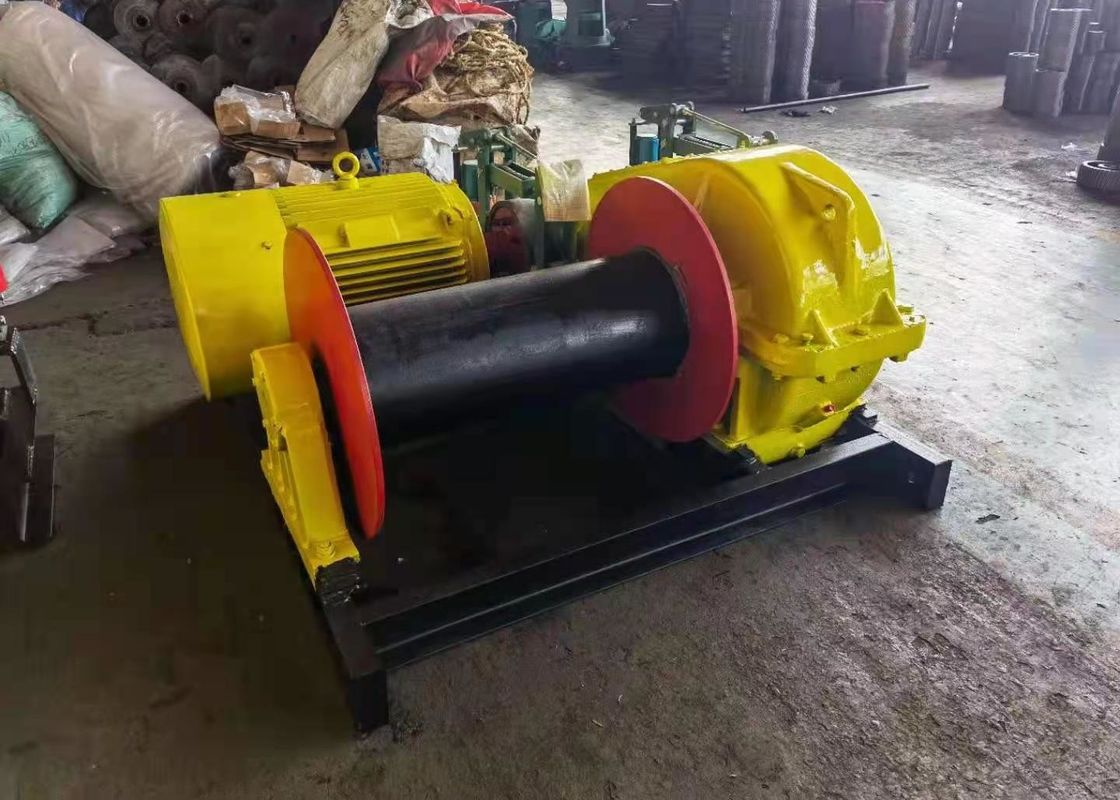

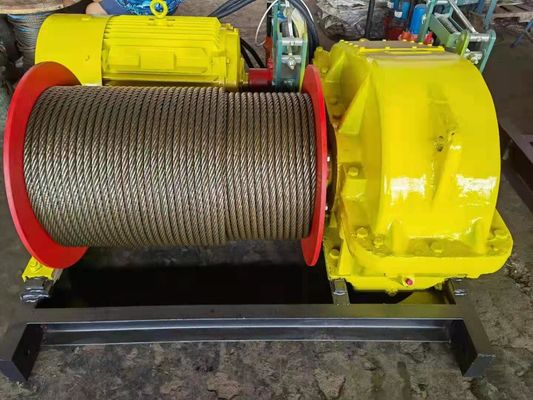

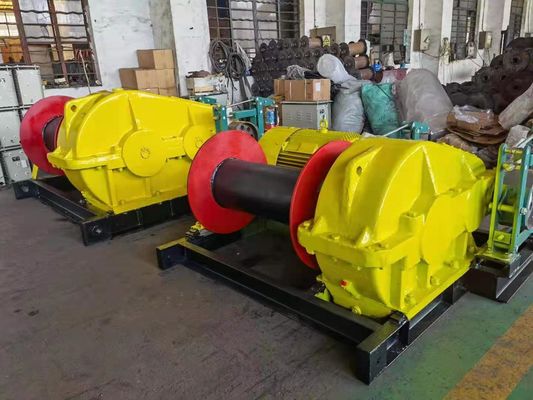

40m/Min Electric Wire Rope Winch 35t Lifting For Mine

40m/Min Electric Wire Rope Winch 35t Lifting For Mine
40m/Min Electric Wire Rope Winch 35t Lifting For Mine 40m/Min Electric Wire Rope Winch 35t Lifting For Mine 40m/Min Electric Wire Rope Winch 35t Lifting For Mine

Large Image :  40m/Min Electric Wire Rope Winch 35t Lifting For Mine

Product Details:
Place of Origin: China
Brand Name: JCYC/OEM
Certification: CE&ISO
Model Number: JK
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD negotiate per unit
Packaging Details: Plywood case
Delivery Time: 10 -15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability: 500 pcs per month
Detailed Product Description
Product Name: Fast Speed 40m/min Electric Winch For Mine Lifting Weight: 0.25t To 35t
Maximum Lifting Height: 0-1000m Or At Request Application: Cranes,Boat,Mining,Marine,Construction Etc.
Cable Rated Speed: 6-40 M/min Or At Request Voltage: 220V ~ 690V 3P 50HZ/60HZ
High Light:

40m/Min Electric Wire Rope Winch

,

Mine Electric Wire Rope Winch

,

35t Lifting Electric Wire Rope Winch

Fast Speed 40m/min Electric Winch for Mine





Brief Introduction



JK fast series Winch mainly used for large and oversize concrete of steel installation and disassembly of mechanical equipment.This structural characteristic is wirerope orderly arrangement lifting is safe and realiable.It is suitable for bridge port and ect road and bridge engineering and large factories and mines engineering equipments installation.



JK fast speed electric winch


If you need to lift and pull heavy loads with higher efficiency, a high speed winch will be a better choice. Line speed of the winch ranges from 20m/min to 40m/min. This type of winch equipment helps you do the job quickly and safely. It can also be specifically designed to fit on cranes and derricks, replacing an electric hoist as the main hoisting mechanism.



Model Cable rated pull(kg) Cable rated speed(m/min) Wire rope dia. (Φmm) Wire rope length(m) Drum(mm) Dia(Φ) Motor power(kw)
JK0.5 500 20/30 Φ7.7 50/120 Φ140*300 2.2
JK1 1000 20/30 Φ9.3 70/120 Φ165*415 5.5/7.5
JK1.5 1500 20/30 Φ12.5 80/180 Φ219*450 11/15
JK2 2000 20/30 Φ12.5 80/180 Φ219*480 11/15
JK3 3000 20/30 Φ15.5 100/200 Φ219*525 15/18.5
JK5 5000 20/30 Φ21.5 100/200 Φ325*620 22/30
JK8 8000 20 Φ26 300 Φ500*900 30
JK10 10000 19 Φ30 450 Φ550*1000 45



Advantages



1.High safety and precision;
2.Safety protection device;
3.Starting and stopping smoothly;
4.Reasonable structure, easy maintenance;
5.Top quality with competitive price.

40m/Min Electric Wire Rope Winch 35t Lifting For Mine 0



Questions before make quotation:

1. Purpose and application of the winch, lifting or pulling?
2. Capacity?
3. Rope volume?
4. Requirement for rope speed?
5. Power supply?
7. Any other specific request such as double speed, additional equipment?
The more detail, the more accurate quotation.



Factory show



40m/Min Electric Wire Rope Winch 35t Lifting For Mine 1

40m/Min Electric Wire Rope Winch 35t Lifting For Mine 2

40m/Min Electric Wire Rope Winch 35t Lifting For Mine 3
