Motorized Trolley 10 Ton Electric Hydraulic Winch For Heavy Vertical Lifting

Motorized Trolley 10 Ton Electric Hydraulic Winch For Heavy Vertical Lifting
Motorized Trolley 10 Ton Electric Hydraulic Winch For Heavy Vertical Lifting Motorized Trolley 10 Ton Electric Hydraulic Winch For Heavy Vertical Lifting Motorized Trolley 10 Ton Electric Hydraulic Winch For Heavy Vertical Lifting

Large Image :  Motorized Trolley 10 Ton Electric Hydraulic Winch For Heavy Vertical Lifting

Product Details:
Place of Origin: China
Brand Name: JCYC/OEM
Certification: CE&ISO
Model Number: JM/JK
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD negotiate per unit
Packaging Details: Plywood case
Delivery Time: 10 -15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability: 500 pcs per month
Detailed Product Description
Product Name: Electric Hydraulic Winch Lifting Weight: 1-30T
Maximum Lifting Height: 0-1000m Or At Request Application: Cranes,Boat,Mining,Marine,Construction Etc.
Cable Rated Speed: 6-40 M/min Or At Request Voltage: 220V ~ 690V 3P 50HZ/60HZ
Color: As Per Your Request
High Light:

10 Ton Electric Hydraulic Winch

,

Motorized Trolley Electric Hydraulic Winch

,

40m/Min Vertical Lifting Electric Hydraulic Winch

10 ton Electric Hydraulic Winch with Motorized Trolley for Heavy Vertical Lifting





Brief Introduction



This series of electric winch is mainly used for material lifting, hauling heavy loads and cranes as the main hoist in building construction. It is a special hoist for hoist, gantry and hoisting trolley. It is suitable for civil engineering construction and small equipment installation of buildings, mining area lifting and factories.

The standard capacity of electric winch: 1t, 2t, 3t, 5t, 6t, 8t, 10t, 12t,16t, 20t, 25t, 30t. can reach 60t with help of pulley blocks.

The control models: Hand wheel switch or control box with push buttons or remote control.



Slow speed used for crane and installation industry feature



  • Precision needle bearing used in high-load areas offering lower friction level and longer life;
  • Electrical parts are protected by steel box from rain;
  • Emergency stop button for emergency use;
  • Steel boxes equiped with lock to avoid other people in addition to operator to operate winches;
  • It could lift, drag and drop vertically and obliquely;
  • Rope winding orderly, safe and reliable performance;
  • The big curvature, fiber oil lubrication, galvanized cover of the wire rope extend its service life;
  • Corrosion resistant painting;
  • Running stably, reliable operation with low noise (not exceed 85dB);
  • Pass 1.25 times static overload test.



Model Cable rated pull
(kg)
Cable rated
speed
(m/min)
Wire rope
(ɸmm)
Reduction box Drum(mm)
Type Transmission
ratio
Dia(ɸ) Length
JM2 2000 12 15.53 JZQ350 23.34 260 480
JM3 3000 10 17 JZQ350 31.50 310 510
JM5 5000 11 21.50 JZQ400 23.34 400 730
JM8 8000 10 26 JZQ500 31.50 500 900
JM10 10000 9 30 JZQ650 40.17 550 1000
JM12 12000 9 32 JZQ650 40.17 650 1000
JM16 16000 6.6 36.5 JZQ750 31.50 750 1830
JM20 20000 7.7 39 JZQ750 31.50 750 1830
JM25 25000 8.5 42 JZQ750 31.50 850 1925
JM30 30000 8.5 48 JZQ850 23.34 960 1960



JK fast speed electric winch


If you need to lift and pull heavy loads with a higher efficiency, a high speed winch may be a better choice. Line speed of the winch ranges from 20m/min to 35m/min. This type of winch equipment helps you do the job quickly and safely. It can also be specifically designed to fit on cranes and derricks, replacing an electric hoist as the main hoisting mechanism.



Model Cable rated pull(kg) Cable rated speed(m/min) Wire rope dia. (Φmm) Wire rope length(m) Drum(mm) Dia(Φ) Motor power(kw)
JK0.5 500 20/30 Φ7.7 50/120 Φ140*300 2.2
JK1 1000 20/30 Φ9.3 70/120 Φ165*415 5.5/7.5
JK1.5 1500 20/30 Φ12.5 80/180 Φ219*450 11/15
JK2 2000 20/30 Φ12.5 80/180 Φ219*480 11/15
JK3 3000 20/30 Φ15.5 100/200 Φ219*525 15/18.5
JK5 5000 20/30 Φ21.5 100/200 Φ325*620 22/30
JK8 8000 20 Φ26 300 Φ500*900 30
JK10 10000 19 Φ30 450 Φ550*1000 45



Advantages



1.High safety and precision;
2.Safety protection device;
3.Starting and stopping smoothly;
4.Reasonable structure, easy maintenance;
5.Top quality with competitive price.

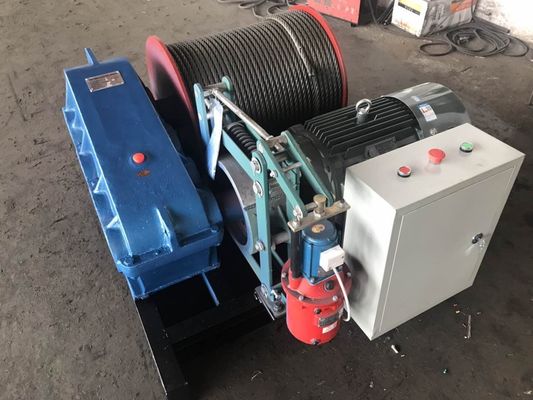

Motorized Trolley 10 Ton Electric Hydraulic Winch For Heavy Vertical Lifting 0



Questions before make quotation:

1. Purpose and application of the winch, lifting or pulling?
2. Capacity?
3. Rope volume?
4. Requirement for rope speed?
5. Power supply?
7. Any other specific request such as double speed, additional equipment?
The more detail, the more accurate quotation.



Factory show

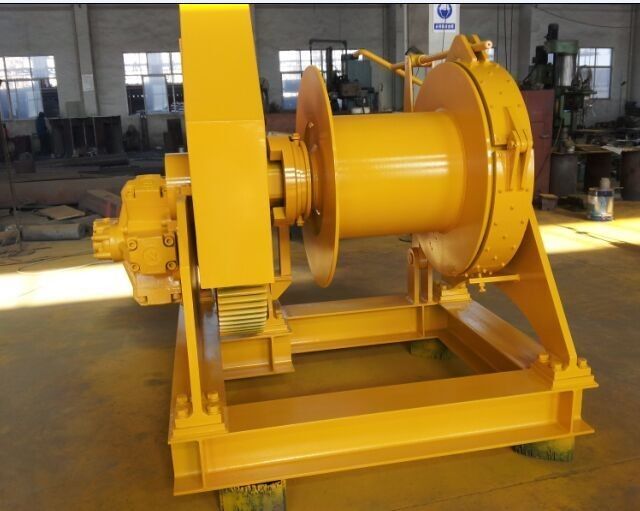

Motorized Trolley 10 Ton Electric Hydraulic Winch For Heavy Vertical Lifting 1

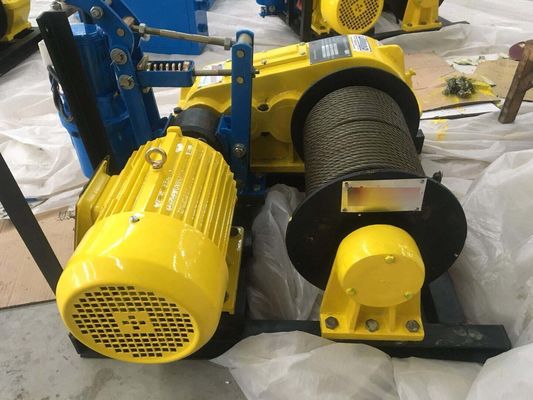

Motorized Trolley 10 Ton Electric Hydraulic Winch For Heavy Vertical Lifting 2
