Product Details:
Payment & Shipping Terms:
|
| Product Name: | 30 Ton Maximum Lifting Weight Electric Wire Rope Winch 6 - 9 M/Min Cable Rated Speed | Lifting Weight: | 300kg To 30000kg |
|---|---|---|---|
| Maximum Lifting Height: | 0-1000m Or At Request | Application: | Cranes,Boat,Mining,Marine,Construction |
| Cable Rated Speed: | 6-30 M/min Or At Request | Voltage: | 380V/220-50HZ/60HZ |
| High Light: | Construction 30T Electric Lifting Winch,Electric Lifting Winch 30m/Min,1000m Lifting Electric Rope Winch |
||

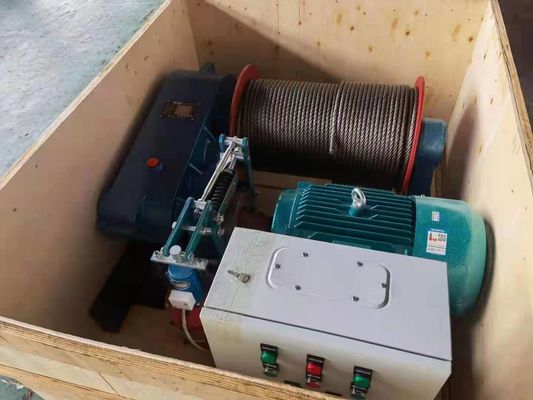

Fast Speed Construction Lifting Electric Winches With Low-voltage Control Box
Brief overview

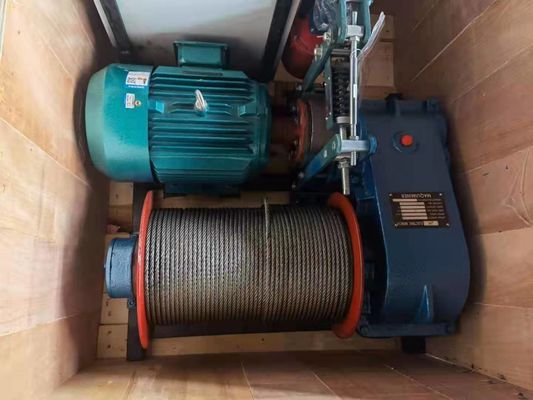

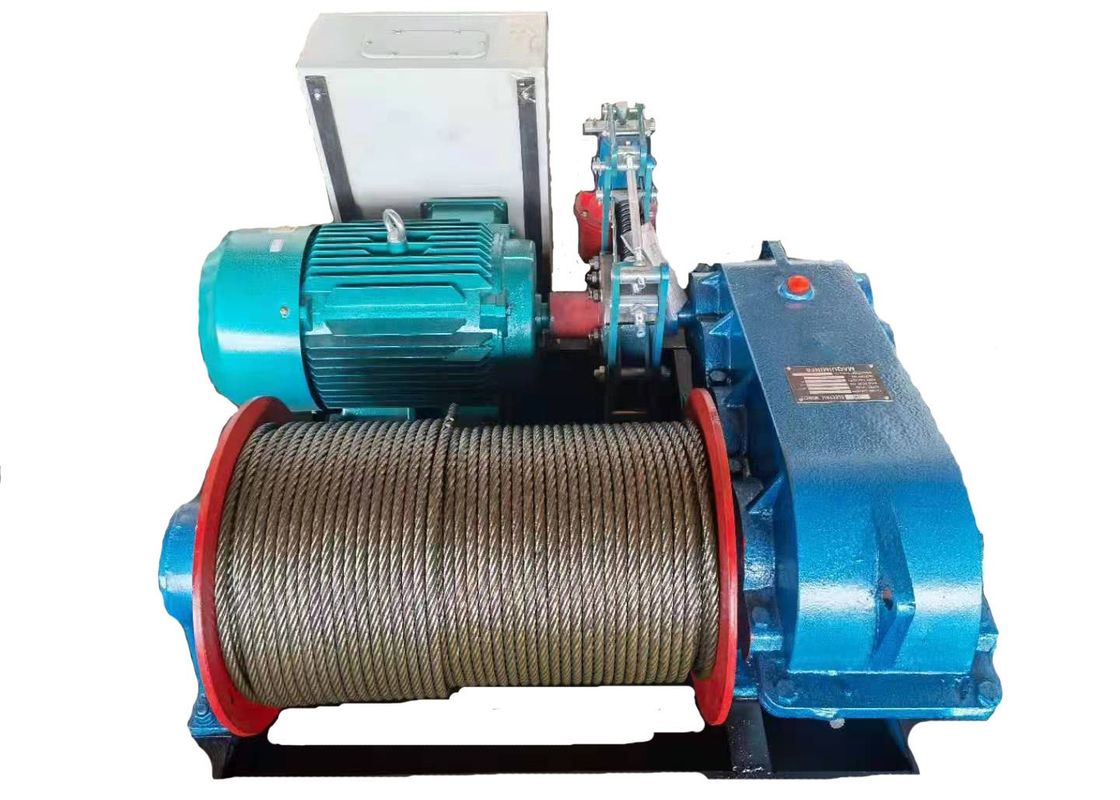

This wire rope electric winch is gear reducer driving winch. This series of electric winch is mainly used for hoisting, pulling and unloading, towing the heavy cargo, such as various types of large and medium sizes of concrete, steel structure, installation and disassembly of mechanical equipment. It's applicable to civil construction and installation projects of construction and installation enterprises, mining areas and factories, etc.
Slow speed use for crane and installation industry feature
Technical parameters
| Model | Cable rated pull (kg) |
Cable rated speed (m/min) |
Wire rope (ɸmm) |
Reduction box | Drum(mm) | ||
| Type | Transmission ratio |
Dia(ɸ) | Length | ||||
| JM2 | 2000 | 12 | 15.53 | JZQ350 | 23.34 | 260 | 480 |
| JM3 | 3000 | 10 | 17 | JZQ350 | 31.50 | 310 | 510 |
| JM5 | 5000 | 11 | 21.50 | JZQ400 | 23.34 | 400 | 730 |
| JM8 | 8000 | 10 | 26 | JZQ500 | 31.50 | 500 | 900 |
| JM10 | 10000 | 9 | 30 | JZQ650 | 40.17 | 550 | 1000 |
| JM12 | 12000 | 9 | 32 | JZQ650 | 40.17 | 650 | 1000 |
| JM16 | 16000 | 6.6 | 36.5 | JZQ750 | 31.50 | 750 | 1830 |
| JM20 | 20000 | 7.7 | 39 | JZQ750 | 31.50 | 750 | 1830 |
| JM25 | 25000 | 8.5 | 42 | JZQ750 | 31.50 | 850 | 1925 |
| JM30 | 30000 | 8.5 | 48 | JZQ850 | 23.34 | 960 | 1960 |
JK fast speed electric winch
Technical parameters
| Model | Cable rated pull(kg) | Cable rated speed(m/min) | Wire rope dia. (Φmm) | Wire rope length(m) | Drum(mm) Dia(Φ) | Motor power(kw) |
| JK0.5 | 500 | 20/30 | Φ7.7 | 50/120 | Φ140*300 | 2.2 |
| JK1 | 1000 | 20/30 | Φ9.3 | 70/120 | Φ165*415 | 5.5/7.5 |
| JK1.5 | 1500 | 20/30 | Φ12.5 | 80/180 | Φ219*450 | 11/15 |
| JK2 | 2000 | 20/30 | Φ12.5 | 80/180 | Φ219*480 | 11/15 |
| JK3 | 3000 | 20/30 | Φ15.5 | 100/200 | Φ219*525 | 15/18.5 |
| JK5 | 5000 | 20/30 | Φ21.5 | 100/200 | Φ325*620 | 22/30 |
| JK8 | 8000 | 20 | Φ26 | 300 | Φ500*900 | 30 |
| JK10 | 10000 | 19 | Φ30 | 450 | Φ550*1000 | 45 |
Advantages
Questions before make quotation:
1. Purpose of the winch, lifting or pulling?
2. Where will you use the winch? construction, mine or marine?
3. Capacity?
4. Rope volume?
5. Requirement for rope speed?
6. Voltage?
7. Any other specific request such as double speed, additional equipment?
The more detail, the more accurate quotation.
