200Kg Lifting 3 Phase Electric Wire Rope Winch 220v

Products

200Kg Lifting 3 Phase Electric Wire Rope Winch 220v

MOQ:	1 unit
Price:	USD negotiate per unit
Standard Packaging:	Plywood case
Delivery Period:	10 -15 working days
Payment Method:	L/C, T/T, Western Union, D/P, D/A, MoneyGram
Supply Capacity:	500 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

JCYC

Certification

CE&ISO

Model Number

KDJ

Product Name:

3 Phase Electric Wire Rope Winch 220v - 440v 200Kg - 10000 Kg Capacity

Lifting Weight:

200kg To 10000kg

Rope Length:

0-100m Or At Request

Motor:

4pol 6pol

Power Supply:

3 Phase 220V/380V/415V/440V/480V 50/60HZ

Max. Cap:

10000 Kg

Highlight:

3 Phase Electric Wire Rope Winch

200Kg Lifting Electric Wire Rope Winch

220v Electric Wire Rope Winch

Product Description

3 Phase Electric Wire Rope Winch 220v - 440v 200Kg - 10000 Kg Capacity

Product Description

KDJ Multifunctional Electric Hoist is a steel wire rope hoist for lifting goods, the capacity is from 0.3T to 1T, the length of wire rope is from 30M to 60M more,the usage is pulling and lifting,except exclusive-use, also can match-use with electric trolley and plain trolley, geared trolley, these trolleys with simple structure, light weight, easy to load and unload. Be widely used in warehouse, construction and many kinds of producing-line.
The product has the characteristic brake promptly,small volume,light, compact, convenient and easy to maintain.

Product parameters

Model	Load rated (kg)	Speed M/min	Motor hpxp	Voltage	Lifting	Wire Rope	G/ N.W.	Packing size
				Freq.	Height	φmmxm	(KG)	cm
					(M)
KDJ-200E	200	10-15	0.8x4	110-240v 1ph 50/6hz	29	6x30	36.5//35.2	58×33×31
KDJ-200E	200	12-18	0.8x4		29	6x30	36.5//35.2	58×33×31
KDJ-250E	250	10-15	1.0x4		29	6x30	41/39.5	61×33×32
KDJ-250E	250	12-18	1.0x4		29	6x30	41/39.5	61×33×32
KDJ-300E	300	10-15	1.5x4		29	7x30	47/45.5	64×33×32
KDJ-300E	300	12-18	1.5x4		29	7x30	47/45.5	64×33×32
KDJ-300E1	300	10-15	1.5x4	220-440v 3 ph 50/60hz	29	7x30	50/48	64×33×32
KDJ-300E1	300	12-18	1.5x4		29	7x30	50/48	64×33×32
KDJ-500E1	500	12-18	2.5x4		58	9x60	156/139	104×51×62
KDJ-750E1	750	12-18	3.5x4		58	9x60	167/150	104×51×62
KDJ-1000E1	1000	12-18	5x4			11x60	178/161	104×51×62
KDJ-2200E1	2200	7-12.5	7.5x4		97	16x100	500/450	156×70×81
KDJ-3200E1	3200	6.3-8.8	7.5x6		97	18x100	550/500	156×70×81
KDJ-3500E1	3500	6.3-8.8	10x4		140	18 x143	600/550	156×70×81
KDJ-5000E1	5000	8.0-12	15x4		192	22.4 x200	2700/2580	210×120×135
KDJ-10000E1	10000	7-11	30x4		235	32 x 250	3200/3080	230×120×135

FEATURES
Wire Rope Fixing:	No escape of wire rope from the drum by means of P.T. screwdevice.
Drum Transmission:	The shaft direct driving drum provides rope replacement and alternation of rotation with easy.
Electromagnetic:	Designed for both static and dynamic loading. Brake will auromatically apply in the event of power cut. Large friction surfacr area. No adjustments or serving requirement.
Gear Box:	Provides strengh, durability an non-worry of breakage of structure.
Induction Motor:	IEC induction motor mounted provides reallity availability, cost effective and service spares availability world wide.
Ball Bearings:	High efficient and heavy duty bearings provide long life.
Planetary and Anti-wear Gears:	Compact, load sharing minimizes size, weight, and cost. Full depth spur gear planetary reductions ensure quiet and long life.
Machine Fixture:	It is made of super armor plate, used for suspender, lifter and girder.

Facotry show

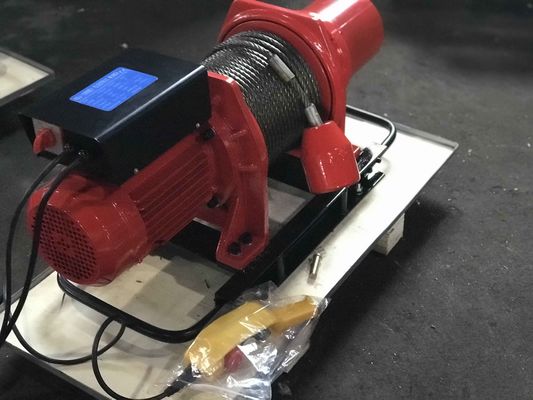

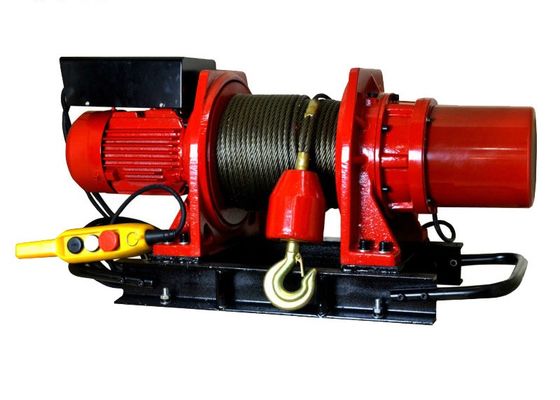

200Kg Lifting 3 Phase Electric Wire Rope Winch 220v 0

200Kg Lifting 3 Phase Electric Wire Rope Winch 220v 1

200Kg Lifting 3 Phase Electric Wire Rope Winch 220v 2

Questions before make quotation:
The more information you provide, the accurate solution we can prepare for you!
1-Capacity?
2-Lifting height?
3-what is lifting material? How about working environment?
4- Power supply and control voltage?
