Name: Polishing Manganese G80 Lifting Chain 8mm 10mm 13mm
Brand: Chongqing Shanyan Crane Machinery Co., Ltd.
SKU: EN818-2 Blackened Lifting Chain
Availability: InStock

MOQ:	500 meters
Price:	Negotiable
Standard Packaging:	Metal bucket
Delivery Period:	30 working day
Payment Method:	Western Union, L/C, T/T, D/A, D/P
Supply Capacity:	80000 meters per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

JCYC/OEM

Certification

CE ISO9001 Manufacturing licence

Model Number

EN818-2 Blackened Lifting Chain

∮ (Min.):

6±0.24

∮(Max.):

32±1.6

L(Min.):

18±0.5

L(Max.):

96±2.9

B1(mm):

41.6

Material:

Manganese Steel

Highlight:

Polishing G80 Lifting Chain

8mm G80 Lifting Chain

Manganese G80 Lifting Chain

Product Description

G80 Lifting Chain Polishing And Black Blackened Lifting Chains for Electric Chain Hoist

1. Product Profile:

EN818-2 BLACKENED LIFTING CHAIN

Blackened lifting chain, EN818-2 Model, 6mm-22mm with self-color, polishing and black blackened

2. Parameter:

Item		WLL(t)	B.L(t)	∮(mm)	L(mm)	b1(mm)Min.	b2(mm)Max.
SY-C1001-6	6mm	1.12	4.48	6±0.24	18±0.5	7.8	22.2
SY-C1001-7	7mm	1.5	6	7±0.28	21±0.6	9.1	25.9
SY-C1001-8	8mm	2	8	8±0.32	24±0.7	10.4	29.6
SY-C1001-10	10mm	3.15	12.6	10±0.4	30±0.9	13	37
SY-C1001-13	13mm	5.3	21.2	13±0.52	39±1.2	16.9	48.1
SY-C1001-16	16mm	8	32	16±0.64	48±1.4	20.8	59.2
SY-C1001-18	18mm	10	40	18±0.9	54±1.6	23.4	66.6
SY-C1001-20	20mm	12.5	50	20±0.1	60±1.8	26	74
SY-C1001-22	22mm	15	60	22±1.1	66±2	28.6	81.4
SY-C1001-26	26mm	21.2	84.8	26±1.3	78±2.3	33.8	96.2
SY-C1001-32	32mm	31.5	126	32±1.6	96±2.9	41.6	118

3. Features and Advantages:

1. High strength alloy steel

2. Proof tested at 2.5 times of the working load limit

3. Ultimate load at 4 times of the working load limit
4. Painted, plastic coating, hot-dip galvanized and electric galvanized, etc
5. JCYC brand or special customized marking

6. High quality and wide adaptation.

7. Excellent performance.

8. 1 year warranty

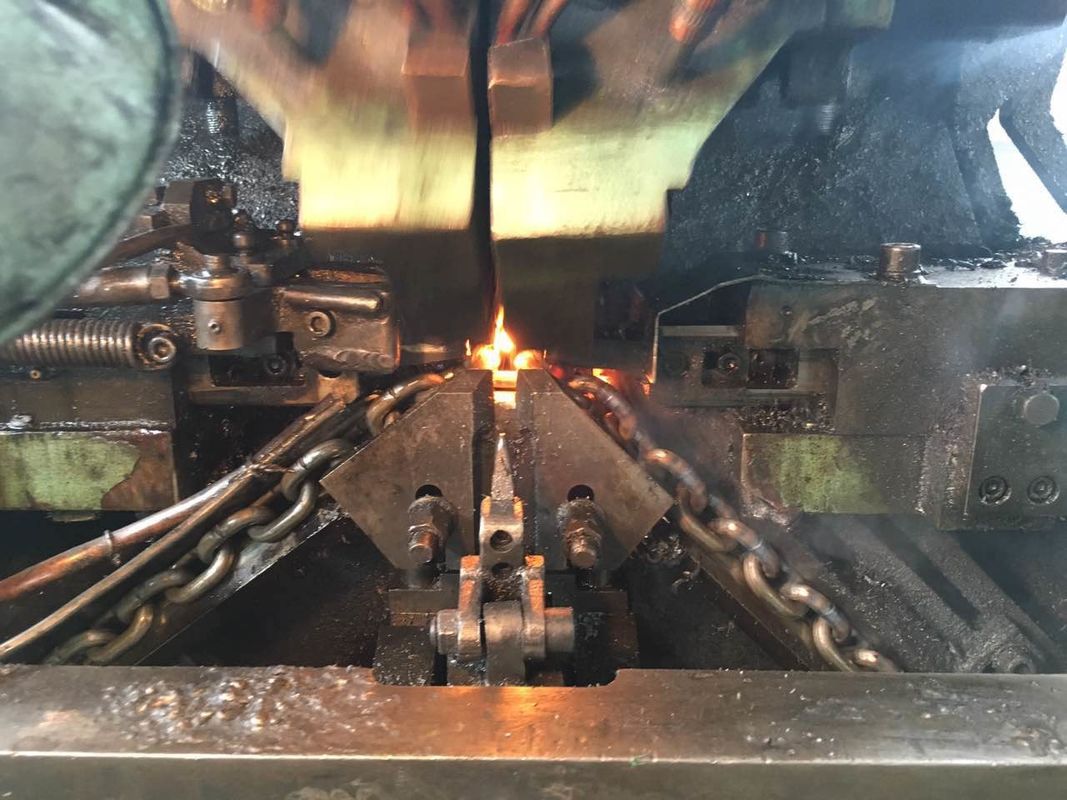

4. Photo:

Polishing Manganese G80 Lifting Chain 8mm 10mm 13mm

5. Company Message:

OEM & ODM orders are both ok. Welcomes sample order to test our quality and service.

Polishing Manganese G80 Lifting Chain 8mm 10mm 13mm
