Product Details:
Payment & Shipping Terms:
|
| Product Name: | G80 Load Chain | Material: | Alloy Steel |
|---|---|---|---|
| Technology: | Dual Oxidation | Size: | 6mm/8mm/10mm |
| Application: | Lifting | Usage: | Chain Sling&chain Hoist |
| High Light: | grade 80 lifting chain,grade 80 alloy chain |
||

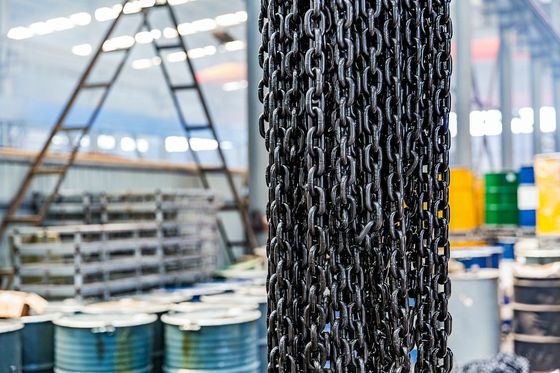

Alloy Steel G80 Load Lifting Chain For Chain Sling And Chain Hoist
Product Description
Grade: G80
Material: 20MN2 25MNV
Standard: EN818-2
Surface treatment: Black oxidation, zinc plated, self color
Proof test at 2.5 times the working load limit
Ultimate load is 4 times the working load limit
Product Parameter:
| Diameter(mm) | Inside Length(mm) | Outside width(mm) | Weight(kg/m) | Test load (KN) |
| 6 | 18 | 21 | 0.79 | 27 |
| 8 | 24 | 28 | 1.38 | 48 |
| 10 | 30 | 35 | 2.2 | 76 |
| 12 | 36 | 42.2 | 3.3 | 117 |
| 14 | 42 | 49 | 4.13 | 150 |
| 16 | 48 | 56 | 5.63 | 192 |
| 18 | 54 | 63 | 6.85 | 246 |
| 20 | 60 | 70 | 8.6 | 300 |
| 22 | 66 | 77 | 10.5 | 366 |
