Product Details:
Payment & Shipping Terms:
|
| Color: | Blackened Color | Technic: | Galvanize |
|---|---|---|---|
| Material: | Blackened Steel | Model: | EN818-2 |
| B.L (Min.): | 4.48 T | B.L (Max.): | 126 T |
| High Light: | steel lifting chain,grade 80 lifting chain |
||
Black 6mm - 32mm Lifting Chain / Blackened Chain Polishing And Black Blackened
1. Product Profile:

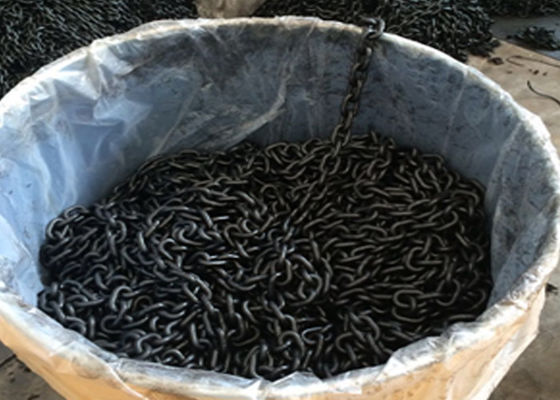

EN818-2 BLACKENED LIFTING CHAIN
Blackened lifting chain, EN818-2 Model, 6mm-22mm with self-color, polishing and black blackened
2. Features and Advantages:
1. High strength alloy steel
2. Proof tested at 2.5 times of the working load limit
3. Ultimate load at 4 times of the working load limit
4. Painted, plastic coating, hot-dip galvanized and electric galvanized, etc
5. JCYC brand or special customized marking
6. High quality and wide adaptation.
7. Excellent performance.
8. 1 year warranty
3. Parameter:
| Item | WLL(t) | B.L(t) | ∮(mm) | L(mm) | b1(mm)Min. | b2(mm)Max. | |
| SY-C1001-6 | 6mm | 1.12 | 4.48 | 6±0.24 | 18±0.5 | 7.8 | 22.2 |
| SY-C1001-7 | 7mm | 1.5 | 6 | 7±0.28 | 21±0.6 | 9.1 | 25.9 |
| SY-C1001-8 | 8mm | 2 | 8 | 8±0.32 | 24±0.7 | 10.4 | 29.6 |
| SY-C1001-10 | 10mm | 3.15 | 12.6 | 10±0.4 | 30±0.9 | 13 | 37 |
| SY-C1001-13 | 13mm | 5.3 | 21.2 | 13±0.52 | 39±1.2 | 16.9 | 48.1 |
| SY-C1001-16 | 16mm | 8 | 32 | 16±0.64 | 48±1.4 | 20.8 | 59.2 |
| SY-C1001-18 | 18mm | 10 | 40 | 18±0.9 | 54±1.6 | 23.4 | 66.6 |
| SY-C1001-20 | 20mm | 12.5 | 50 | 20±0.1 | 60±1.8 | 26 | 74 |
| SY-C1001-22 | 22mm | 15 | 60 | 22±1.1 | 66±2 | 28.6 | 81.4 |
| SY-C1001-26 | 26mm | 21.2 | 84.8 | 26±1.3 | 78±2.3 | 33.8 | 96.2 |
| SY-C1001-32 | 32mm | 31.5 | 126 | 32±1.6 | 96±2.9 | 41.6 | 118 |
4. Company Message:
OEM & ODM orders are both ok. Welcomes sample order to test our quality and service.
