| Product Name: | Electric Winch | Brand: | JCYC/OEM |
|---|---|---|---|
| Application: | Material Lifting | Capacity: | 30 Ton |
| Rope Length: | As Per Request | Warranty: | 1 Year |
| High Light: | Mining Endless Electric Lifting Winch,30T Electric Lifting Winch,500m Electric Lifting Winch |
||
100~500m Wire Rope 10 Ton 20Ton 30Ton Mining Endless Electric Lifting Winch
Product introduction:
The electric winch is mainly applied to hoisting, pulling and loading or unloading the weight. For example, it can be used to mount and dismount large and medium-sized concrete and steel structure and machinery equipment. Also, it could be utilized as the lifting mechanism of hoisting machinery. This product features orderly-arranged steel wire ropes, safe slinging, smooth transmission and convenient maintenance. This product can be used for the equipment installation in bridge building, port construction, wharf construction, shipyard building and other large-scale factories and mines projects. We can also custom design and build the winch to your special requirements.
JK fast speed electric winch
If you need to lift and pull heavy loads with a higher efficiency, a high speed winch may be a better choice. Line speed of the winch ranges from 20m/min to 35m/min. This type of winch equipment helps you do the job quickly and safely. It can also be specifically designed to fit on cranes and derricks, replacing an electric hoist as the main hoisting mechanism.
Technical Parameters:
| Model | Cable rated pull(kg) | Cable rated speed(m/min) | Wire rope dia. (Φmm) | Wire rope length(m) | Drum(mm) Dia(Φ) | Motor power(kw) |
| JK0.5 | 500 | 20/30 | Φ7.7 | 50/120 | Φ140*300 | 2.2 |
| JK1 | 1000 | 20/30 | Φ9.3 | 70/120 | Φ165*415 | 5.5/7.5 |
| JK1.5 | 1500 | 20/30 | Φ12.5 | 80/180 | Φ219*450 | 11/15 |
| JK2 | 2000 | 20/30 | Φ12.5 | 80/180 | Φ219*480 | 11/15 |
| JK3 | 3000 | 20/30 | Φ15.5 | 100/200 | Φ219*525 | 15/18.5 |
| JK5 | 5000 | 20/30 | Φ21.5 | 100/200 | Φ325*620 | 22/30 |
| JK8 | 8000 | 20 | Φ26 | 300 | Φ500*900 | 30 |
| JK10 | 10000 | 19 | Φ30 | 450 | Φ550*1000 |
45 |
JM slow speed electric winch
The slow speed winch, as the name implies, works at a slow speed that ranges from 5m/min to 20m/min. This type of winch provides more precise load control and accurate positioning. It is ideal for various engineering projects. With marine duty design, the winch can also be used on the boat and on the shore for anchoring, mooring or towing purposes.
| Model | Cable rated pull(kg) | Cable rated speed(m/min) | Wire rope (Φmm) | Wire rope length(m) | Drum(mm) Dia(Φ) | Motor power(kw) |
| JM0.5 | 500 | 15 | Φ7.7 | 50/120 | Φ140*300 | 2.2 |
| JM1 | 1000 | 15 | Φ9.3 | 70/120 | Φ165*415 | 5.5 |
| JM1.5 | 1500 | 15 | Φ12.5 | 80/180 | Φ219*450 | 7.5 |
| JM2 | 2000 | 15 | Φ12.5 | 80/180 | Φ219*480 | 7.5 |
| JM3 | 3000 | 15 | Φ15.5 | 100/200 | Φ219*525 | 11 |
| JM5 | 5000 | 9 | Φ19.5 | 250 | Φ325*620 | 11 |
| JM8 | 8000 | 9 | Φ26 | 300 | Φ406*808 | 15 |
| JM10 | 10000 | 9 | Φ30 | 350 | Φ406*900 | 22 |
| JM16 | 16000 | 9 | Φ38 | 400 | Φ550*1000 | 37 |
| JM20 | 20000 | 9 | Φ42 | 450 | Φ650*1300 | 45 |
| JM30 | 30000 | 9 | Φ54 | 450 | Φ900*1500 | 63 |
Questions before make quotation:
1. Purpose of the winch, lifting or pulling?
2. Where will you use the winch? construction, mine or marine?
3. Capacity?
4. Rope volume?
5. Requirement for rope speed?
6. Voltage?
7. Any other specific request such as double speed, additional equipment?
The more detail, the more accurate quotation.

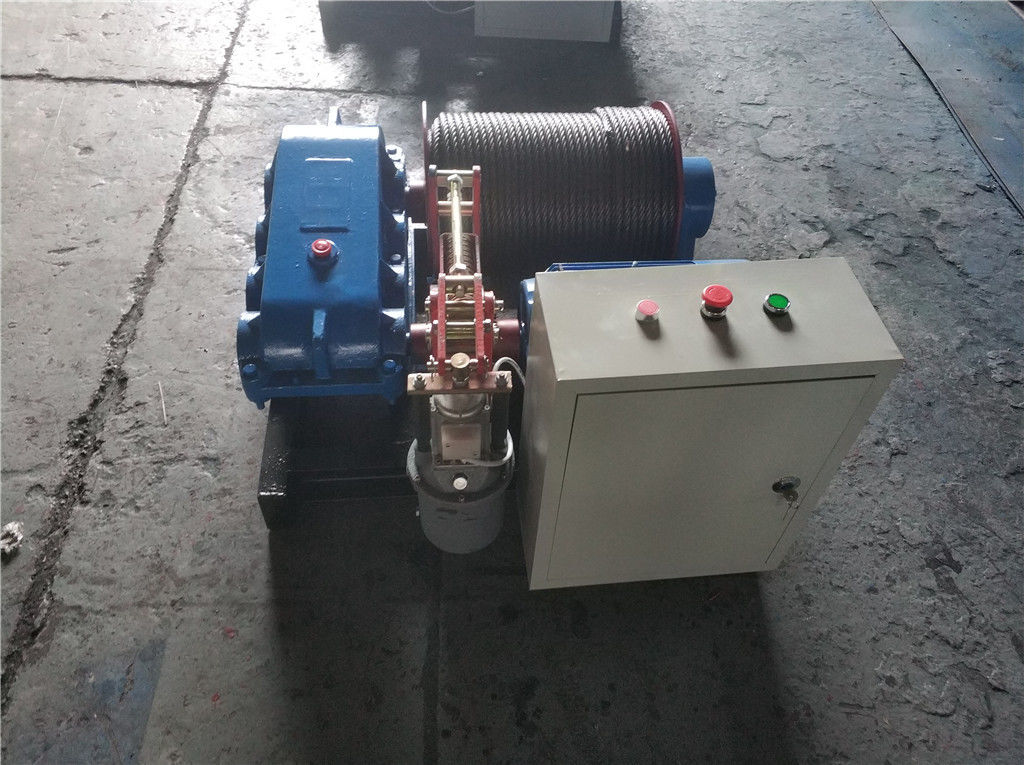

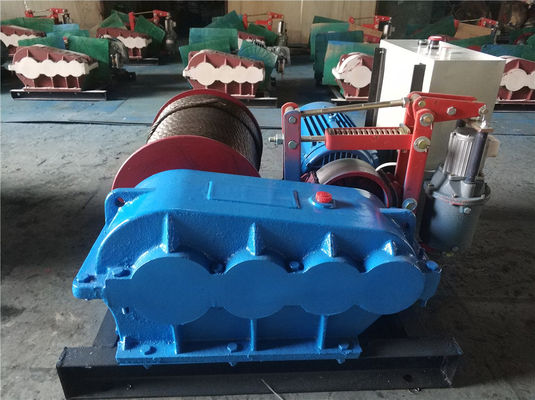

Product show:
