100kg Marine Aluminum Wire Rope Winch 12m/Min Lifting
  • name
  • name
  • name

100kg Marine Aluminum Wire Rope Winch 12m/Min Lifting

MOQ: 1 set
Price: Negotiable
Standard Packaging: Standard export wooden cases
Delivery Period: 15 to 30 working days
Payment Method: L/C, T/T, Western Union
Supply Capacity: 200 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
JCYC
Certification
CE & ISO
Model Number
KCD
Product Name:
Mining / Marine / Boat Electric Winch With 220V / 380V
Brand:
JCYC/OEM
Application:
Material Lifting/pulling
Capacity:
100kg To 2000kg
Rope Length:
0-100m Or At Your Request
Warranty:
1 Year
Highlight:

100kg Aluminum Wire Rope Winch

,

12m/Min Lifting Wire Rope Winch

,

380V Wire Rope Winch

Product Description

Mining / Marine / Boat Electric Winch with 220V / 380V





Product introduction:

KCD type electric hoist winch is a kind of electric winch, widely used in the construction industry, with the feature of stable
and reliable operation, hoisting height is can reach 100 meter.

Applies to industrial enterprise, mining company, normal factory, workshop, railway, sea port, warehouse, stock ground and so on. This KCD winch is for any angle of handing, lifting loading and unloading, it is the common machinery for lifting work in factory and warehouse and individuals.

Features:
1.Wire Rope Fixing: No escape of wire rope from the drum by means of P.T.screw device.
2. Drum Transmission: The shaft direct driving drum provides rope replacement and alteration of rotation with easy.
3.Electromagnetic: Designed for both static and dynamic loading.Brake will automatically apply in the event of power cut.Large friction surface area.No adjustments or serving requirement.
4.Gear Box: Provides strength,durability an non-worry of breakage of structure
5.Special Motor insulated B,with the features of big start torque, small inertia, lower temperature rise,it can work frequently for a long time
6.Driving Gear: The heat treated gear with bearings features durable performance and anti-wear.
7. Machine Fixture: It is made of super armor plate,used for suspender, lifter and girder.

Product Parameters:



Model
Lifting capacity(kg)
Motor power(kw)
Lifting height(m)
Lifting speed(m/min)
Voltage(v)
G.W/N.W(kg)
KCD300
300/600
0.4
0-100
12
220V/380V etc.
35/33
KCD400
400/800
1.0
0-100
12
220V/380V etc.
42/40
KCD500
500/1000
0.8
0-100
14
220V/380V etc.
52/50
KCD750
750/1500
1.5
0-100
12
220V/380V etc.
42/40
KCD1000
1000/2000
3.0
0-100
14
220V/380V etc.
52/50



Questions before make quotation:

1. Purpose of the winch, lifting or pulling?
2. Where will you use the winch? construction, mine or marine?
3. Capacity?
4. Rope volume?
5. Requirement for rope speed?
6. Voltage?
7. Any other specific request such as double speed, additional equipment?
The more detail, the more accurate quotation.



Product show:

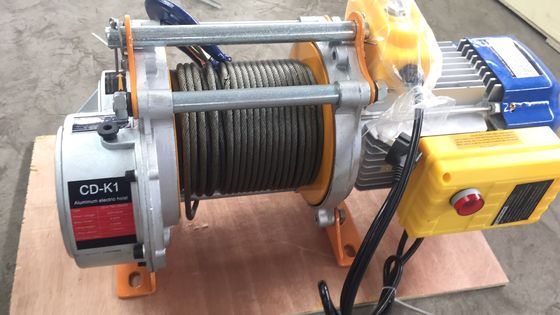

with wireless remote control

100kg Marine Aluminum Wire Rope Winch 12m/Min Lifting 0

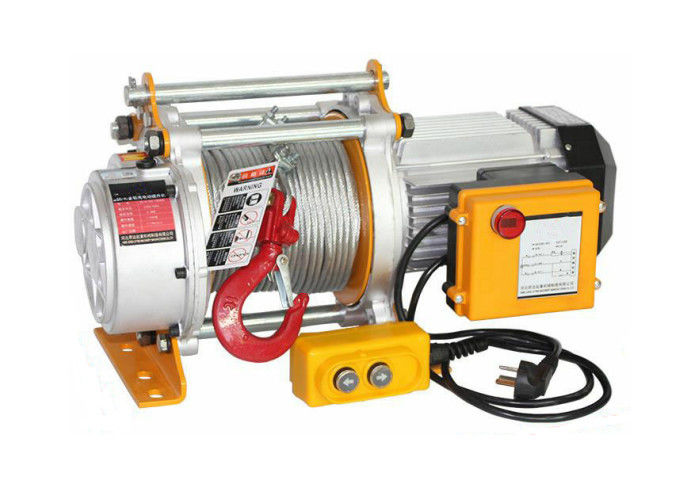

with pendent control

100kg Marine Aluminum Wire Rope Winch 12m/Min Lifting 1

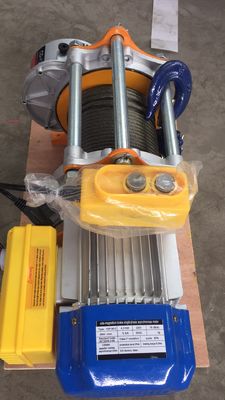

package

100kg Marine Aluminum Wire Rope Winch 12m/Min Lifting 2
