1000kg 220V Endless Wire Rope Winch For Marine 12m/Min Lifting
  • name
  • name
  • name
  • name

1000kg 220V Endless Wire Rope Winch For Marine 12m/Min Lifting

MOQ: 1 set
Price: Negotiable
Standard Packaging: Standard export wooden cases
Delivery Period: 15 to 30 working days
Payment Method: L/C, T/T, Western Union
Supply Capacity: 200 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
JCYC
Certification
CE & ISO
Model Number
KCD
Product Name:
1000kg Single Phase 220V Endless Rope Electric Winch For Marine
Brand:
JCYC/OEM
Application:
Material Lifting/pulling
Capacity:
100kg To 2000kg
Rope Length:
0-100m Or At Your Request
Warranty:
1 Year
Highlight:

220V Endless Wire Rope Winch

,

1000kg Wire Rope Winch

,

12m/Min Lifting Wire Rope Winch

Product Description

1000kg Single Phase 220V Endless Rope Electric Winch for Marine





Product introduction:

KCD type electric hoist winch is a kind of electric winch, widely used in the construction industry, with the feature of stable
and reliable operation, hoisting height is can reach 100 meter.

Applies to industrial enterprise, mining company, normal factory, workshop, railway, sea port, warehouse, stock ground and so on. This KCD winch is for any angle of handing, lifting loading and unloading, it is the common machinery for lifting work in factory and warehouse and individuals.

Configurations:

1. The gearbox case of the winch was made of high-strength aluminum alloy materials with light weight and high precision.
2. The winch increased the module gear which could reduce the noise of the gearbox ,higher safety coefficient and longer use time.
3. The winch equiped with afterburner system,specific motor,case fan,the rotary steel wire rope,Rotating hook and so on.The configuration is very high.
4. The winch looks delicate appearance and high grade.

Product Parameters:



Model
Lifting capacity(kg)
Motor power(kw)
Lifting height(m)
Lifting speed(m/min)
Voltage(v)
G.W/N.W(kg)
KCD300
300/600
0.4
0-100
12
220V/380V etc.
35/33
KCD400
400/800
1.0
0-100
12
220V/380V etc.
42/40
KCD500
500/1000
0.8
0-100
14
220V/380V etc.
52/50
KCD750
750/1500
1.5
0-100
12
220V/380V etc.
42/40
KCD1000
1000/2000
3.0
0-100
14
220V/380V etc.
52/50



Questions before make quotation:

1. Purpose of the winch, lifting or pulling?
2. Where will you use the winch? construction, mine or marine?
3. Capacity?
4. Rope volume?
5. Requirement for rope speed?
6. Voltage?
7. Any other specific request such as double speed, additional equipment?
The more detail, the more accurate quotation.



Product show:

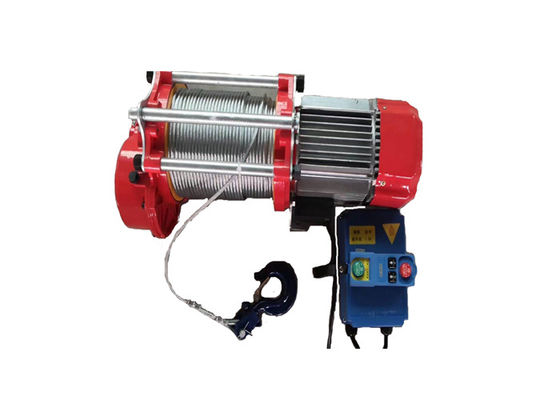

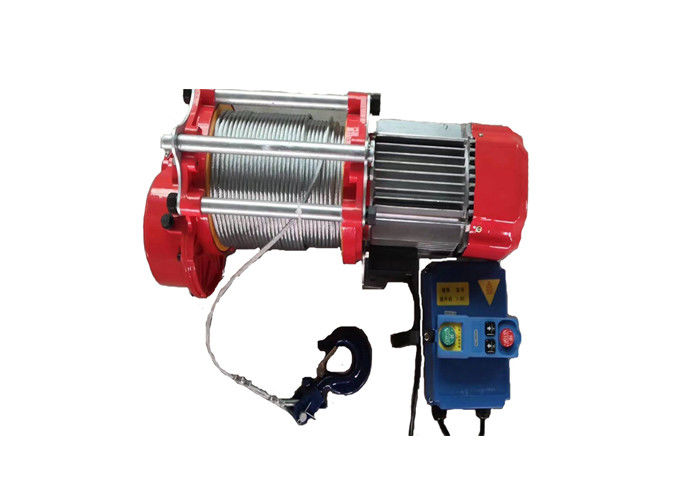

with wireless remote control

1000kg 220V Endless Wire Rope Winch For Marine 12m/Min Lifting 0

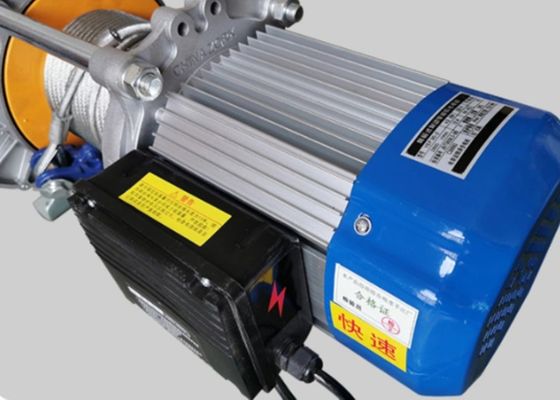

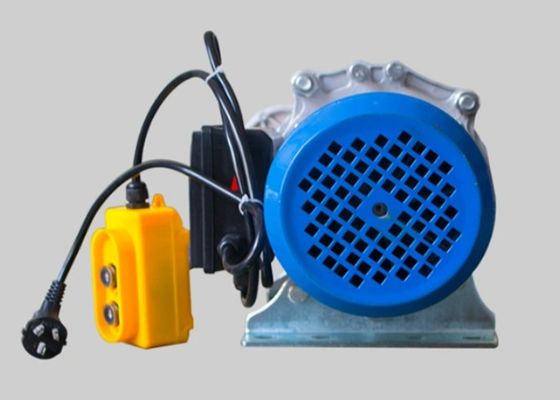

with pendent control

1000kg 220V Endless Wire Rope Winch For Marine 12m/Min Lifting 1



package

1000kg 220V Endless Wire Rope Winch For Marine 12m/Min Lifting 2
