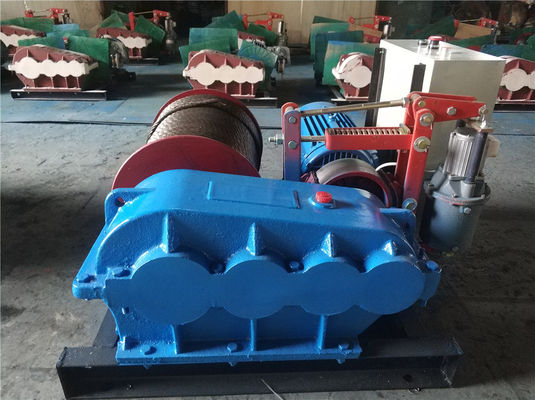

Fast Speed Electric Wire Rope Winch With Disc Brake for Construction
The electric winch is mainly applied to hoisting, pulling and loading or unloading the weight. For example, it can be used to mount and dismount large and medium-sized concrete and steel structure and machinery equipment. Also, it could be utilized as the lifting mechanism of hoisting machinery. This product features orderly-arranged steel wire ropes, safe slinging, smooth transmission and convenient maintenance. This product can be used for the equipment installation in bridge building, port construction, wharf construction, shipyard building and other large-scale factories and mines projects. We can also custom design and build the winch to your special requirements.
Electric motor - for general engineering winches, IP44 protected electric motor is used.
Steel rope - there are two main factors involving in the rope capacity, length and diameter. Wire rope and synthetic rope are available for you to choose from.
Drum - it is a cylindrical device designed to store the rope as well as wind the rope in and out during winching operation.
Transmission system - different types of transmission system are available, including worm gearbox, spur gearbox and planetary gearbox. The selection of winch transmission is determined by your required efficiency and how much torque is going to be transmitted.
Brake - the winch can be delivered with motor brake, transmission brake and drum brake.
Control system - the winch is normally equipped with a control box that comprises up/down push buttons and emergency stop. Remote control is available for a much safer winching operation.
JM slow speed electric winch
The slow speed winch, as the name implies, works at a slow speed that ranges from 5m/min to 20m/min. This type of winch provides more precise load control and accurate positioning. It is ideal for various engineering projects. With marine duty design, the winch can also be used on the boat and on the shore for anchoring, mooring or towing purposes.
- Loading capacity: 0.5~200 t
- Rope capacity: 10~2000 m
- Working speed: 5~20 m/min;(single speed or dual speed)
- Power supply: 220-690V, 50/60HZ, 3Phase
||Cable rated pull(kg)
||Cable rated speed(m/min)
||Wire rope (Φmm)
||Wire rope length(m)
Questions before make quotation:
1. Purpose of the winch, lifting or pulling?
2. Where will you use the winch? construction, mine or marine?
4. Rope volume?
5. Requirement for rope speed?
7. Any other specific request such as double speed, additional equipment?
The more detail, the more accurate quotation.
