Product Details:
Payment & Shipping Terms:
|
| Product Name: | 25 Ton Endless Wire Rope Cable Electric Power Winch | Brand: | JCYC/OEM |
|---|---|---|---|
| Application: | Material Lifting | Capacity: | 25 Ton |
| Rope Length: | 100m To 500m Or At Your Request | Warranty: | 1 Year |
| High Light: | 30T Wire Rope Winch,20m/Min Electric Wire Rope Winch,2.2kw Electric Wire Rope Winch |
||
25 Ton Endless Wire Rope Cable Electric Power Winch
Product introduction:

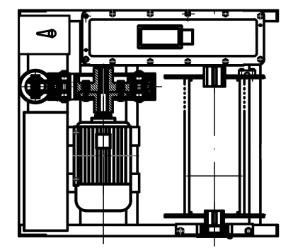

JM/JK electric winch is a small and light weight winch machine with simple structure. It mainly consists of electric motor, rope, drum, transmission system, brake and control system.
Electric motor - for general engineering winches, IP44 protected electric motor is used.
Steel rope - there are two main factors involving in the rope capacity, length and diameter. Wire rope and synthetic rope are available for you to choose from.
Drum - it is a cylindrical device designed to store the rope as well as wind the rope in and out during winching operation.
Transmission system - different types of transmission system are available, including worm gearbox, spur gearbox and planetary gearbox. The selection of winch transmission is determined by your required efficiency and how much torque is going to be transmitted.
Brake - the winch can be delivered with motor brake, transmission brake and drum brake.
Control system - the winch is normally equipped with a control box that comprises up/down push buttons and emergency stop. Remote control is available for a much safer winching operation.
JM slow speed electric winch
The slow speed winch, as the name implies, works at a slow speed that ranges from 5m/min to 20m/min. This type of winch provides more precise load control and accurate positioning. It is ideal for various engineering projects. With marine duty design, the winch can also be used on the boat and on the shore for anchoring, mooring or towing purposes.
| Model | Cable rated pull(kg) | Cable rated speed(m/min) | Wire rope (Φmm) | Wire rope length(m) | Drum(mm) Dia(Φ) | Motor power(kw) |
| JM0.5 | 500 | 15 | Φ7.7 | 50/120 | Φ140*300 | 2.2 |
| JM1 | 1000 | 15 | Φ9.3 | 70/120 | Φ165*415 | 5.5 |
| JM1.5 | 1500 | 15 | Φ12.5 | 80/180 | Φ219*450 | 7.5 |
| JM2 | 2000 | 15 | Φ12.5 | 80/180 | Φ219*480 | 7.5 |
| JM3 | 3000 | 15 | Φ15.5 | 100/200 | Φ219*525 | 11 |
| JM5 | 5000 | 9 | Φ19.5 | 250 | Φ325*620 | 11 |
| JM8 | 8000 | 9 | Φ26 | 300 | Φ406*808 | 15 |
| JM10 | 10000 | 9 | Φ30 | 350 | Φ406*900 | 22 |
| JM16 | 16000 | 9 | Φ38 | 400 | Φ550*1000 | 37 |
| JM20 | 20000 | 9 | Φ42 | 450 | Φ650*1300 | 45 |
| JM30 | 30000 | 9 | Φ54 | 450 | Φ900*1500 | 63 |
Questions before make quotation:
1. Purpose of the winch, lifting or pulling?
2. Where will you use the winch? construction, mine or marine?
3. Capacity?
4. Rope volume?
5. Requirement for rope speed?
6. Voltage?
7. Any other specific request such as double speed, additional equipment?
The more detail, the more accurate quotation.

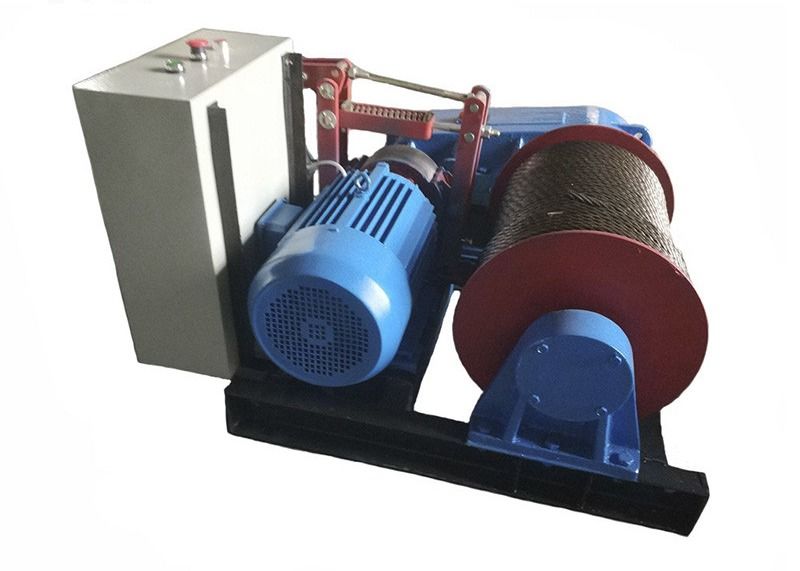

Product show:
