Product Details:
Payment & Shipping Terms:
|
| Product: | KCD Multi Function Electric Wire Rope Winch Hoist | Material: | Aluminum Shell |
|---|---|---|---|
| Color: | As Per Your Request | Capacity: | 250kg -5000kg |
| Lifting Height: | 1-100 Meters | Type: | Foot-mounted Or With Trolley |
| High Light: | 2000kg Electric Wire Rope Winch,Multi Function Wire Rope Winch,ISO Electric Wire Rope Winch |
||

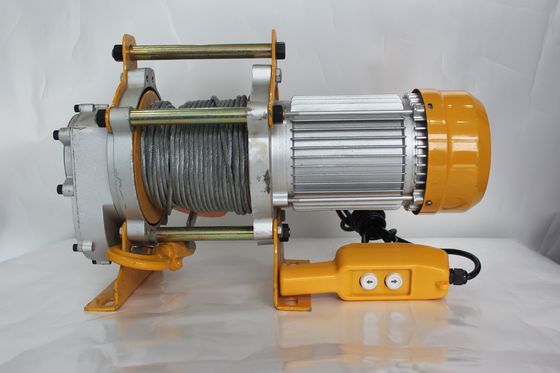

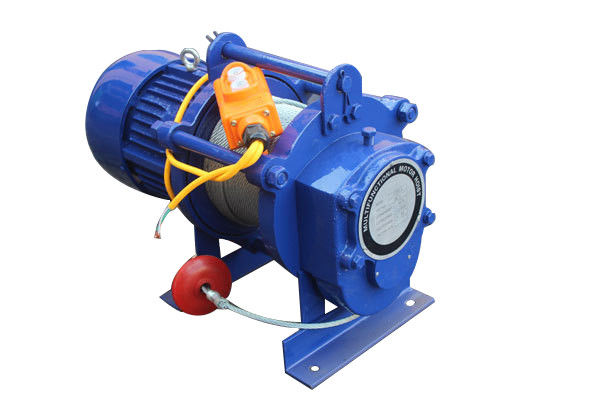

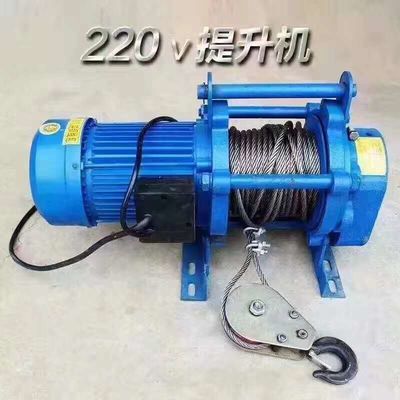

500kg 1000kg 2000kg KCD Multi Function Electric Wire Rope Winch Hoist For Small Construction
Product description:
KCD type electric hoist winch is a kind of electric winch, widely used in the construction industry, with the feature of stable and reliable operation, hoisting height is can reach 100 meter.
Applies to industrial enterprise, mining company, normal factory, workshop, railway, sea port, warehouse, stock ground and so on. This KCD winch is for any angle of handing, lifting loading and unloading, it is the common machinery for lifting work in factory and warehouse and individuals.
Adavantages of KCD electric winch:
Wire Rope Fixing: No escape of wire rope from the drum by means of P.T.screw device.
Drum Transmission: The shaft direct friving drum provides rope replacement and alteration
of rotation with easy.
Electromagnetic: Designed for both static and dynamic loading. Brake will automatically apply
in the event of power cut.Large friction surface area. No adjustments or serving requirement.
Gear Box: Provides strength.durability and non-worry of breakage of structure.
Special Motor: Insulated B,with the features of big start torque,small inertia,lower temperature
rise,it can work frequenntly for a long time.
Driving Gear: The heat treated gear with bearings features durable performance and anti-wear.
Machine Fixture: It is made of super armor plate.used for suspender,lifter and girder.
| Model | KCD-300~600kg | KCD-500~1000kg | KCD-750~1500kg | KCD-1~2T |
| Capacity | 600kg | 1000kg | 1500kg | 2000kg |
| Lifting speed | 7-14m/min | 6-12m/min 8-16m/min | 8-16m/min | 8-16m/min |
| Power | 0.6KW | 1.5KW | 2.0KW | 3.0KW |
| Motor R.P.M | 1380 | 1380 | 1380 | 1380 |
| Voltage | 380v | 380v | 380v | 380v |
| Lifting height | 60M | 1-100M | 100-150M | 100-200M |
| Wire rope type | 5.0*6*19 | D-6*19-6 | 6*19*7.7 | 6*19*10 |
| Weight | 35kg | 50kg | 60kg | 110kg |
Questions before make quotation:
1. Purpose of the winch, lifting or pulling?
2. Where will you use the winch? construction, mine or marine?
3. Capacity?
4. Rope volume?
5. Requirement for rope speed?
6. Voltage?
7. Any other specific request such as double speed, additional equipment?
The more detail, the more accurate quotation.
