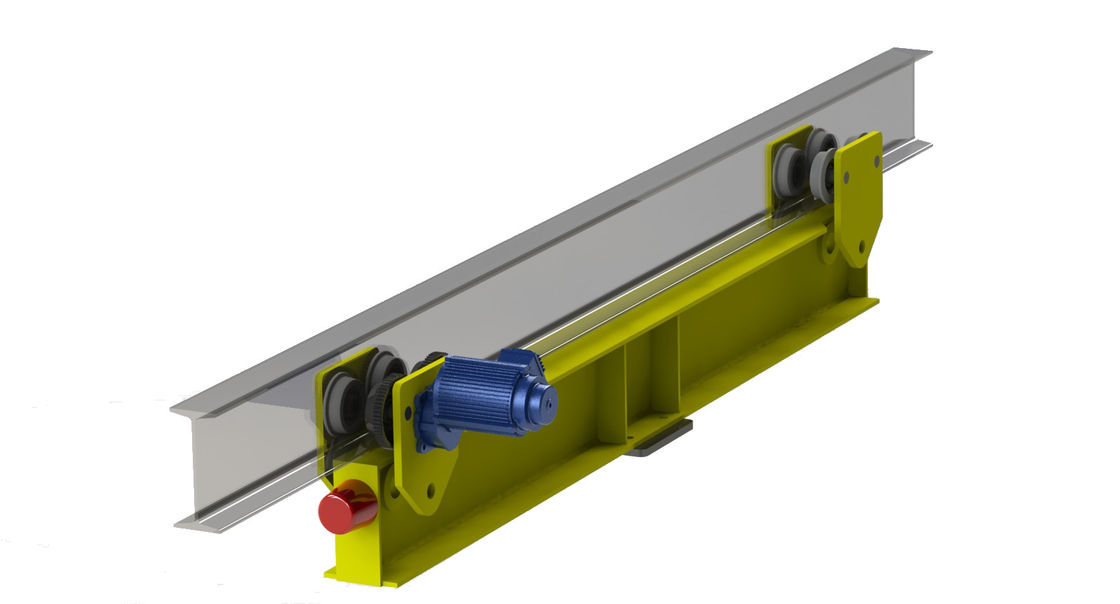

20t Suspended Overhead Bridge Crane End Carriage
  • name

20t Suspended Overhead Bridge Crane End Carriage

MOQ: 1 pair
Price: Negotiable
Standard Packaging: Plywood Case
Delivery Period: 15 to 20 days
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 100 to 200 sets per week
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JCYC/OEM
Certification
CE & ISO9001
Model Number
GL
Product:
Suspended Crane End Carriage For Suspended Overhead Bridge Crane
Other Name:
End Truck, End Beam, End Trolley Etc.
Style:
Open Gear
Capacity:
1ton To 20ton
Voltage:
220V To 690V 3P 50/60Hz
Control:
Air Operation+Ground Operation
Motor:
Three-in-one Motor
Highlight:

Overhead Bridge Crane End Carriage

,

Suspended Bridge Crane End Carriage

,

20t Overhead Crane End Carriage

Product Description

Suspended Crane End Carriage for Suspended Overhead Bridge Crane


Brief Introduction

Suspended Crane End Carriage is made from rectangular tube, transmission mechanism use gear reducer motor,
equipped with the open pinion wheel or hollow shaft wheel. Wheel tread surface heat treatment.Gear motor have Chinese brand,Taiwan brand,German nord,SEW or ABM brand. voltage from 3phase ,220v-600v, 50hz/60hz.
Travel speed from 10m/min to 40m/min.Wheel material is 42CrMo, ductile iron, or Si-Mn alloy steel.Only need to weld the main beam and end beam after correction.

Technical parameters


Model Crane Wheel/Motor Traveling speed
(m/min)		 A
(mm)		 B
(mm)		 C
(mm)		 D
(mm)		 E
(mm)
UR2-12 1t/2t-7.5m 90*8/0.3KW*2 16 1200 1000 260 340 110-130
UR2-15 1t/2t-11.5m 90*8/0.3KW*2 16 1500 1300 260 340 110-130
UR2-18 1t/2t-16.5m 90*8/0.3KW*2 16 1800 1600 260 340 110-130
UR5-15 3t/5t-7.5m 120*8/0.4KW*2 16 1500 1200 360 580 122-142
UR5-18 3t/5t-11.5m 120*8/0.4KW*2 16 1800 1500 360 580 122-142
UR5-22 3t/5t-16.5m 120*8/0.4KW*2 16 2200 1900 360 580 122-142


Four types of Bridge Crane End Carriage

1.Single girder end carriage
Single Girder End Carriage is suitable for Crane with Capacity less than 32 tons. Its structure is simple, and its maintenance is convenient. It has two high torque driving motors, which is suitable for most of the use environment.

2.Double girder end carriage
Double Girder is suitable for double girder cranes. The rated load is greater, and it is used in high load environment. It has a traveling wheel installed, running smoothly, and having less noise.

3.Undehung end carriage
Undehang End Carriage is used in Suspended cranes, compared to ordinary End Carriage, and its wheels are specially designed for suspension, and its weight is lighter.

4.Double track power trolley
Double Track Power Trolley has a larger capacity and more than 50T. Two high torque crane motor are used in double beam driving.

Those four types of end carriage suitable for a variety of working conditions, including factories, workshops, outdoor, warehouses, etc.
Product details:

20t Suspended Overhead Bridge Crane End Carriage 0
20t Suspended Overhead Bridge Crane End Carriage 1
