Single Girder Crane End Carriage 20t With Running Motor

Products

Single Girder Crane End Carriage 20t With Running Motor

MOQ:	1 set
Price:	Negotiable
Standard Packaging:	Plywood case
Delivery Period:	15 to 20 working days
Payment Method:	L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Capacity:	200 to 300 sets per week

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

JCYC

Certification

CE & ISO9001

Model Number

Product Name:

Single Girder Crane End Carriage

Feature:

General Single Girder Top Running End Carriage

Crane Capacity:

1t To 20t

Motor Power:

0.3-1.5kw X2

Span:

Customized

Color:

Customized

Voltage:

380V/440V/50HZ/60HZ

Highlight:

Single Girder Crane End Carriage

Crane End Carriage 20t

440V Crane End Carriage

Product Description

Single Girder Crane End Carriage 1t To 20t With Running Motor

Specification:

End carriage use rectangular steel tube manufacturing module , buffer motor drive, forged wheel, using milling of various customized machine, and disposable completes the opening , boring , milling drilling. You only need to joint crane girder and the end carriage corrected, high cost performance, so that your crane manufacturing , installation and maintenance is very easy.
A complete set of end carriage including wheels, motors, main beam connecting plates, main beam connecting bolts, stamping plates , polyurethane buffers and so on.

Product Details:

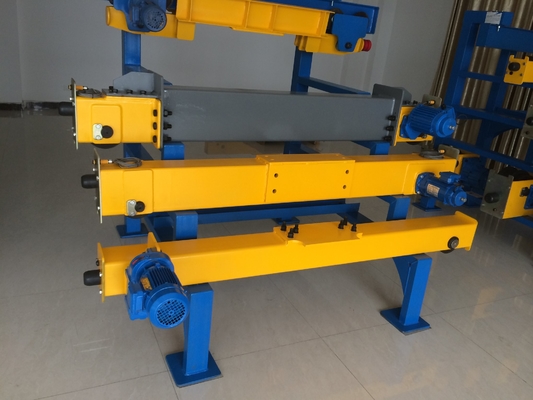

Single Girder Crane End Carriage 20t With Running Motor 0

Model	Crane	Rectangular Steel tube	Wheel Size	Motor power	S1 (mm)	S2 (mm)	W1 (mm)	W2 (mm)
GL125-15	1t-7.5m	1501506	W125*60	0.3KW*2	1500	1300	400	500
GL125-20	1t-11.5m				2000	1800	400	500
GL125-25	1t-16.5m				2500	2300	400	500
GL160-15	2t/3t-7.5m	1502008	W160*70	0.4KW*2	1500	1200	400	500
GL160-20	2t/3t-11.5m				2000	1700	400	500
GL160-25	2t/3t-16.5m				2500	2200	400	500
GL160-30	2t/3t-22.5m				3000	2700	500	600
GL160-35	2t/3t-28.5m				3500	3200	600	700
GL200-20	5t-11.5m	1502508	W200*70	0.4KW*2	2000	1700	400	500
GL200-25	5t-16.5m			0.4KW*2	2500	2200	400	500
GL200-30	5t-22.5m			0.75KW*2	3000	2700	500	600
GL200-35	5t-28.5m			0.75KW*2	3500	3200	600	700
GL250-20	10t-11.5m	2002508	W250*80	0.75KW*2	2000	1600	400	500
GL250-25A	10t-16.5m			0.75KW*2	2500	2100	500	600
GL250-30A	10t-22.5m			1.1KW*2	3000	2600	500	600
GL250-35A	10t-28.5m			1.1KW*2	3500	3100	700	800
GL250-25B	16t-16.5m	2003008	W250*80	1.1KW*2	2500	2100	600	700
GL250-30B	16t-22.5m			1.1KW*2	3000	2600	700	800
GL250-35B	16t-28.5m			1.5KW*2	3500	3100	700	800
GL315-30	20t-16.5m	2004008	W315*90	1.5KW*2	3000	2500	700	800
GL315-35	20t-22.5m	2004008	W315*90	1.5KW*2	3500	3000	700	800

Single Girder Crane End Carriage 20t With Running Motor 2
