42CrMo Wheel 40m/Min Open Gear 10t Crane End Carriage

Products

42CrMo Wheel 40m/Min Open Gear 10t Crane End Carriage

MOQ:	1 pair
Price:	Negotiable
Standard Packaging:	Plywood Case
Delivery Period:	15 to 20 days
Payment Method:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity:	100 to 200 sets per week

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

JCYC/OEM

Certification

CE & ISO9001

Model Number

Product:

1t 2t 3t 5t 10t 20t Electric Crane Used End Carriage With ISO Certificates

Other Name:

End Truck, End Beam, End Trolley Etc.

Style:

Open Gear

Capacity:

1ton To 20ton

Voltage:

220V To 690V 3P 50/60Hz

Control:

Air Operation+Ground Operation

Motor:

Three-in-one Motor

Highlight:

10t Crane End Carriage

Open Gear Crane End Carriage

42CrMo Wheel Crane End Carriage

Product Description

1t 2t 3t 5t 10t 20t Electric Crane Used End Carriage with ISO Certificates

Brief Introduction

End carriage is made of rectangular tube, transmission mechanism use gear reducer motor,
equipped with the open pinion wheel or hollow shaft wheel. Wheel tread surface heat treatment.Gear motor have Chinese brand,taiwan brand,German nord,SEW or ABM brand. voltage from 3phase ,220v-600v, 50hz/60hz.
Travel speed from 10m/min to 40m/min.Wheel material is 42CrMo, ductile iron, or Si-Mn alloy steel.Only need to weld the main beam and end beam after correction.

Main Features:

1. Low noise&good looking.
2. Travelling safe and reliable.
3. Simple and stable structure .
5. Smooth starting and stopping .
6. Electricity saving.
7. Easy maintenance .
8. Perfect exchangeability for parts .
9. Other parts to choose: Overload limiter , Limit switch (lifting and traveling) , Interlock protection device ,
Buffer ,Overhaul cage ,Rail clear plate ,Protective cover ,Bus bar preventer plate ,Anticollision
device ,Main isolating switch ,Emergency stop system ,Motor overload protection etc.

Technical parameters

Type	Crane spec.	Rectangular Steel tube	Wheel size	Motor power (20m/min)	Motor power (30m/min)	S1 (mm)	S2 (mm)	W1 (mm)	W2 (mm)
EUS90-15	1.6t-7.5m	1501506	U90*60	FA27-0.25KW	FA27-0.37KW	1500	1300	400	550
EUS90-20	1.6t-11.5m					2000	1800	400	550
EUS90-25	1.6t-16.5m					2500	2300	400	550
EUS90-30	1.6t-22.5m					3000	2800	400	550
EUS125-15	3.2t-7.5m	1502008	U125*60	FA27-0.37KW	FA27-0.55KW	1500	1300	400	550
EUS125-20	3.2t-11.5m					2000	1800	400	550
EUS125-25	3.2t-16.5m					2500	2300	400	550
EUS125-30	3.2t-22.5m					3000	2800	500	650
EUS125-35	3.2t-28.5m					3500	3300	600	750
EUS160-15	6.3t-7.5m	1502508	U160*70	FA37-0.55KW	FA37-0.75KW	1500	1200	400	550
EUS160-20	6.3t-11.5m					2000	1700	400	550
EUS160-25	6.3t-16.5m					2500	2200	400	550
EUS160-30	6.3t-22.5m					3000	2700	500	650
EUS160-35	6.3t-28.5m					3500	3200	600	750
EUS200-20	12.5t-11.5m	2002508	U200*70	FA47-0.75KW	FA47-1.1KW	2000	1700	500	650
EUS200-25	12.5t-16.5m			FA47-0.75KW		2500	2200	500	650
EUS200-30	12.5t-22.5m			FA47-1.1KW		3000	2700	600	750
EUS200-35	12.5t-28.5m			FA47-1.1KW		3500	3200	700	850
EUS250-20	16t/20t-11.5m	2003008	U250*80	FA57-1.1KW	FA57-1.5KW	2000	1600	500	650
EUS250-25	16t/20t-16.5m			FA57-1.1KW		2500	2100	600	750
EUS250-30	16t/20t-22.5m			FA57-1.5KW		3000	2600	700	850
EUS250-35	16t/20t-28.5m			FA57-1.5KW		3500	3100	700	850

Product details:

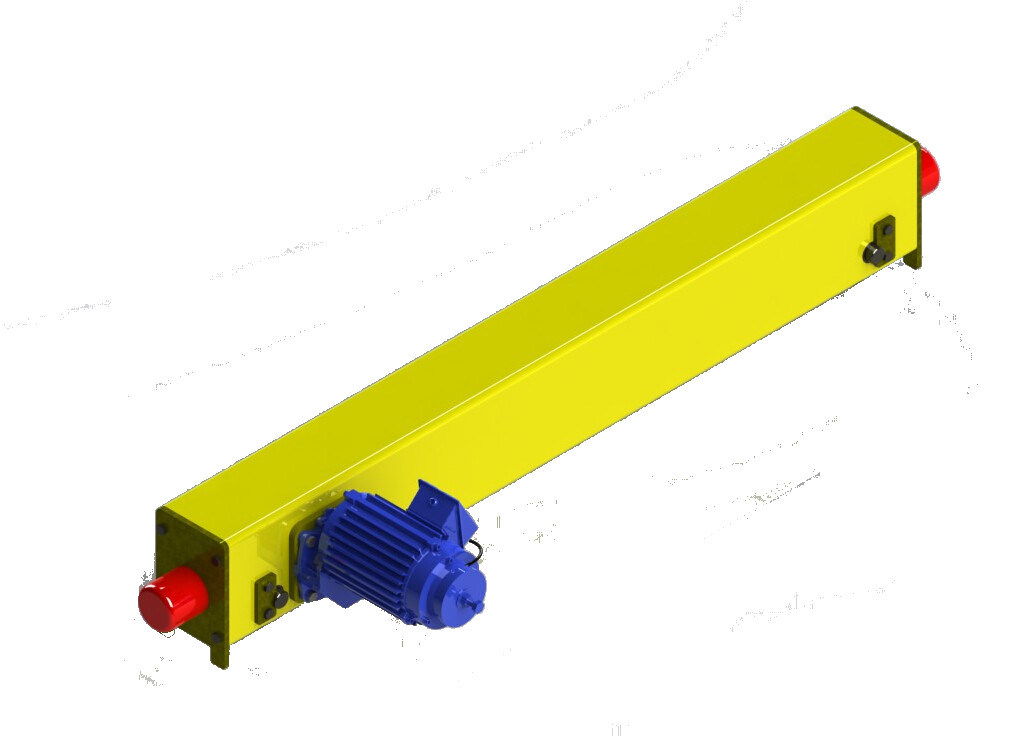

42CrMo Wheel 40m/Min Open Gear 10t Crane End Carriage 0

42CrMo Wheel 40m/Min Open Gear 10t Crane End Carriage 1
