1 Ton 2 Ton 5 Ton Eletric Chain Hoist 380V 50HZ For Lifting

Products

1 Ton 2 Ton 5 Ton Eletric Chain Hoist 380V 50HZ For Lifting

MOQ:	1 piece
Price:	$500-$10000
Standard Packaging:	Plywood Case
Delivery Period:	20-30 working day
Payment Method:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Capacity:	1000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

JCYC/OEM

Certification

CE ISO9001 manufacturing licence

Model Number

Product Name:

Eletric Chain Hoist

Capacity:

1 Ton - 35ton

Standard Lifting Height:

3/6/9/12m Or At Request

Voltage:

380V/440V

Chain:

G80 Chain

Contactor:

Schneider

Color:

As Per Your Request

Highlight:

Eletric Chain Hoist 380V 50HZ

5 Ton Eletric Chain Hoist

2 Ton Capacity Eletric Chain Hoist

Product Description

1 Ton 2Ton 5Ton Eletric Chain Hoist 380V 50HZ for Lifting

General description:

Electric Chain Hoists are designed solely for lifting. The horizontal handling can be used in conjunction with the (electrical) trolleys. The electric chain hoist can be operated as hoists mounted on static supporting structures, or they can be used as travelling hoists suspended from suitable running rails.

The electric chain hoist is available with eye, hook, trolley or electric trolley and capacities go up to 25 tons. The body of the chain host is made of aluminum, it is compact, light and robust. The transmission is very smooth, vibration free and there is a low noise.

Features and advantages:

Host boday: aluminum alloy shell, light but hard.
Motorized trolley: convenient transportation and increase transportation speed.
Hook: Japan imported FEC chain. after hot forging, it is not easy break, and the lower hook can rotate 360 degrees
Hoist motor: detect, execute or convert electromechanical signals or energy.
Electrical box: compact structure and reliable braking.
Pendant control: lightweight and durable with waterproof button switch.

Product technical data:

Model	Lifting Capacity(t)	Lifting Height(m)	Lifting Speed(m/min)	Running Speed(m/min)	Lifting Motor			Running Motor			I-Beam(mm)
Model	Lifting Capacity(t)	Lifting Height(m)	Lifting Speed(m/min)	Running Speed(m/min)	Power(kw)	R.P.M(r/min)	Power Supply	Power(kw)	R.P.M(r/min)	Power Supply	I-Beam(mm)
SY-A0.5-1	0.5	3-9	6.8	12.2	0.75	1440	220-440V 50/60HZ 3Phase	0.12	1440	220-440V 50/60HZ 3Phase	58-130
SY-A1-1	1	3-9	6.6	10/20	1.5	1440		0.4	1440		80-160
SY-A1-2	1	3-9	3.4	10/20	0.75	1440		0.4	1440		80-160
SY-A2-1	2	3-9	6.6	10/20	3.0	1440		0.4	1440		82-178
SY-A2-2	2	3-9	3.3	10/20	1.5	1440		0.4	1440		82-178
SY-A3-1	3	3-9	5.4	10/20	3.0	1440		0.4	1440		100-180
SY-A3-2	3	3-9	4.4	11/21	3.0	1440		0.4	1440		100-178
SY-A3-3	3	3-9	2.4	11/21	1.5	1440		0.4	1440		110-178
SY-A5-2	5	3-9	2.7	10/20	3.0	1440		0.75	1440		110-180
SY-A7.5-3	7.5	3-9	1.8	10/20	3*2	1440		0.75	1440		120-180
SY-A10-4	10	3-9	2.7	10/20	3*2	1440		0.75	1440		150-202
SY-A15-6	15	3-9	1.9	10/20	3*2	1440		0.75*2	1440		150-220
SY-A20-8	20	3-9	1.4	10/20	3*2	1440		0.75*2	1440		150-220
SY-A25-8	25	3-9	1.1	10/20	3*2	1440		0.75*2	1440		150-220
SY-A30-10	30	3-9	0.9	10/20	3*2	1440		0.75*2	1440		150-220
SY-A35-16	35	3-9	0.7	10/20	3*2	1440		0.75*2	1440		150-220

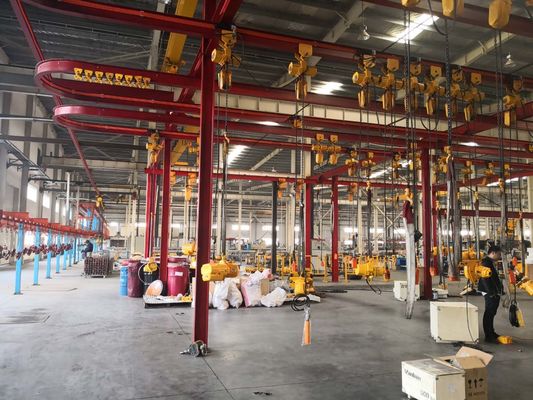

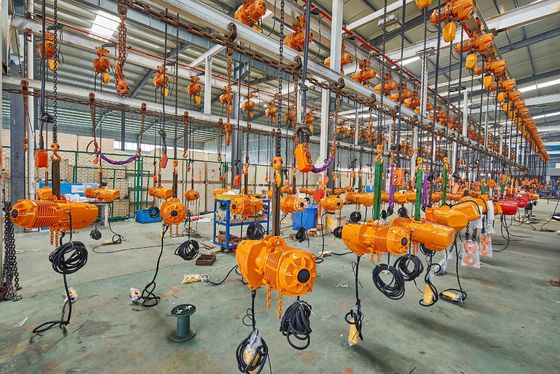

Factory show:
