1 Ton 2 Ton 3 Ton 5ton Electric Chain Hoist Hook Type One Fall Single Speed

Products

1 Ton 2 Ton 3 Ton 5ton Electric Chain Hoist Hook Type One Fall Single Speed

MOQ:	1 piece
Price:	negotiable
Standard Packaging:	Plywood Case
Delivery Period:	20-30 working day
Payment Method:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Capacity:	1000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

JCYC/OEM

Certification

CE ISO9001 manufacturing licence

Model Number

Product Name:

1 Ton 2 Ton 3 Ton 5ton Electric Chain Hoist Hook Type One Fall Single Speed

Capacity:

1-50 Ton

Standard Lifting Height:

3/6/9/12m Or At Request

Voltage:

220V-460V 50/60hz 3p

Highlight:

1 Ton FEC Eletric Chain Hoist

Eletric Chain Hoist For Lifting

ISO9001 Eletric Chain Hoist

Product Description

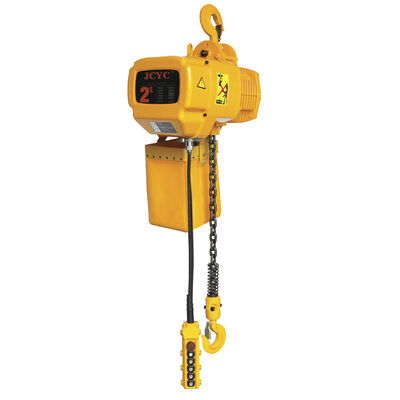

2 Ton Electric Chain Hoist Hook Type One Fall Single Speed

General description:

Electric Chain Hoists are designed solely for lifting. The horizontal handling can be used in conjunction with the (electrical) trolleys. The electric chain hoist can be operated as hoists mounted on static supporting structures, or they can be used as travelling hoists suspended from suitable running rails.

The electric chain hoist is available with eye, hook, trolley or electric trolley and capacities go up to 25 tons. The body of the chain host is made of aluminum, it is compact, light and robust. The transmission is very smooth, vibration free and there is a low noise.

Features and advantages:

Host boday: aluminum alloy shell, light but hard.
Motorized trolley(optional): convenient transportation and increase transportation speed.
Hook: Japan imported FEC chain. after hot forging, it is not easy break, and the lower hook can rotate 360 degrees
Hoist motor: detect, execute or convert electromechanical signals or energy.
Electrical box: compact structure and reliable braking.
Pendant control: lightweight and durable with waterproof button switch.

Product technical data:

Model	Lifting Capacity (t)	Lifting Height (m)	Lifting Speed (m/min)	Running Speed (m/min)	Lifting Motor		Running Motor	I-Beam (mm)
Model	Lifting Capacity (t)	Lifting Height (m)	Lifting Speed (m/min)	Running Speed (m/min)	Power (kw)	Power Supply	Power (kw)	I-Beam (mm)
SY-A0.5-1	0.5	3-9	6.8	12.2	0.75	220-440V 50/60HZ 3Phase	0.12	58-130
SY-A1-1	1	3-9	6.6	10/20	1.5		0.4	80-160
SY-A1-2	1	3-9	3.4	10/20	0.75		0.4	80-160
SY-A2-1	2	3-9	6.6	10/20	3.0		0.4	82-178
SY-A2-2	2	3-9	3.3	10/20	1.5		0.4	82-178
SY-A3-1	3	3-9	5.4	10/20	3.0		0.4	100-180
SY-A3-2	3	3-9	4.4	11/21	3.0		0.4	100-178
SY-A3-3	3	3-9	2.4	11/21	1.5		0.4	110-178
SY-A5-2	5	3-9	2.7	10/20	3.0		0.75	110-180
SY-A7.5-3	7.5	3-9	1.8	10/20	3*2		0.75	120-180
SY-A10-4	10	3-9	2.7	10/20	3*2		0.75	150-202
SY-A15-6	15	3-9	1.9	10/20	3*2		0.75*2	150-220
SY-A20-8	20	3-9	1.4	10/20	3*2		0.75*2	150-220
SY-A25-8	25	3-9	1.1	10/20	3*2		0.75*2	150-220
SY-A30-10	30	3-9	0.9	10/20	3*2		0.75*2	150-220
SY-A35-16	35	3-9	0.7	10/20	3*2		0.75*2	150-220

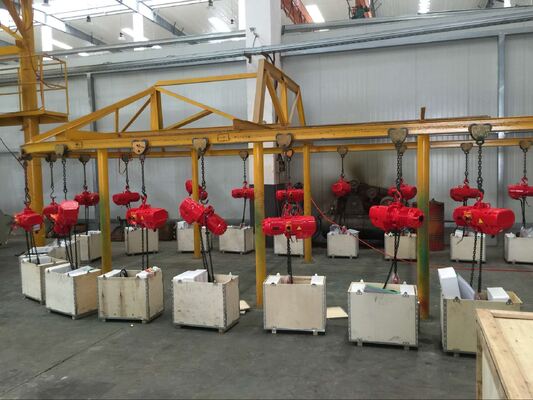

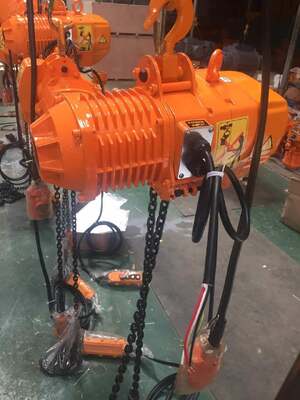

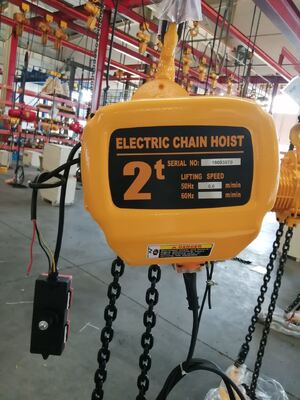

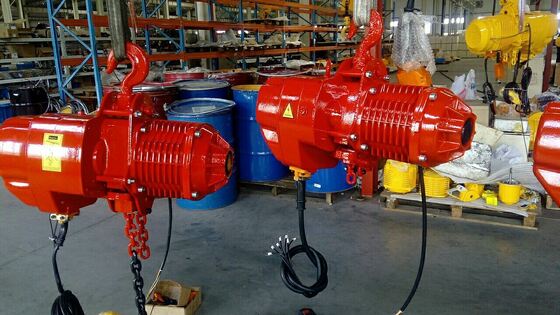

Factory show:

1 Ton 2 Ton 3 Ton 5ton Electric Chain Hoist Hook Type One Fall Single Speed 0

1 Ton 2 Ton 3 Ton 5ton Electric Chain Hoist Hook Type One Fall Single Speed 1

1 Ton 2 Ton 3 Ton 5ton Electric Chain Hoist Hook Type One Fall Single Speed 2

1 Ton 2 Ton 3 Ton 5ton Electric Chain Hoist Hook Type One Fall Single Speed 3

1 Ton 2 Ton 3 Ton 5ton Electric Chain Hoist Hook Type One Fall Single Speed 4

1 Ton 2 Ton 3 Ton 5ton Electric Chain Hoist Hook Type One Fall Single Speed 5

1 Ton 2 Ton 3 Ton 5ton Electric Chain Hoist Hook Type One Fall Single Speed 6

Exhibition

1 Ton 2 Ton 3 Ton 5ton Electric Chain Hoist Hook Type One Fall Single Speed 7
