Self Locking Bidirectional Pulling Hand Manual Winch for Goods Lifting Lowering
  • name
  • name
  • name
  • name

Self Locking Bidirectional Pulling Hand Manual Winch for Goods Lifting Lowering

MOQ: 1 piece
Price: Negotiable
Standard Packaging: standard export cases
Delivery Period: 15 to 30 working days
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 5000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
OEM
Certification
CE ISO9001 Manufactring licence
Model Number
SY-MW
Product:
Hand Winch Self-Locking Manual Winch Bidirectional Pulling Hand Manual Winch For Goods Lifting Lowering
Capacity:
600lbs To 3750lbs
Rope Length:
10m Standard Or At Your Request
Power:
Manual
Direction/speed:
Bidirectional / Single Speed
Weight:
4.31kg
Highlight:

Bidirectional Pulling Hand Manual Winch

,

Self Locking Hand Manual Winch

,

single speed Hand Manual Winch

Product Description

Hand Winch Self-Locking Manual Winch Bidirectional Pulling Hand Manual Winch for Goods Lifting Lowering





Product Description



Feature:


1. The roulette is smooth and tidy with fine workmanship for high performance according to strict rule.
2. High-temperature quenching accuracy gear can make self-locking winch easy to use in the practical life.
3. Gear box has sufficient rigidity to withstand deformation to prevent deformation.
4. Widely used for lifting and lowering goods, this hand tool can be used for multiple purposes in industry, gardening and yacht.
5. In the absence of electricity, such kind of winch can effectively play certain functions.

Specification:



Name: 1200bls(wire rope) Self locking brake HAND WINCH
weight:(single) 4.31 kg
Drum diameter * width: Φ135mm*50mm
Wire rope: Φ4.8mm*10m
Direction / speed: Bidirectional / single speed
Gear ratio: 3.5:1 or(4.1:1 customised)
Lifting capacity: 290KG / 350KG
Working load: 450KG / 540KG
Breaking strength: 680KG / 810KG
Packing number: 8 PSC
Outer box size: 42cm*32cm*33cm
The heavy box: 36.0 KG

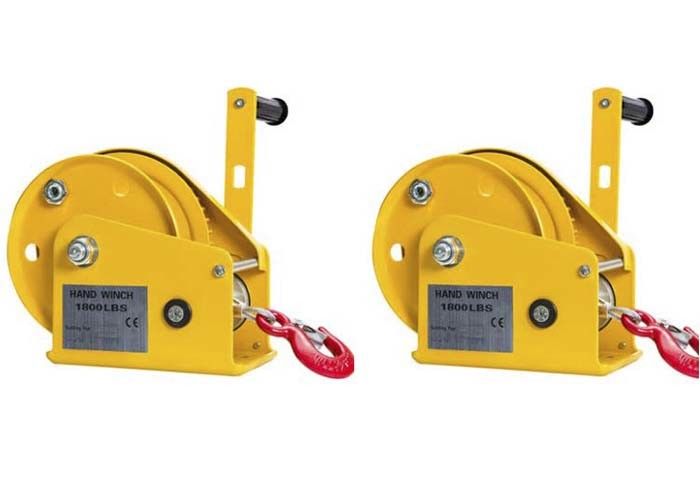

Self Locking Bidirectional Pulling Hand Manual Winch for Goods Lifting Lowering 0

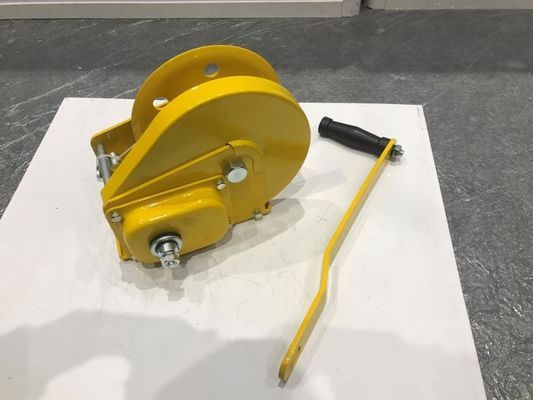

Self Locking Bidirectional Pulling Hand Manual Winch for Goods Lifting Lowering 1

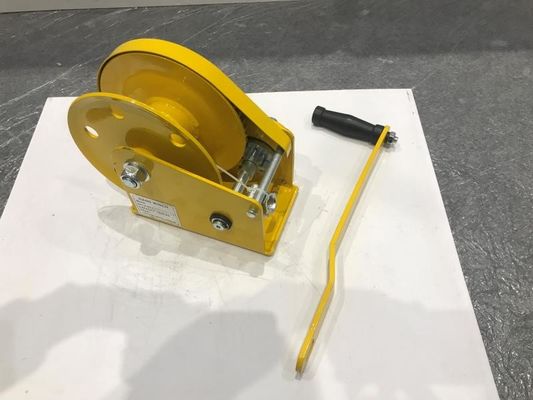

Self Locking Bidirectional Pulling Hand Manual Winch for Goods Lifting Lowering 2
