G100 Oblong Master Link Shackle with 40 T Max Capacity, High Strength Forged Carbon Steel, and 4 Times Breaking Load Limit
  • name
  • name
  • name
  • name

G100 Oblong Master Link Shackle with 40 T Max Capacity, High Strength Forged Carbon Steel, and 4 Times Breaking Load Limit

MOQ: 100 PCS
Price: Negotiable
Standard Packaging: Carton
Delivery Period: 15 to 20 working days
Payment Method: L/C,T/T,Western Union,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Capacity: 10000 pcs / week
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
JCYC
Certification
CE
Model Number
SL-R1025
Product Name:
G100 Oblong Master Link
Max. Cap:
40 T
Min Cap:
2.3 T
Material:
High Strength Forged Carbon Steel Die Forging
Chain Sling:
1 Leg Sling Or 2 Leg Slings
Breaking Load Limit:
4 Times
Highlight:

Alloy Steel G100 Master Link

,

Oblong Shackle for Construction Slings

,

G209 Hardware Rings for Lifting

Product Description

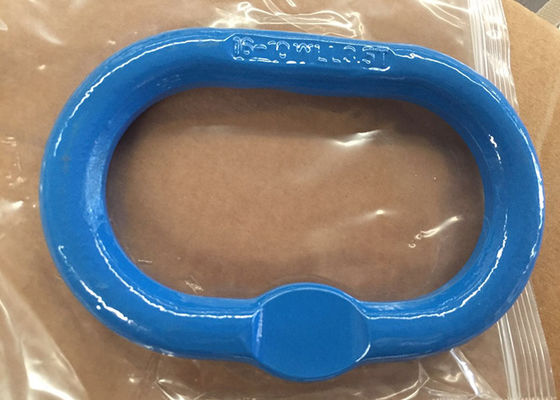

Alloy Steel Hardware Rings G100 Oblong Master Link Shackle G209
Professional-grade oblong master links designed for sling construction in industrial rigging applications.
G100 Links, Rings
Oblong master links provide the optimal design for sling construction. The oval configuration is specifically engineered for crane hooks, which typically have greater depth than width. These master links are commonly used at the end of rigging assemblies, most frequently on one end only. As the primary connection point in traditional rigging setups, the master link attaches directly to the crane hook while supporting the entire sling assembly below. These components are manufactured with oversized dimensions to accommodate large crane hooks and various connection points. Compatible with chain slings, wire rope slings, and synthetic web slings.
Product Advantages
  • Forged super alloy steel - quenched and tempered for maximum strength
  • Compatible with G100 chain systems
  • 25% stronger than standard G80 components
  • Individually proof tested at 2.5 times working load limit
  • Fatigue tested at 1.5 times working load limit for 20,000 cycles
  • 100% magnaflux crack detection for quality assurance
  • Ultimate load capacity of 4 times the working load limit
Technical Specifications
G100 Oblong Master Link Shackle with 40 T Max Capacity, High Strength Forged Carbon Steel, and 4 Times Breaking Load Limit 0
Item No. G100 Chain (mm) Weight (kg) WLL (T) Dimension A (mm) Dimension B (mm) Dimension D (mm)
SL-R1025-2.3 6+7 0.34 2.3 110 60 13
SL-R1025-3.5 8 0.53 3.5 110 60 16
SL-R1025-5 10 0.86 5 135 75 18
SL-R1025-7.6 13 1.6 7.6 160 90 23
SL-R1025-10 16 2.46 10 180 100 27
SL-R1025-14 19 4.14 14 200 110 33
SL-R1025-25.1 22 6.22 25.1 260 140 36
SL-R1025-30.8 26 12.85 30.8 340 180 45
SL-R1025-40 32 16.22 40 350 190 50
