Electromagnetic Brake Cooling Fan 1t 2t 5t 10t Electric Chain Hoist 380V

Large Image : Electromagnetic Brake Cooling Fan 1t 2t 5t 10t Electric Chain Hoist 380V

Product Details:

Place of Origin:	China
Brand Name:	JCYC
Certification:	CE&ISO
Model Number:	SK

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	$500-$10000
Packaging Details:	Plywood case
Delivery Time:	10 -15 working days
Payment Terms:	L/C,T/T,Western Union,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	500 pcs per month

Contact Now

Detailed Product Description

Product Name:	Electromagnetic Brake Cooling Fan Motor Electric Chain Hoist With Up And Down Limitation Device	Capacity::	1 Ton-10ton
Lifting Height:	3m-50m	Voltage:	220v-440v,50HZ/60HZ
Advantages:	Electromagnetic Brake	Double Speed:	Yes
Types:	Hook Suspension Type And Trolley Type	Color:	As Per Your Request
Highlight:	Electromagnetic Brake Electric Chain Hoist , 10t Electric Chain Hoist , Electric Chain Hoist 380V

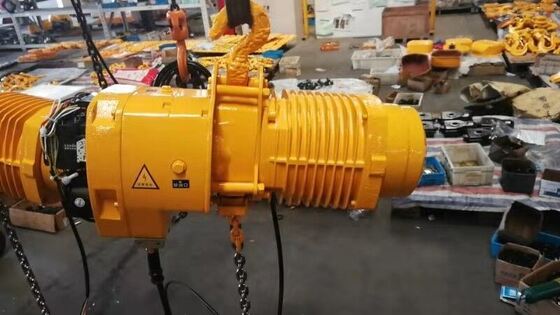

Electromagnetic Brake Cooling Fan 1t 2t 5t 10t Electric Chain Hoist 380V

Product Brief Introduction:

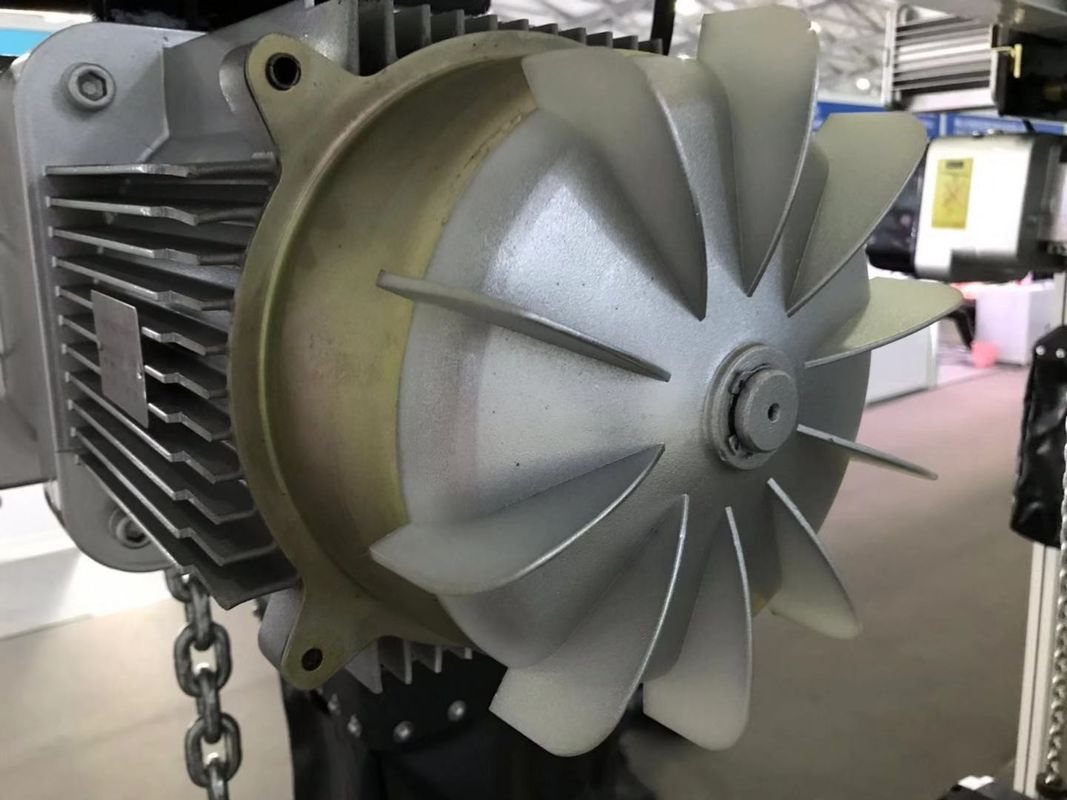

This Japanese Type Electric Chain Hoist has light aluminumalloy shell, light but hard. This 1 ton hoist's cooling fin is specially designed to ensure quick heat dissipation with the rate up to 40%.

This Hoist has magnetic braking device, it generate magnetic force to support the braking .

Our Hoist has the Japan FEC80 heat-treated steel alloy chain.

Waterproof push button is applied. It's light and durable.

Usage: Lifting, fixing, binding, traction, etc. Well accepted in various industrial fields.

Features and advantages:

The main parts of electric chain hoist adopt high quality steel product to ensure durability.
Special specifications and marks can be made according to customers' requirements.
Various lifting capacity, meet different needs.
The main body of electric chain hoist can be hanging in the I-beam to move straight or curve, or installed in the fixed bracket for lifting heavy objects.

Product technical parameters:

JCYC-SK Electric Chain Hoist
Model	Lifting Capacity(t)	Lifting Height(m)	Lifting speed(m/min)	Load chain	N.W(kg)	Lifting Motor			I-Beam(mm)
Model	Lifting Capacity(t)	Lifting Height(m)	Lifting speed(m/min)	Load chain	N.W(kg)	Power(kw)	R.P.M(r/min)	Power Supply	I-Beam(mm)
SK0.5	0.2.5	3-9	7.8	5x15	36/40	0.75	1440	220-440V 50/60HZ 3Phase	50-102
SK1-1	0.5	3-9	6.8	6.3x19	38/42	1.5	1440		68-130
SK1-2	1	3-9	3.9	8x24	40/46	0.75	1440		68-130
SK2-1	2	3-9	6.8	8x24	50/56	3.0	1440		82-153
SK2-2	2	3-9	3.4	11.2x34	98/108	1.5	1440		82-153
SK3-1	2.5	3-9	5.6	11.2x34	100/110	3.0	1440		82-153
SK3-2	3	3-9	3.4	11.2x34	105/115	3.0	1440		82-153
SK3-3	5	3-9	2.2	11.2x34	120/130	1.5	1440		110-178
SK5-2	10	3-9	2.8	11.2x34	280/300	3.0	1440		110-178

Factory show:
