20t Single Double Girder Overhead Travelling Bridge Crane in Workshop
  • name
  • name
  • name

20t Single Double Girder Overhead Travelling Bridge Crane in Workshop

MOQ: 1 set
Price: Ngotiable
Standard Packaging: Standard export packing
Delivery Period: 20 working day
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 10 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
JCYC / OEM
Certification
CE /ISO9001
Model Number
SOC
Crane Name:
0.5t To 20t Under Running Underhung Crane Overhead Travelling Crane
Capacity:
0.5t To 20t
Span:
As Per Your Request
Working Duty:
A3-A4
Lifting Height:
3-30m
Control Method:
Pendent Control Or Wireless Remote Control
Highlight:

20t Single Girder Overhead Travelling Crane

,

WorkshopOverhead Travelling Bridge Crane

Product Description

0.5t To 20t Top Running Underhung Crane Single Girder And Double Girder Overhead Travelling Bridge Crane in Workshop





1. Product description



Suspension crane is a kind of small and lightweight overhead crane, also known as under running crane or underhung crane. It is widely applied in workshop of production and assembly lines, warehouse and other places to lift and move heavy loads. The underhung crane, as its name implies, is suspended from building roof structure and runs at the bottom flange of runway beam.



Single girder suspension crane is designed and manufactured in strict accordance with industrial standard JB2603-94, usually equipped with CD/MD electric wire rope hoists or SY electric chain hoist. Due to its distinct structure, the under running overhead crane usually comes in single girder design, thus it cannot lift a considerable amount of weight. The capacity ranges from 0.5 ton to 10 ton, the span of is 3-22.5m, working classification is A3-A4.



2. Benefits of employing a suspension crane:




* It is a perfect solution for facilities where the building height is an issue or there are no supporting columns.

* The construction of underhung crane does not require any building column or engineered column.

* It has compact structure and strong rigidity.

* The crane hanging from building ceiling helps increase lifting height within the limited building space.

* The underhung crane will make the most of building space as it can maximally approach the building wall.

* It generates low noise and little pollution during lifting operations.

* It has less tracking problems than a top running overhead crane.





3. Technical parameter:



Mechanism item   Data
Lifting capacity ton 0.5-20 ton
Lifting height m 3-30m
Span m 3-16m
Lifting speed m/min 0.8/8
Working system   A4-A6
Travelling speed m/min 2-30m/min
Power source   AC 50/60HZ 220V-480V 3P customized
Working environment temperature   -25ºC~+40ºC





4. Questions before making quotation:



1. The lifting capacity?

2. The span of main girder?

3. The lifting height?

4. Single speed or doulbe speed of lifting?

5. Pendant control or remote control?

6. Power supply?(volt./3p/hz)

7. Any other special requirements?

That will be much helpful if you can supply drawing to us.

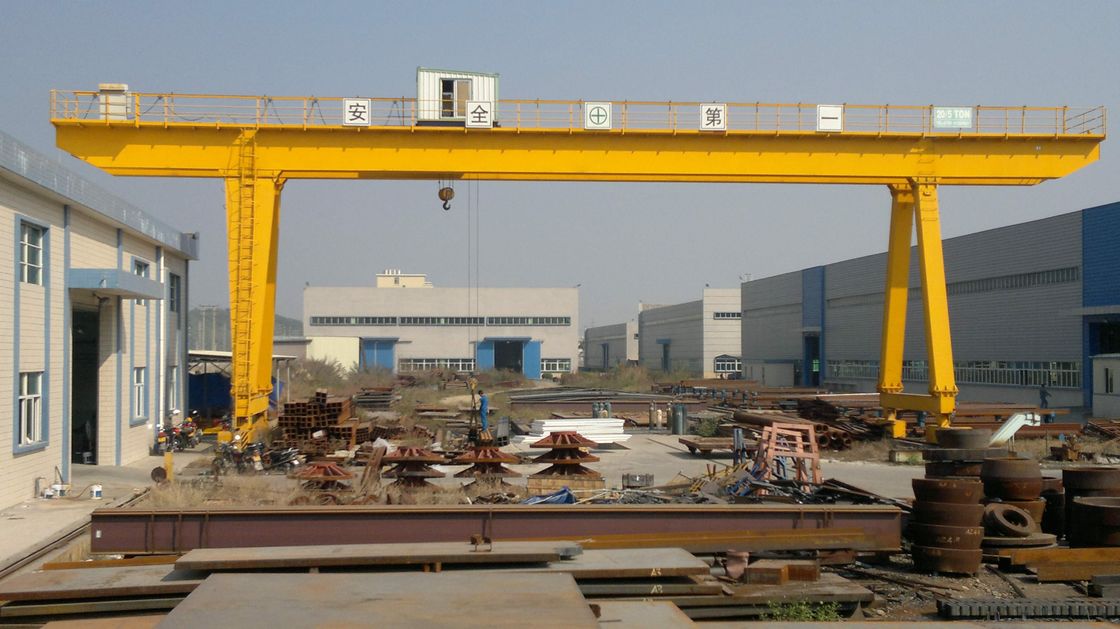

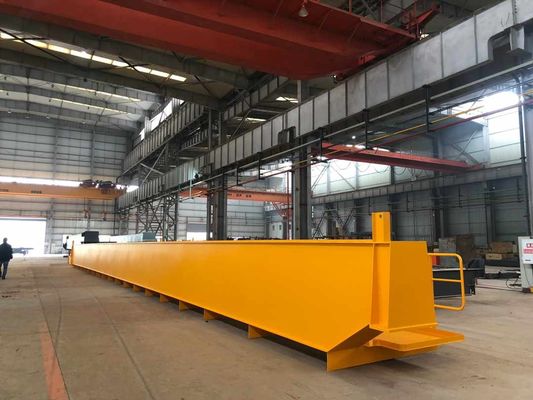

5. Product show



20t Single Double Girder Overhead Travelling Bridge Crane in Workshop 0
