Weight Lifting 3 Phase Crane 3m Electric Chain Hoist

Products

Weight Lifting 3 Phase Crane 3m Electric Chain Hoist

MOQ:	1 unit
Price:	USD negotiate per unit
Standard Packaging:	Plywood case
Delivery Period:	10 -15 working days
Payment Method:	L/C, T/T, Western Union
Supply Capacity:	500 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

JCYC

Certification

CE&ISO

Model Number

Name:

JCYC 2ton Weight Lifting Tool 3m 200V-440V 3Phase Crane Electric Chain Winch Hoist

Rated Load:

0.25ton To 5ton

Chain Length:

Standard 3m

Usage:

Construction Hoist

Power Supply:

220v-380v 3p

Brand:

JCYC

OEM:

Available

Highlight:

3m Electric Chain Hoist

3 Phase Construction Hoist

Product Description

JCYC 2ton Weight Lifting Tool 3m 200V-440V 3Phase Crane Electric Chain Winch Hoist

Product description:

JCYC 2ton Weight Lifting Tool 3m 200V-440V 3Phase Crane Electric Chain Winch Hoist is the lightest hoist of chain hoist series. We have different optional configurations for you to choose: fixed, movable, low clearance, single-speed, double-speed etc.

The standard voltage is 380V 50Hz 3-Phase, but voltages from 220V~440V are all available, the 60Hz version is also provided and we have 1-Phase motors for customers.

Electric chain hoist is provided with an independent gearbox system with all gears oil immersed in a compact gearbox case, thus greatly reducing noise and prolonging service life of gears. The electric motor and circuit system feature great sealing and reliable insulation, and enjoy overload protection and motor thermal protection.

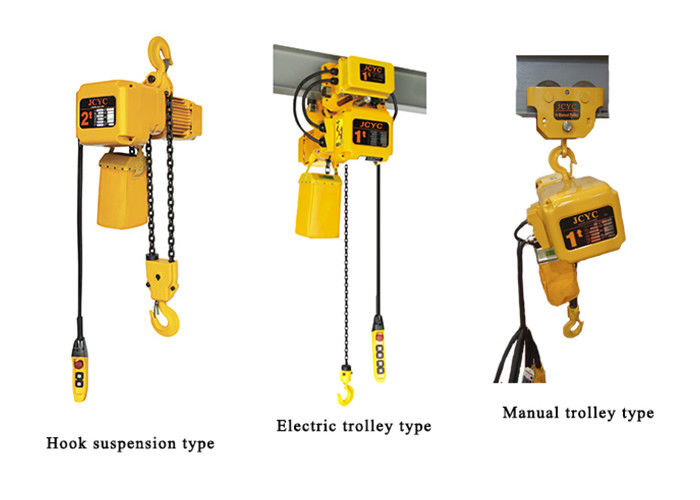

Electric chain hoist can be mounted on joist steel, curve rail and arm crane as well as on manual monorail trolley and electric monorail trolley for lifting heavy objects. In addition, the chain hoisting equipment can be fitted with wireless remote control device, enable it to be used in the environment where is harmful to the operator.

Product technical parameters:

Technical Data(single speed)

Model	SK0.25	SK0.5	SK1.0	SK1.5	SK2.0-1	SK2.0-2	SK2.5	SK3.0-1	SK3.0-2	SK5.0
Capacity(ton)	0.25	0.5	1.0	1.5	2.0	2.0	2.5	3.0	3.0	5.0
Lifting speed(m/min)	9.2	8.3	6.3	8.5	6.9	3.2	6.6	6.6	4.2	3.3
Motor power(kw)	0.56	0.9	1.5	3.0	3.0	1.5	3.0	3.0	3.0	3.0
Rotation speed(r/min)	1440
Insulation grade	F
Power supply	3-phase/220V-380V
Control voltage	24V/36V/48V
No. of load chain	1	1	1	1	1	2	1	1	2	2
Spec. of load chain	4.0mm	6.3mm	7.1mm	10.0mm	10mm	7.1mm	11.2mm	11.2mm	10mm	11.2mm

Technical Data(frequency transformer)

Model	SK0.25	SK0.5	SK1.0	SK1.5	SK2.0-1	SK2.0-2	SK2.5	SK3.0-1	SK3.0-2	SK5.0
Capacity(ton)	0.25	0.5	1.0	1.5	2.0	2.0	2.5	3.0	3.0	5.0
Lifting speed(m/min)	0.92-9.2	0.83-8.3	0.83-8.3	0.85-8.5	0.69-6.9	0.32-3.2	0.66-6.6	0.66-6.6	0.42-4.2	0.33-3.3
Motor power(kw)	0.56	0.9	1.5	3.0	3.0	1.5	3.0	3.0	3.0	3.0
Rotation speed(r/min)	1440
Insulation grade	F
Power supply	3-phase/220V-380V
Control voltage	24V/36V/48V
No. of load chain	1	1	1	1	1	2	1	1	2	2
Spec. of load chain	4.0mm	6.3mm	7.1mm	10.0mm	10mm	7.1mm	11.2mm	11.2mm	10mm	11.2mm

SK chain hoist dimensions:

Product show:
