3 Phase Single Drum Mining Heavy Duty Anchor Winch
  • name
  • name
  • name

3 Phase Single Drum Mining Heavy Duty Anchor Winch

MOQ: 1 set
Price: Negotiable
Standard Packaging: Standard export wooden cases
Delivery Period: 15 to 30 working days
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 200 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JCYC
Certification
CE & ISO
Model Number
JM/JK
Product Name:
Electric Winch
Application:
Mining, Construction, Marine, Hydropower Station Etc.
OEM:
Yes
Lifting Speed:
Low &High Speed
Color:
As Per Request
Phase:
3 Phase
Highlight:

electric davit winch

,

electric pulling winch

Product Description

Mining Heavy Duty Anchor Winch Single Drum Rope Electric Wire Rope Winch Factory



Product brief introduction:



JM/JK winch is mainly used for hoisting, pulling and unloading, towing heavy objects, such as various large and medium-sized concrete, steel structures and mechanical equipment installation and disassembly.The winch can be lifted vertically, horizontally or tilted. It can be used alone or as a component in machines such as lifting, road construction and mine lifting. Mainly used in construction, mining area lifting, small-scale equipment installation and material upgrading of civil construction and construction of the factory.



Product advantages:



1. If you have specific requirements, we will actively discuss the details and implementable solutions with you, and then produce high quality products for you.

2. The company has professional engineers. When you have only ideas, you can develop a complete set of system products for your reference and choice.

3. The company has professional business staff to answer your questions online 24 hours a day.

4. The after-sales service system is perfect, and solve problems for you in time.

5. If you have installation requirements, we have a dedicated engineer to provide you with overseas guidance installation services.



Technical Parameters:



Model Cable rated pull(kg) Cable rated speed(m/min) Wire rope dia. (Φmm) Wire rope length(m) Drum(mm) Dia(Φ) Motor power(kw)
JK0.5 500 20/30 Φ7.7 50/120 Φ140*300 2.2
JK1 1000 20/30 Φ9.3 70/120 Φ165*415 5.5/7.5
JK1.5 1500 20/30 Φ12.5 80/180 Φ219*450 11/15
JK2 2000 20/30 Φ12.5 80/180 Φ219*480 11/15
JK3 3000 20/30 Φ15.5 100/200 Φ219*525 15/18.5
JK5 5000 20/30 Φ21.5 100/200 Φ325*620 22/30
JK8 8000 20 Φ26 300 Φ500*900 30
JK10 10000 19 Φ30 450 Φ550*1000 45



Model Cable rated pull(kg) Cable rated speed(m/min) Wire rope (Φmm) Wire rope length(m) Drum(mm) Dia(Φ) Motor power(kw)
JM0.5 500 15 Φ7.7 50/120 Φ140*300 2.2
JM1 1000 15 Φ9.3 70/120 Φ165*415 5.5
JM1.5 1500 15 Φ12.5 80/180 Φ219*450 7.5
JM2 2000 15 Φ12.5 80/180 Φ219*480 7.5
JM3 3000 15 Φ15.5 100/200 Φ219*525 11
JM5 5000 9 Φ19.5 250 Φ325*620 11
JM8 8000 9 Φ26 300 Φ406*808 15
JM10 10000 9 Φ30 350 Φ406*900 22
JM16 16000 9 Φ38 400 Φ550*1000 37
JM20 20000 9 Φ42 450 Φ650*1300 45
JM30 30000 9 Φ54 450 Φ900*1500 63

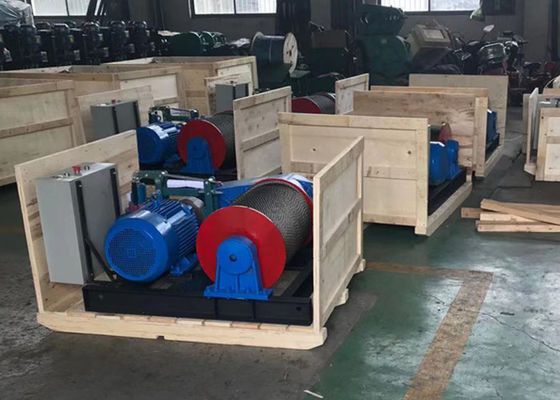

Factroy show:



3 Phase Single Drum Mining Heavy Duty Anchor Winch 0
