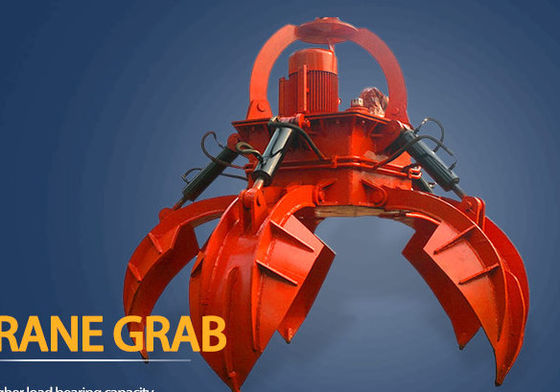

Material Handling 50T Clamshell Hydraulic Grab Bucket

Products

Material Handling 50T Clamshell Hydraulic Grab Bucket

MOQ:	1 set
Price:	Negotiable
Standard Packaging:	Standard export packages
Delivery Period:	20 to 30 working days
Payment Method:	L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Capacity:	20 sets per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Certification

CE ISO

Model Number

LS, LX, LD

Grab Type:

Clamshell Grab

Grab Volume:

0.3 - 10 M³

Application::

Material Handling

Color:

As Per Request

Crane Capacity:

Up To 50T

Highlight:

horizontal lifting clamp

horizontal plate clamp

Product Description

Industrial Use Hydraulic Grab Bucket Clamshell Grab For Water Conservancy Project

Brief Introduction

Industrial Use Hydraulic Grab Bucket Clamshell Grab include four-petal grabs, six-petal grabs, eight-petal grabs, and there are five types, which are single rope, double rope, four rope, motor, and hydraulic.
Clamshell grab is suitable for materials with harsh environment, irregular and difficult handling materials. Such as garbage, ore, scrap steel, aluminum ingots, limestone, gravel and other materials for loading and unloading and transfer. The grab has been widely used in dumps, scrap yards, ports, mines, railways. (Motor grab cannot be launched in water)

Technical Parameters

Two rope, four rope multi-lobed grab technical parameter table (LS two rope grab, L4 four rope grab)

Model	Grab volume m³	Grab type	Material ratio t/m³	Grab capacity T	Crane capacity T	Grab weight T	Grab height m
LS1	0.5	heavy	1.2-2	1.3	3	1.4	1800
LS2	0.75	heavy	1.2-2	1.9	5	2.1	2310
LS3	1	heavy	1.2-2	2.2	5	2.6	2620
LS4	1.5	middle	1.6	2.4	5	2.6	2965
LS5	1.5	heavy	3	4.5	10	4.8	2965
LS6	2	heavy	1.2-2	3.2	10	4.9	3100
LS7	3	middle	1.6	4.8	10	4.7	3700
LS8	5	light	1	5	10	4.5	4900
L4.1	0.5	heavy	1.2-2	1.3	3	1.4	1800
L4.2	0.75	heavy	1.2-2	1.9	5	2.1	2310
L4.3	1	heavy	1.2-2	2.2	5	2.6	2620
L4.4	1.5	middle	1.6	2.4	5	2.6	2965
L4.5	1.5	heavy	3	4.5	10	4.8	2965
L4.6	2	heavy	1.2-2	3.2	10	4.9	3100
L4.7	3	middle	1.6	4.8	10	4.7	3700
L4.8	5	light	1	5	10	4.5	4400

Technical parameters of single rope multi-lobed grab

Model	Grab volume m³	Grab type	Material ratio t/m³	Grab capacity T	Crane capacity T	Grab weight T	Grab height m
LX1	0.5	heavy	2.6	1.3	3	1.1	1800
LX2	0.75	heavy	2.6	1.95	5	1.5	2100
LX3	1	heavy	2.6	2.6	5	2.3	2540
LX4	1.5	middle	1.2-2	2.1	5	2.6	2965

Technical parameter table of electric multiple flap grab

Model	Grab volume m³	Grab type	Material ratio t/m³	Grab capacity T	Crane capacity T	Grab weight T	Grab height m
LD1	0.5	heavy	2	1	3	1.5	2300
LD2	0.75	heavy	2	1.5	5	2.1	2600
LD3	1	heavy	2	2	5	2.45	2800
LD4	1.5	middle	1.6	1.6	5	2.5	3200
LD5	3	middle	1.6	1.6	10	4.6	3800

Main Features
1) Simple structure ,easy installation and maintainance.
2) Adopting advanced world famous brand components in electric parts and operation parts.
3) with the great abrasive resistance, high strength and can grab the material very well.
4) Running in a high authorization and internationalization,no pollution.
5) Widely used in Wharf, steel mills, power plants, ships, etc.
