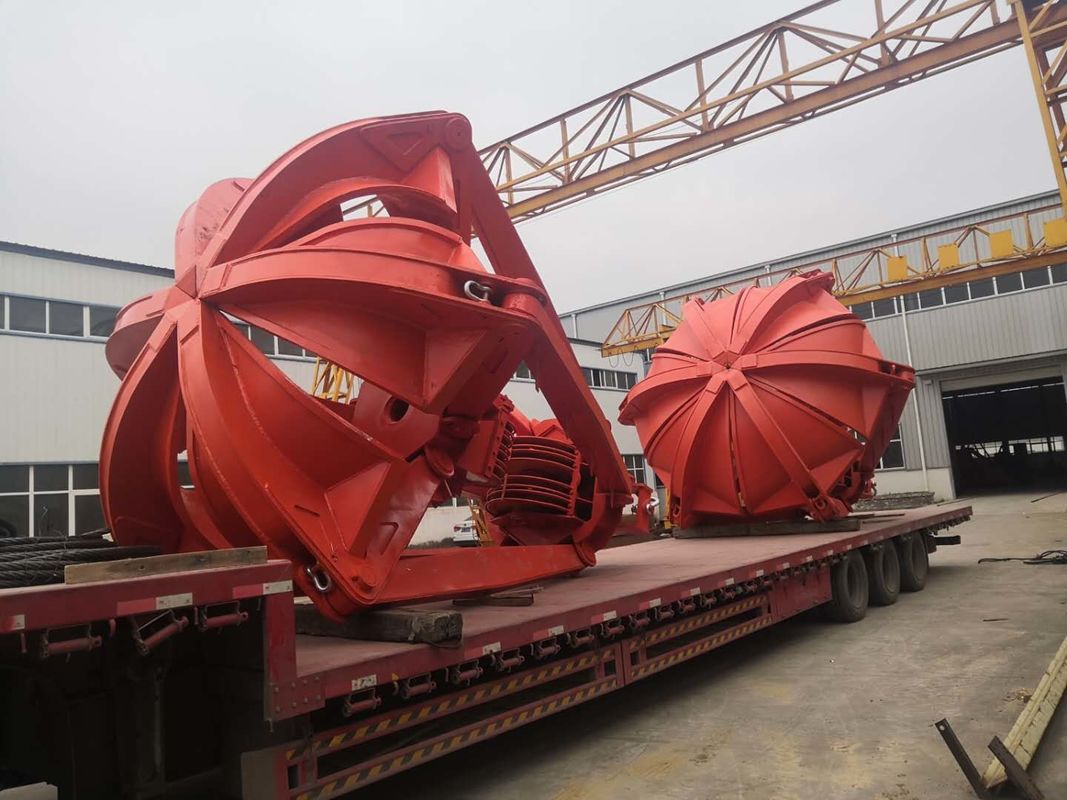

Heavy Duty Timber Grab Volume 5M³ Lifting Tools
  • name

Heavy Duty Timber Grab Volume 5M³ Lifting Tools

MOQ: 1 set
Price: negotiable
Standard Packaging: Standard export packages
Delivery Period: 20 to 30 working days
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 20 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JCYC
Certification
CE ISO
Model Number
LS, LX, LD
Product Name:
Heavry Duty Timber Grab Material Handling Tools Multi-flap Grapple
Grab Volume:
0.3 - 5 M³
Crane Capacity:
3-10 Ton
Grab Type:
Heavy, Middle And Light
Color:
Orange Or At Your Request
Package:
Naked Or Rain Cover
Highlight:

horizontal lifting clamp

,

horizontal plate clamp

Product Description

Heavry Duty Timber Grab Material Handling Tools Multi-flap Grapple





Main Features


1) Simple structure ,easy to install and maintain.
2) Adopting high quality components from famous brand of the world.
3) Great abrasive resistance, high strength and can grab the material very well.
4) Running in a high authorization and internationalization,no pollution.
5) Widely used in Wharf, steel mills, power plants, ships, etc.



Technical Parameters



Two rope, four rope multi-lobed grab technical parameter table (LS two rope grab, L4 four rope grab)

Model Grab volume m³ Grab type Material ratio t/m³ Grab capacity T Crane capacity T Grab weight T Grab height m
LS1 0.5 heavy 1.2-2 1.3 3 1.4 1800
LS2 0.75 heavy 1.2-2 1.9 5 2.1 2310
LS3 1 heavy 1.2-2 2.2 5 2.6 2620
LS4 1.5 middle 1.6 2.4 5 2.6 2965
LS5 1.5 heavy 3 4.5 10 4.8 2965
LS6 2 heavy 1.2-2 3.2 10 4.9 3100
LS7 3 middle 1.6 4.8 10 4.7 3700
LS8 5 light 1 5 10 4.5 4900
L4.1 0.5 heavy 1.2-2 1.3 3 1.4 1800
L4.2 0.75 heavy 1.2-2 1.9 5 2.1 2310
L4.3 1 heavy 1.2-2 2.2 5 2.6 2620
L4.4 1.5 middle 1.6 2.4 5 2.6 2965
L4.5 1.5 heavy 3 4.5 10 4.8 2965
L4.6 2 heavy 1.2-2 3.2 10 4.9 3100
L4.7 3 middle 1.6 4.8 10 4.7 3700
L4.8 5 light 1 5 10 4.5 4400



Technical parameters of single rope multi-lobed grab

Model Grab volume m³ Grab type Material ratio t/m³ Grab capacity T Crane capacity T Grab weight T Grab height m
LX1 0.5 heavy 2.6 1.3 3 1.1 1800
LX2 0.75 heavy 2.6 1.95 5 1.5 2100
LX3 1 heavy 2.6 2.6 5 2.3 2540
LX4 1.5 middle 1.2-2 2.1 5 2.6 2965



Technical parameter table of electric multiple flap grab

Model Grab volume m³ Grab type Material ratio t/m³ Grab capacity T Crane capacity T Grab weight T Grab height m
LD1 0.5 heavy 2 1 3 1.5 2300
LD2 0.75 heavy 2 1.5 5 2.1 2600
LD3 1 heavy 2 2 5 2.45 2800
LD4 1.5 middle 1.6 1.6 5 2.5 3200
LD5 3 middle 1.6 1.6 10 4.6 3800





FAQ



Q: Whether you can offer customized crane?

A: Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your specific requirement. The most important thing is what specific requirement you have.



Q: Whether there is professional technician assist the installation?

A: Yes. We have professional installation teams, who have gone to many countries to assist the installation. If you need we can dispatch technician to your factory. Please tell us in advance so that we can arrange technicians.



Q: Can you help us to arrange the shipment?

A: Yes. We have professional and independent logistics & document department. They will be responsible for arranging the shippment. You need to communicate with our sales about the destination port.



Q: How can you ensure the quality?

A: Before the goods leaving from factory, every product will be tested and we will send you the quality certification to recheck. You are also warmly welcomed to come to our factory to make inspection.
