5 Ton 10 Ton Motorized Trolley Electric Wire Rope Crane Hoist

MOQ: 1 piece
Price: negotiable
Standard Packaging: Plywood Case
Delivery Period: 30 working day
Supply Capacity: 1000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JCYC
Certification
CE ISO9001 manufacturing licence
Model Number
CD1
Product Name:
5 Ton 10 Ton Motorized Trolley Electric Wire Rope Crane Hoist
Capacity:
1t-25t
Lift Height:
At Your Request
Usage:
Construction
Sling:
Wire Rope
Lifting Speed:
0.8/8 M/min
Highlight:

electric lifting hoist

,

stainless steel wire rope hoist

Product Description

5 Ton 10 Ton Motorized Trolley Electric Wire Rope Crane Hoist





Brief Introduction



CD1 MD1 Type electric wire rope hoist with capacity varied from 0.25t to 32t. It has advantages of high working efficiency, fast lifting speed, durable and easy maintenance.

Small-sized lifting equipment which can be mounted on single beam, bridge, gantry and arm cranes.

Widely used in factories, mines, harbors, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.



Technical parameters



Model Lifting Capacity(t) Lifting Speed(m/min) Running Speed(m/min) Wire Rope Type Dia. Of Wire Rope(mm) (H)Lifting Height
Power(kw) R.P.M(r/min) Power Supply
CD1-0.25 0.25 8 20 6*19 3.6 0.4 1380 220-440V 50/60HZ 3 Phase
CD1-0.5 0.5 8 20 6*37+1 4.8 0.8 1380
CD1-1 1 8 20 6*37+1 7.4 1.5 1380
CD1-2 2 8 20 6*37+1 11 3 1380
CD1-3 3 8 20 6*37+1 13 4.5 1380
CD1-5 5 8 20 6*37+1 15 7.5 1380
CD1-10 10 7 20 6*37+1 15 13 1380
CD1-16 16 3.5 20 6*37+1 15 13 1380
CD1-20 20 3.5 20 6*37+1 20 13 1380

Model Lifting Capacity(t) Lifting Speed(m/min) Running Speed(m/min) Wire Rope Type Dia. Of Wire Rope(mm) (H)Lifting Height
Power(kw) R.P.M(r/min) Power Supply
MD1-0.25 0.25 8/0.8 20 6*19 3.6 0.4 1380 220-440V 50/60HZ 3 Phase
MD1-0.5 0.5 8/0.8 20 6*37+1 4.8 0.2/0.8 1380
MD1-1 1 8/0.8 20 6*37+1 7.4 0.2/1.5 1380
MD1-2 2 8/0.8 20 6*37+1 11 0.4/3 1380
MD1-3 3 8/0.8 20 6*37+1 13 0.4/4.5 1380
MD1-5 5 8/0.8 20 6*37+1 15 0.8/7.5 1380
MD1-10 10 7/0.7 20 6*37+1 15 1.5/13 1380
MD1-16 16 3.5/0.35 20 6*37+1 15 1.5/13 1380
MD1-20 20 3.5/0.35 20 6*37+1 20 1.5/13 1380



Features and advantages



1. CD1/MD1 model can be used as a winch after slight modification.

2. Choose single or double lifting speed, even multi-speed with frequency inverters.

3. The suitable rail for low-headroom hoist is H-type rail, and I-type also is available.

4. The recommended rope reeving of the kind of hoist is 2/1, 4/2 or 4/1.

5. The normal traveling speed is 20m/min, or 12.5m/min, 16m/min, 25m/min, 32m/min by request.

6. The normal rail gauge of the double-girder hoist is 1200mm, 1500mm, 1800mm, 2100mm and 2300mm.

7. The normal traveling speed is 20m/min, or 30m/min, 45m/min by request.

8. CD1 has only a normal speed which can satisfy Normal application.

9. MD1 provides two speeds: Normal speed and Low speed. It can do precise loading and unloading, mounding of sand box, maintenance of machine tools, etc at a low speed.



Product show:

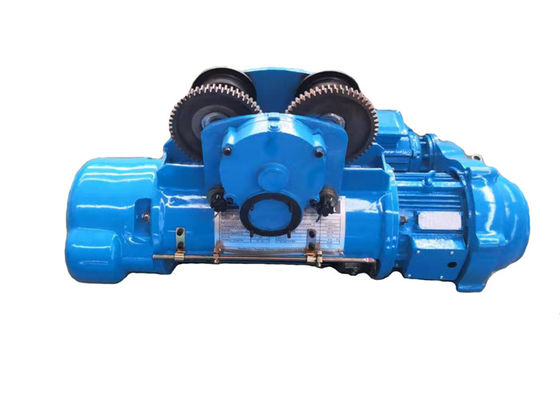

5 Ton 10 Ton Motorized Trolley Electric Wire Rope Crane Hoist 0

Tags:

electric lifting hoist,

stainless steel wire rope hoist,

wire rope crane hoist
