Product Details:
Payment & Shipping Terms:
|
| Product Name: | Mining Heavy Duty Windlass Anchor Winch Drum Electric Wire Rope Winch | Application: | Mining, Construction, Marine, Hydropower Station Etc. |
|---|---|---|---|
| OEM/ODM: | Warmly Welcomed | Lifting Speed: | Low And Fast You Choose |
| Another Name: | Winch, Windlass | Maximum Capacity: | Generally 30 Ton |
| High Light: | electric davit winch,electric pulling winch |
||

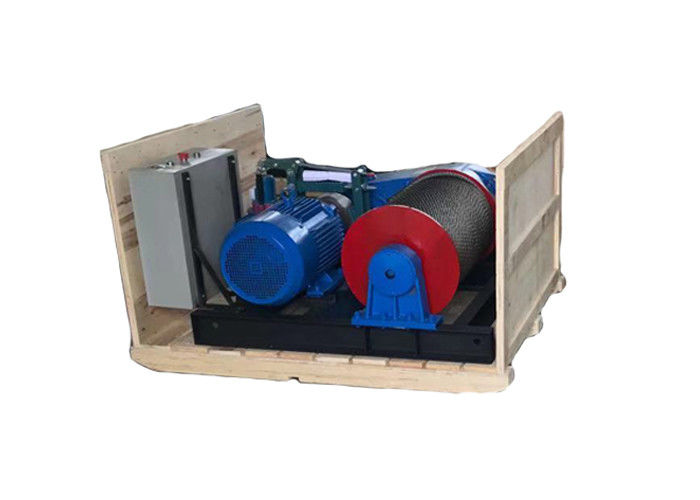

Mining Heavy Duty Windlass Anchor Winch Drum Electric Wire Rope Winch
Product brief introduction:
JM/JK winch is mainly used for hoisting, pulling and unloading, towing heavy objects, such as various large and medium-sized concrete, steel structures and mechanical equipment installation and disassembly.The winch can be lifted vertically, horizontally or tilted. It can be used alone or as a component in machines such as lifting, road construction and mine lifting. Mainly used in construction, mining area lifting, small-scale equipment installation and material upgrading of civil construction and construction of the factory.
Product advantages:
1. If you have specific requirements, we will actively discuss the details and implementable solutions with you, and then produce high quality products for you.
2. The company has professional engineers. When you have only ideas, you can develop a complete set of system products for your reference and choice.
3. The company has professional business staff to answer your questions online 24 hours a day.
4. The after-sales service system is perfect, and solve problems for you in time.
5. If you have installation requirements, we have a dedicated engineer to provide you with overseas guidance installation services.
Technical Parameters:
| Model | Cable rated pull(kg) | Cable rated speed(m/min) | Wire rope dia. (Φmm) | Wire rope length(m) | Drum(mm) Dia(Φ) | Motor power(kw) |
| JK0.5 | 500 | 20/30 | Φ7.7 | 50/120 | Φ140*300 | 2.2 |
| JK1 | 1000 | 20/30 | Φ9.3 | 70/120 | Φ165*415 | 5.5/7.5 |
| JK1.5 | 1500 | 20/30 | Φ12.5 | 80/180 | Φ219*450 | 11/15 |
| JK2 | 2000 | 20/30 | Φ12.5 | 80/180 | Φ219*480 | 11/15 |
| JK3 | 3000 | 20/30 | Φ15.5 | 100/200 | Φ219*525 | 15/18.5 |
| JK5 | 5000 | 20/30 | Φ21.5 | 100/200 | Φ325*620 | 22/30 |
| JK8 | 8000 | 20 | Φ26 | 300 | Φ500*900 | 30 |
| JK10 | 10000 | 19 | Φ30 | 450 | Φ550*1000 |
45 |
| Model | Cable rated pull(kg) | Cable rated speed(m/min) | Wire rope (Φmm) | Wire rope length(m) | Drum(mm) Dia(Φ) | Motor power(kw) |
| JM0.5 | 500 | 15 | Φ7.7 | 50/120 | Φ140*300 | 2.2 |
| JM1 | 1000 | 15 | Φ9.3 | 70/120 | Φ165*415 | 5.5 |
| JM1.5 | 1500 | 15 | Φ12.5 | 80/180 | Φ219*450 | 7.5 |
| JM2 | 2000 | 15 | Φ12.5 | 80/180 | Φ219*480 | 7.5 |
| JM3 | 3000 | 15 | Φ15.5 | 100/200 | Φ219*525 | 11 |
| JM5 | 5000 | 9 | Φ19.5 | 250 | Φ325*620 | 11 |
| JM8 | 8000 | 9 | Φ26 | 300 | Φ406*808 | 15 |
| JM10 | 10000 | 9 | Φ30 | 350 | Φ406*900 | 22 |
| JM16 | 16000 | 9 | Φ38 | 400 | Φ550*1000 | 37 |
| JM20 | 20000 | 9 | Φ42 | 450 | Φ650*1300 | 45 |
| JM30 | 30000 | 9 | Φ54 | 450 | Φ900*1500 | 63 |
Factroy show:
