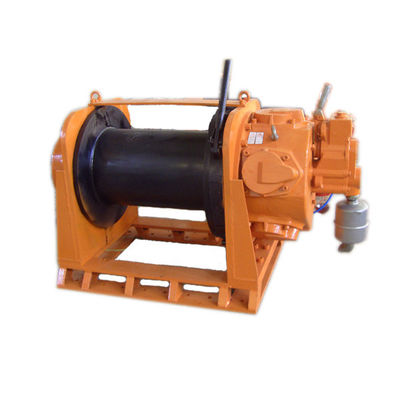

Hydraulic Electric Air Winch Heavy Duty Low Speed Wire Rope Sling Type 5T
  • name
  • name
  • name

Hydraulic Electric Air Winch Heavy Duty Low Speed Wire Rope Sling Type 5T

MOQ: 1 unit
Price: USD negotiate per unit
Standard Packaging: Plywood case
Delivery Period: 10 -15 working days
Payment Method: L/C, T/T, Western Union
Supply Capacity: 500 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JCYC
Certification
CE&ISO
Model Number
QDJC
Maximum Lifting Weight:
Alternative
Maximum Lifting Height:
Alternative
Wire Rope Diameter:
24MM
Application:
Cranes,Boat,Mining
Voltage:
380V/220-50HZ/60HZ
Color:
Alternative
Highlight:

electric davit winch

,

electric pulling winch

Product Description

Hydraulic Electric Air Winch With Heavy Duty Low Speed Wire Rope Sling Type 5T



Hydraulic Electric Air Winch model low speed wire rope electric winch has slow hoisting/pulling speed, it is used for hoisting and unloading the weight materials, such as all kinds of large and middle concrete constructure of steel, installation and disassembly of mechanical equipment. It is suitable for construction and installation engineering of constraction, mining area, factory, shipyard and so on.

The standard capacity of electric winch: 1t, 1.6t, 2t, 3.2t, 5t, 6t, 8t, 10t, 12.5t, 13.5t, 16t, 20t, 25t, 30t.

The control models: Hand wheel switch or control box with pushbuttons or remote control.







Slow speed use for crane and installation industry feature

  • Precision needle bearing used in high-load areas offering lower friction level and longer life
  • Electrical parts protected by steel box from rain
  • Emergency stop button for emergency
  • Steel boxes equip with lock to avoid other staffs in addition to operator to operate winches
  • Gear reducer driving type
  • It could lift, drag and drop vertically, obliquely
  • Rope winding orderly, safe and reliable on performance
  • The big curvature, fiber oil lubrication, galvanized cover of the wire rope extend its service life
  • Corrosion resistant painting
  • Running stably, Reliable operation with low noise (no exceed 85dB)
  • Pass 1.25 times static overload test
  •





Model Capacity
t		 Wire Rope Speed
m/min		 Rated pressure Mpa Power
kw		 Wire rope dia.
mm		 rope capacity
m		 Weight kg Packing Size
mm
QDJC-0.2 *100 0.2 100 0.69 2.7 6 70 60 500*260*280
QDJC-0.5*30 0.5 30 0.69 2.7 7.8 70 70 550*260*320
QDJC-0.5A*48 0.5 45 0.69 2.6 7.8 70 110 550*320*360
QDJC-1.0*48 1 48 0.69 3.2 11 70 130 650*360*360
QDJC-1.0A*24 1 48 0.69 4.2 11 70 160 650*380*370
QDJC-2.0*24 2 24 0.69 4.6 12 70 170 690*380*520
QDJC-3.0*16 3 16 0.69 12 16 120 450 720*400*420
QDJC-5.0*12 5 12 0.69 16 20 120 500 1300*600*620
QDJC-10.0*6 10 6 0.8 30 24 100 1150 1532*720*850
QDJC-15 *4 15 4 0.8 36 26 100 1300 1532*720*850
QDJC-20 *3 20 3 0.8 40 30 100 1550 1620*850*900
QDJC-25*3 25 3 0.8 50 32 100 1800 1650*870*950
